Fuel Pressure Sensor Replacement - Fuel Feed Pipe (FWD)

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

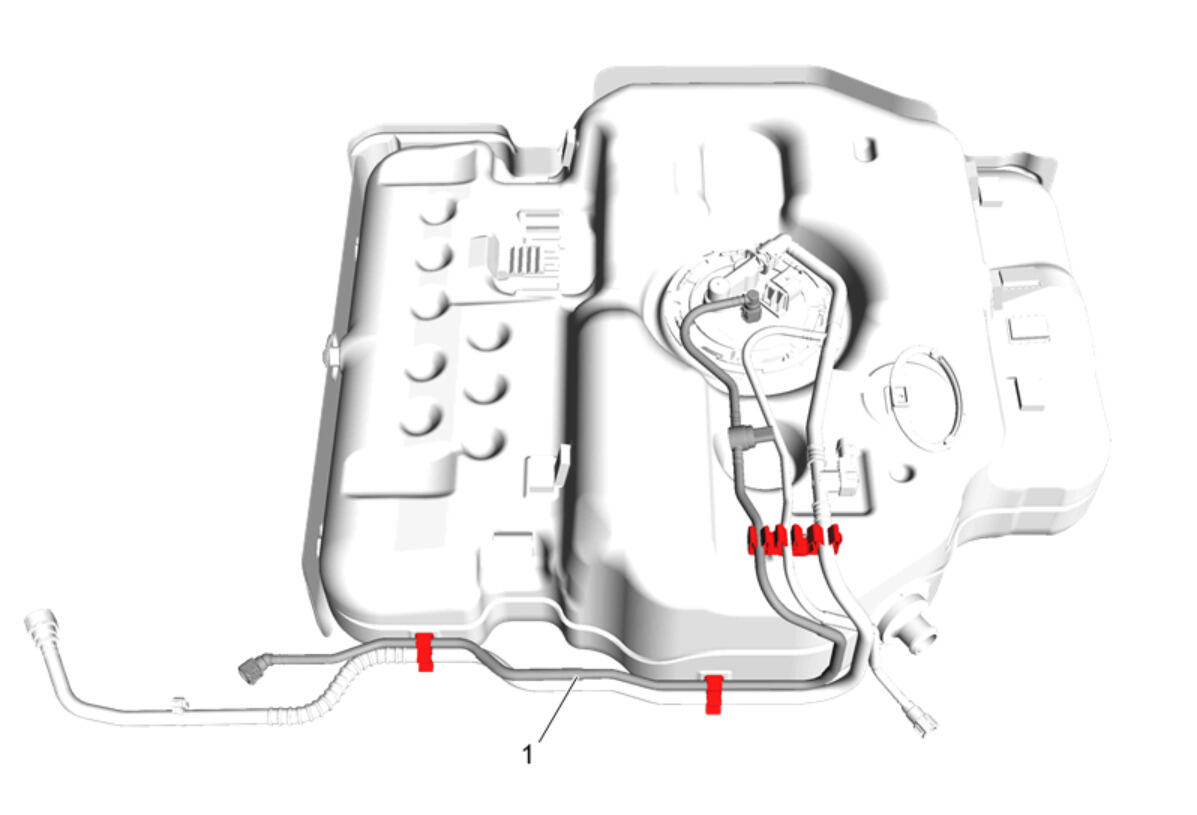

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Fuel Tank Replacement (FWD)
1	Fuel Pressure Sensor NOTE: Fuel pressure sensor is serviced as part of fuel feed pipe assembly. Procedure Disconnect the electrical connector. Disconnect the quick connect fitting and remove from the 3 retainers. Plastic Collar Quick Connect Fitting Service

Callout

Component Name

WARNING:

WARNING:

Fuel Pressure Sensor

NOTE:

Fuel pressure sensor is serviced as part of fuel feed pipe assembly.

Procedure

Disconnect the electrical connector.
Disconnect the quick connect fitting and remove from the 3 retainers. Plastic Collar Quick Connect Fitting Service
