Fuel Injector Wiring Harness Replacement

WARNING: This page is about a different variant/trim than selected.

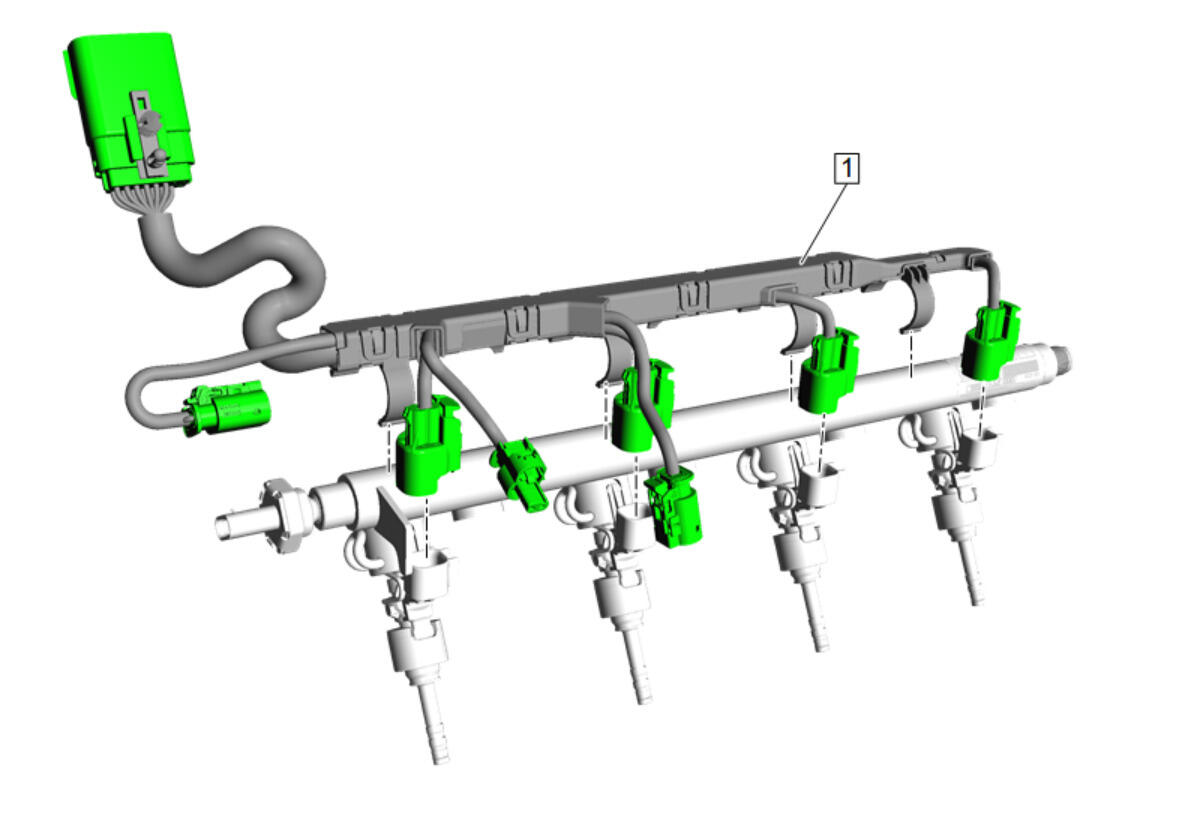

GM5063011Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Fuel Injection Fuel Rail Insulator Replacement .
1 Fuel Injection Wiring Harness

Procedure

  1. Disconnect electrical wiring harness connectors as necessary.
  2. Unsnap fuel injection wiring harness from fuel rail to remove. Snap to install.
