Fuel Feed Front Pipe Replacement
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
|
WARNING:
The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death.
WARNING:
Refer to Diesel/Gasoline Vapors Warning .
WARNING:
Refer to Safety Glasses Warning . Preliminary Procedures
|
|

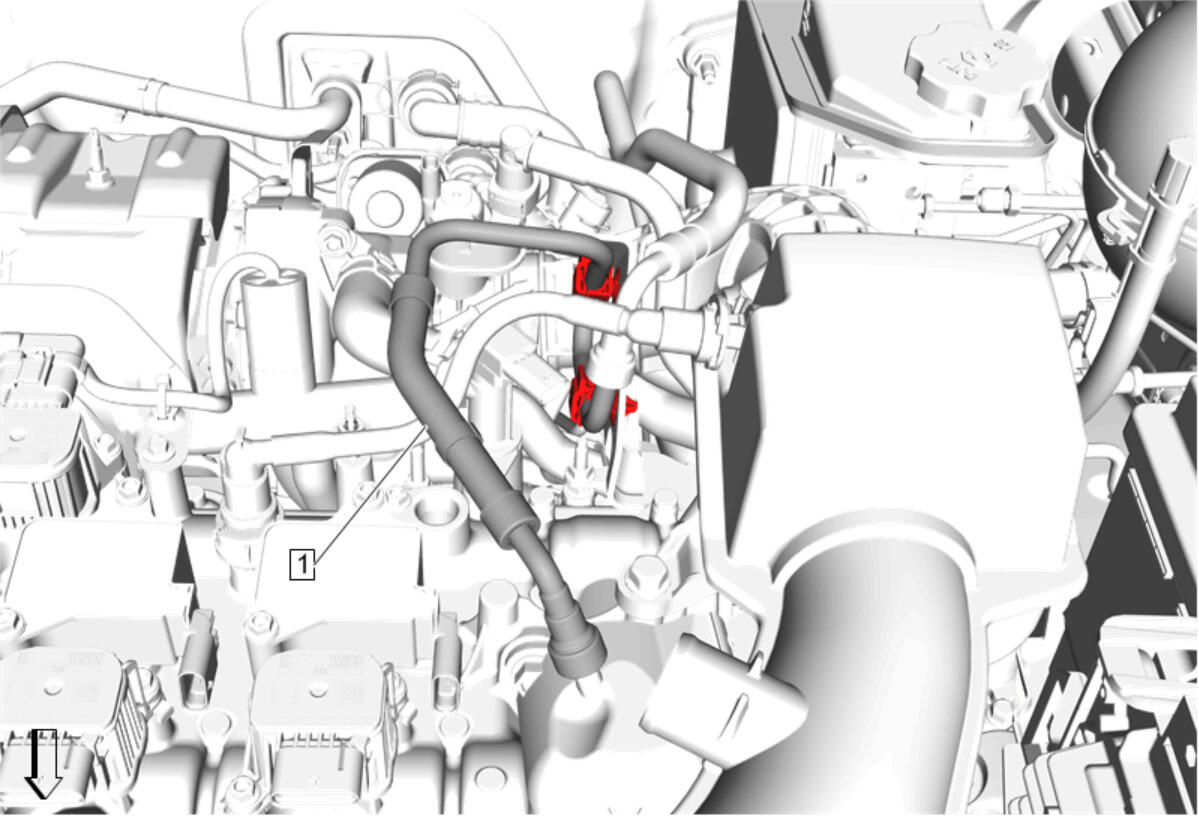

| 1 | Fuel Feed Front Pipe Procedure Disconnect quick connect fittings and remove from the 2 retainers. Metal Collar Quick Connect Fitting Service |
