Exhaust Camshaft Profile Sleeve Position Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

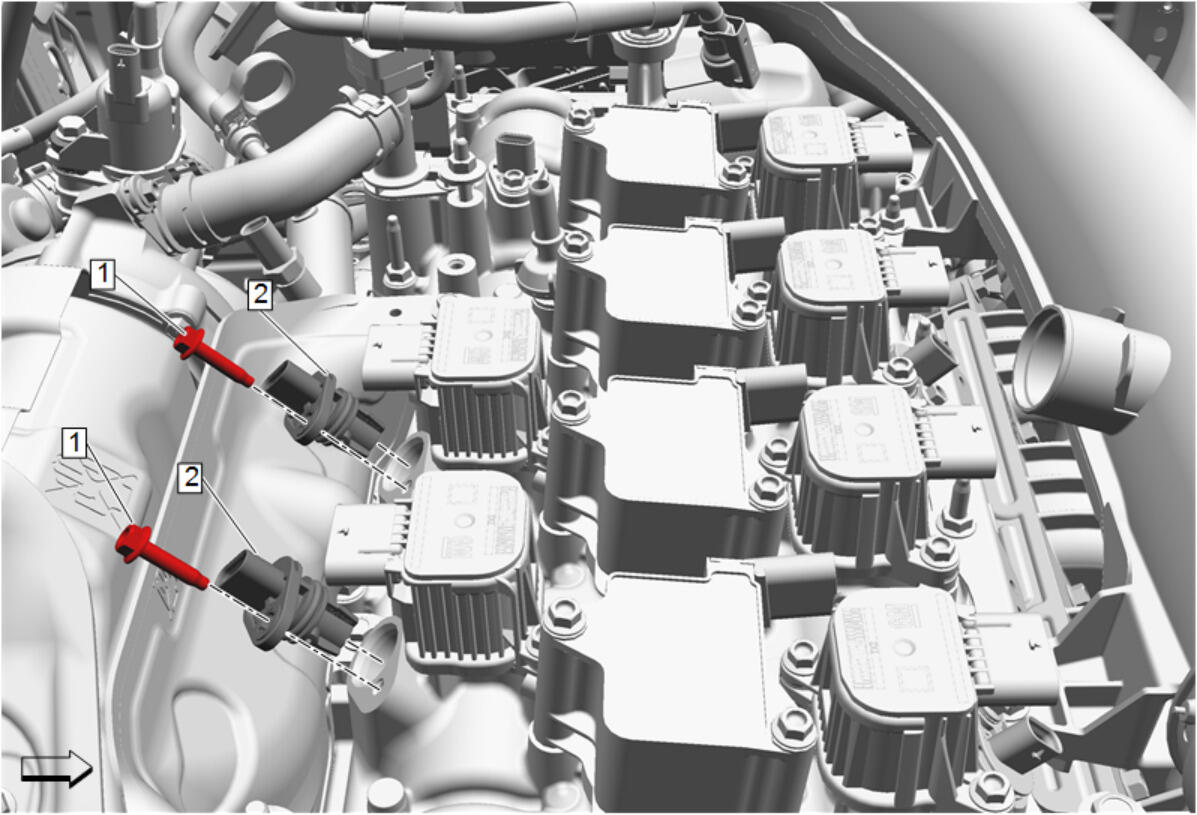

Callout	Component Name
Preliminary Procedures Air Cleaner Outlet Resonator Replacement Disconnect and reposition the camshaft position actuator - exhaust wiring harness connectors. Camshaft Position Actuator Replacement - Exhaust
1	Camshaft Exhaust Lobe Sensor Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 8.5 N.m (75 lb in)
2	Camshaft Exhaust Lobe Sensor [2x] Procedure Disconnect the camshaft exhaust lobe sensor electrical wiring harness connectors.

Callout

Component Name

Preliminary Procedures

Air Cleaner Outlet Resonator Replacement
Disconnect and reposition the camshaft position actuator - exhaust wiring harness connectors. Camshaft Position Actuator Replacement - Exhaust

Camshaft Exhaust Lobe Sensor Bolt [2x]

CAUTION:

Tighten
8.5 N.m (75 lb in)

Camshaft Exhaust Lobe Sensor [2x]
Procedure
Disconnect the camshaft exhaust lobe sensor electrical wiring harness connectors.
