Evaporative Emission Canister Vent Hose Replacement (At Tank AWD)
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Diesel/Gasoline Vapors Warning .
WARNING:
Preliminary Procedure Fuel Tank Replacement (AWD) Refer to Safety Glasses Warning . |
|

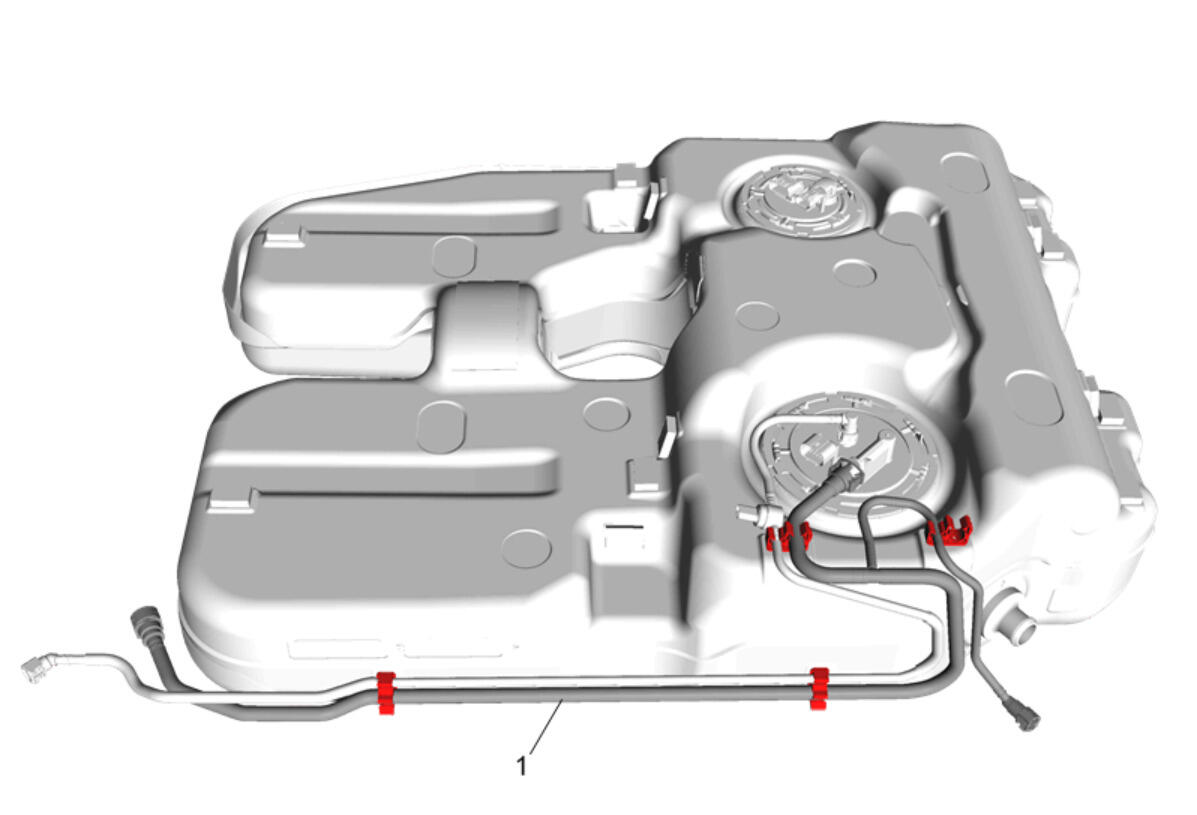

| 1 | Evaporative Emission Canister Vent Hose Procedure Disconnect the quick connect fitting and remove from the 4 retainers. Plastic Collar Quick Connect Fitting Service |
