Evaporative Emission Canister Replacement (AWD)

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

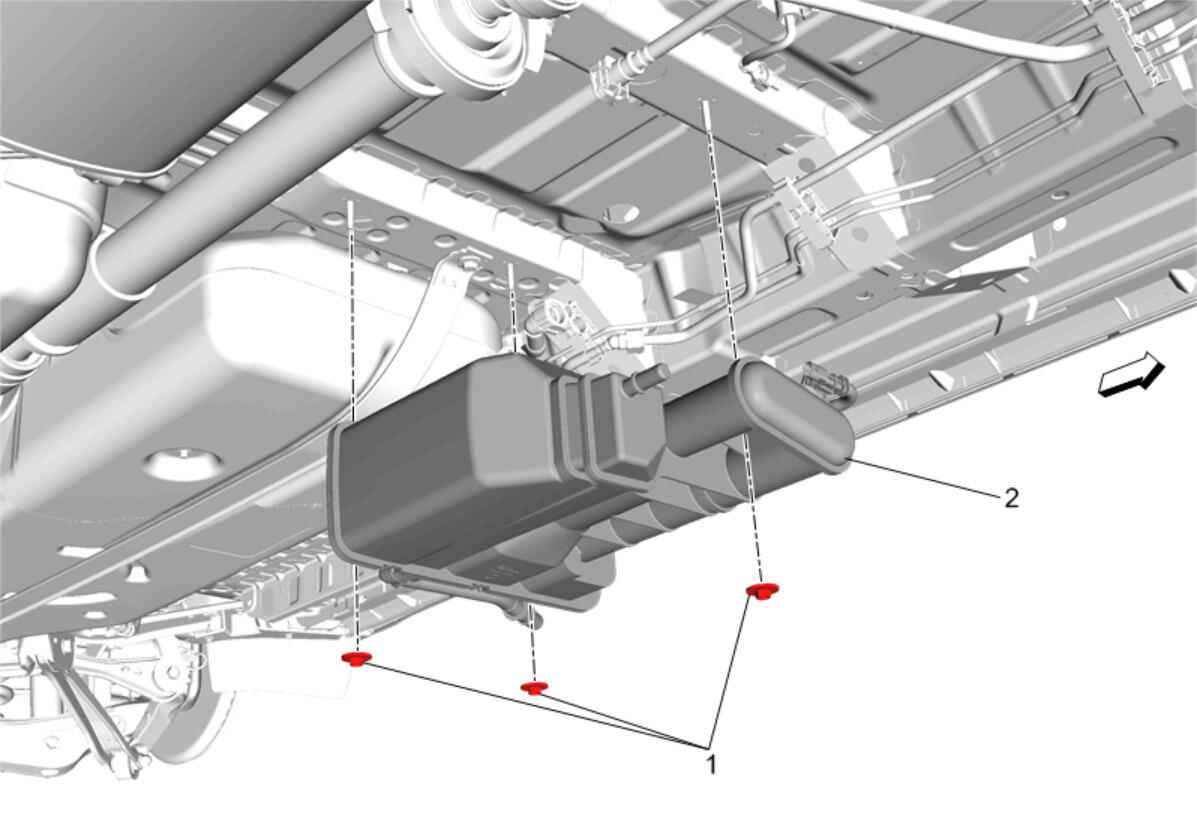

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle
1	Evaporative Emission Canister Nut [3x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Evaporative Emission Canister Procedure Disconnect the electrical connector. Disconnect the quick connect fittings. Plastic Collar Quick Connect Fitting Service Transfer parts as necessary.

Callout

Component Name

WARNING:

WARNING:

Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle

Evaporative Emission Canister Nut [3x]

CAUTION:

Tighten
9 N.m (80 lb in)

Evaporative Emission Canister

Procedure

Disconnect the electrical connector.
Disconnect the quick connect fittings. Plastic Collar Quick Connect Fitting Service
Transfer parts as necessary.
