Evaporative Emission Canister Purge Hose Replacement (FWD)

WARNING: This page is about a different variant/trim than selected.

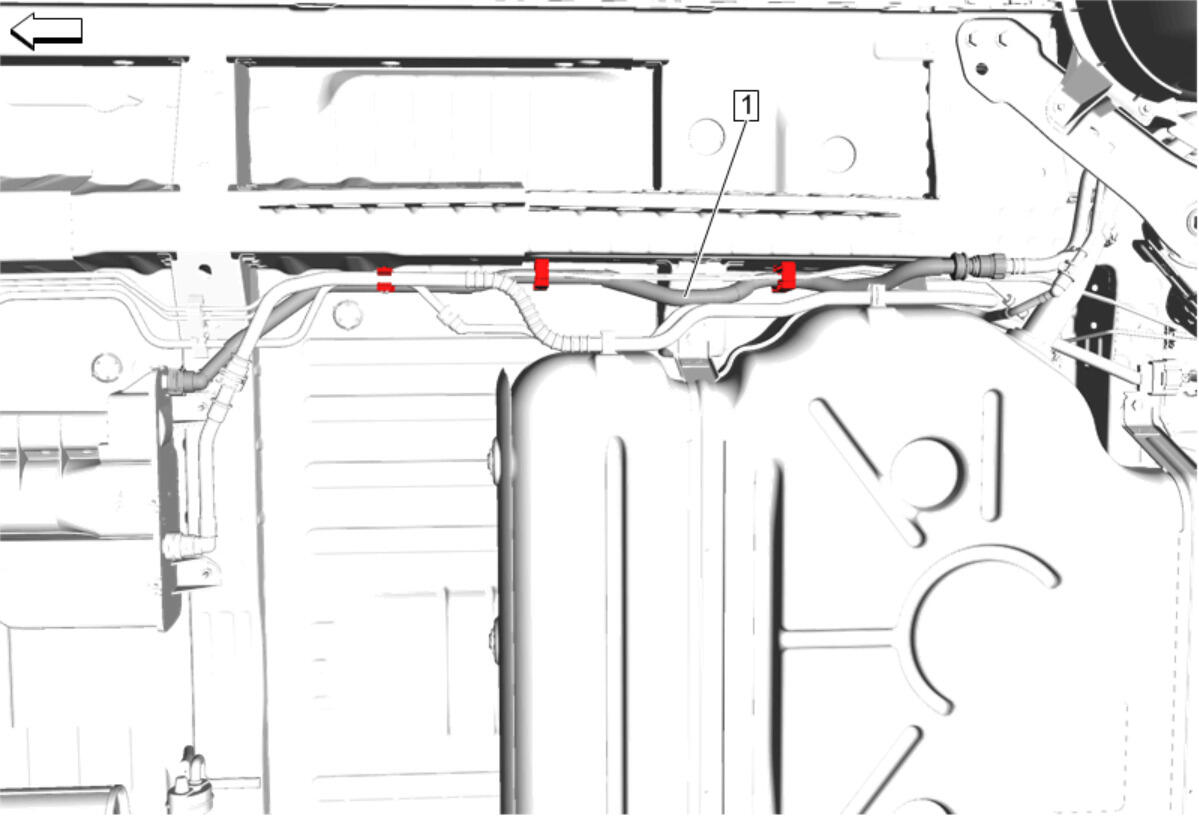

GM5336742Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle
1 Evaporative Emission Canister Purge Hose
Procedure
Disconnect the quick connect fitting and remove from the 3 retainers. Plastic Collar Quick Connect Fitting Service
