Engine Oil Temperature Sensor Replacement (FWD)

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury. Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle

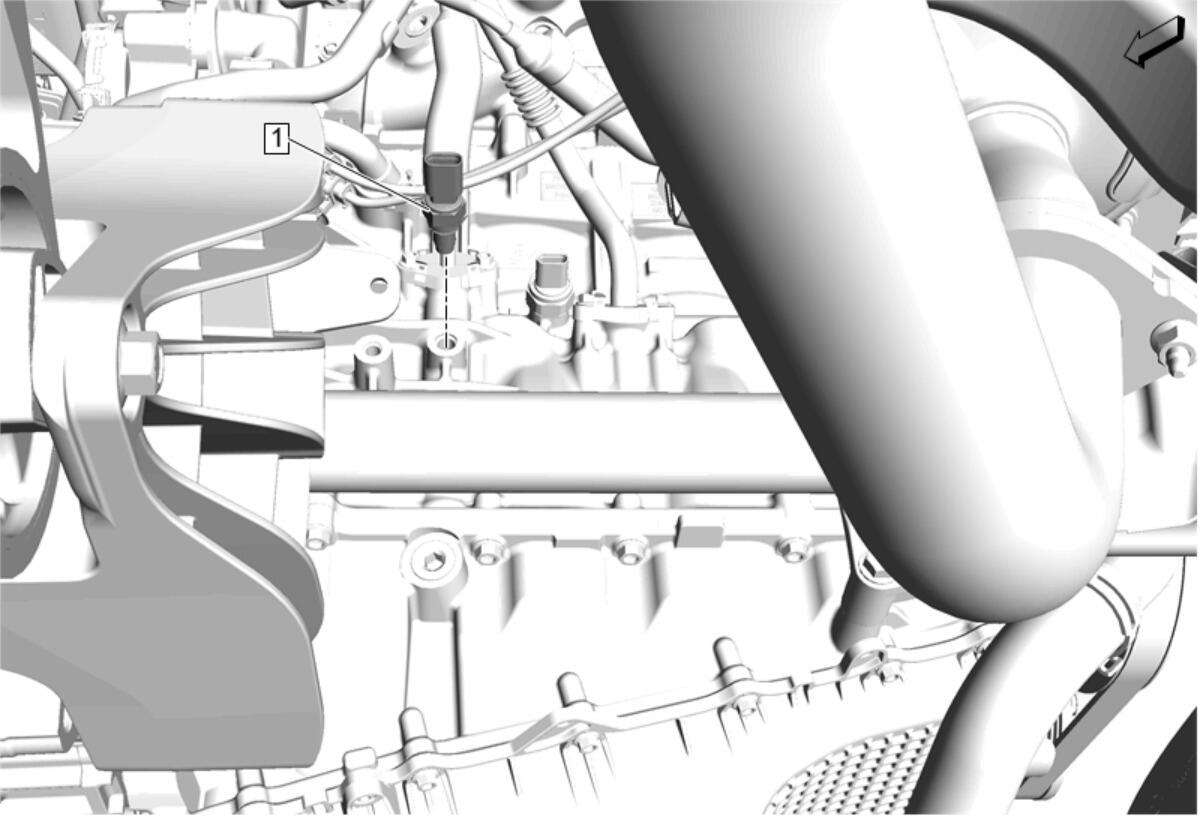

1	Engine Oil Temperature Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure Disconnect the electrical connector. Tighten 20 N.m (15 lb ft)
