Engine Oil Pressure Sensor Replacement (AWD)

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury. Preliminary Procedures Raise and support the vehicle. Lifting and Jacking the Vehicle Exhaust Front Pipe Replacement (LSY)

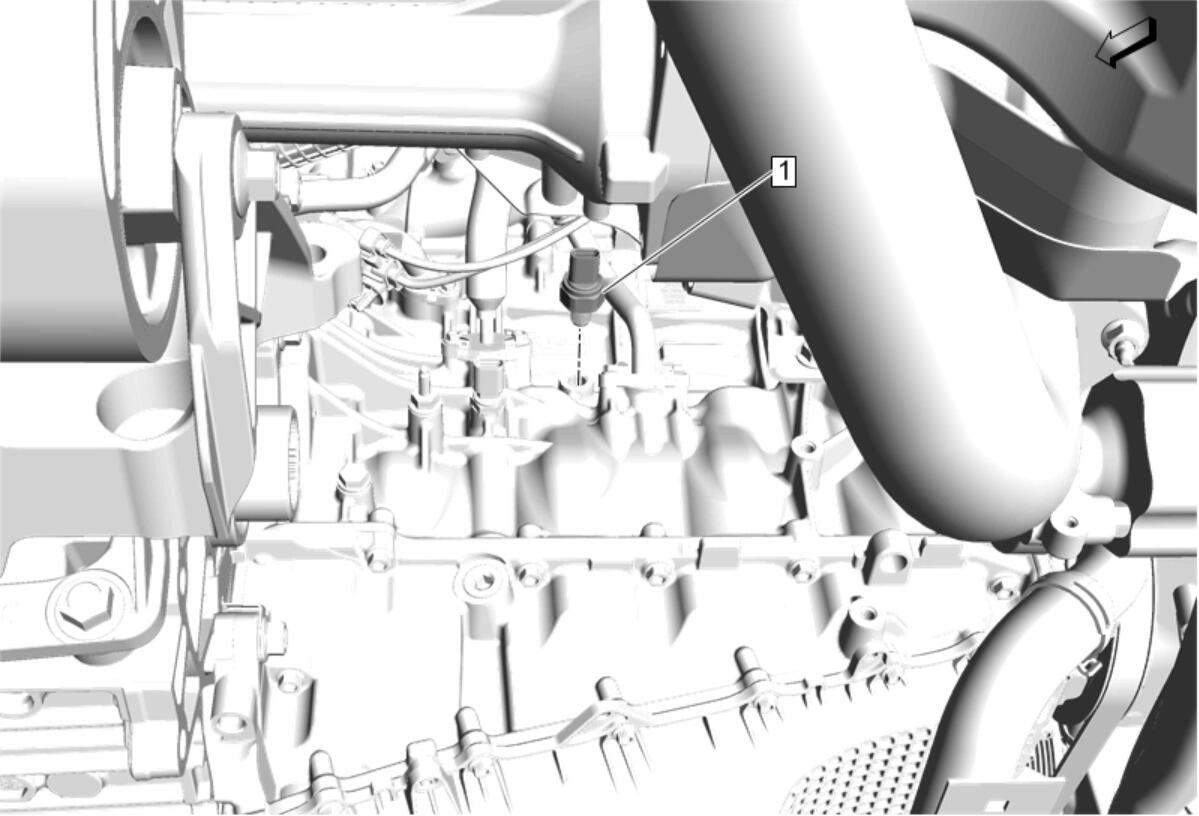

1	Engine Oil Pressure Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure Disconnect the electrical connector. Tighten 35 N.m (26 lb ft)

Callout

Component Name

WARNING:

Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury.

Preliminary Procedures

Engine Oil Pressure Sensor

CAUTION:

Procedure
Disconnect the electrical connector.
Tighten
35 N.m (26 lb ft)
