Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Drain the cooling system. Cooling System Draining and Filling (Static LSY) , or Cooling System Draining and Filling (GE 47716 LSY)

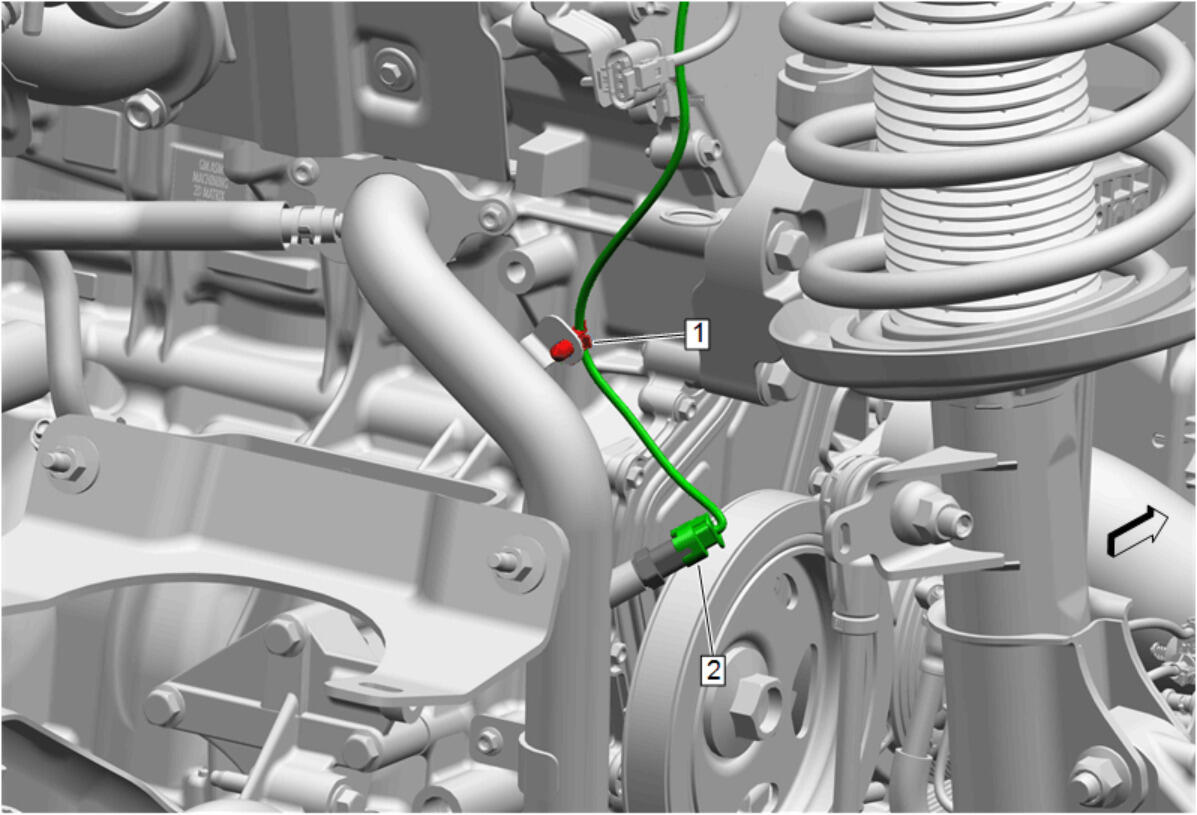

  2. GM5043585Courtesy of GENERAL MOTORS COMPANY

    Engine Coolant Temperature Sensor Electrical Connector (2) - Disconnect

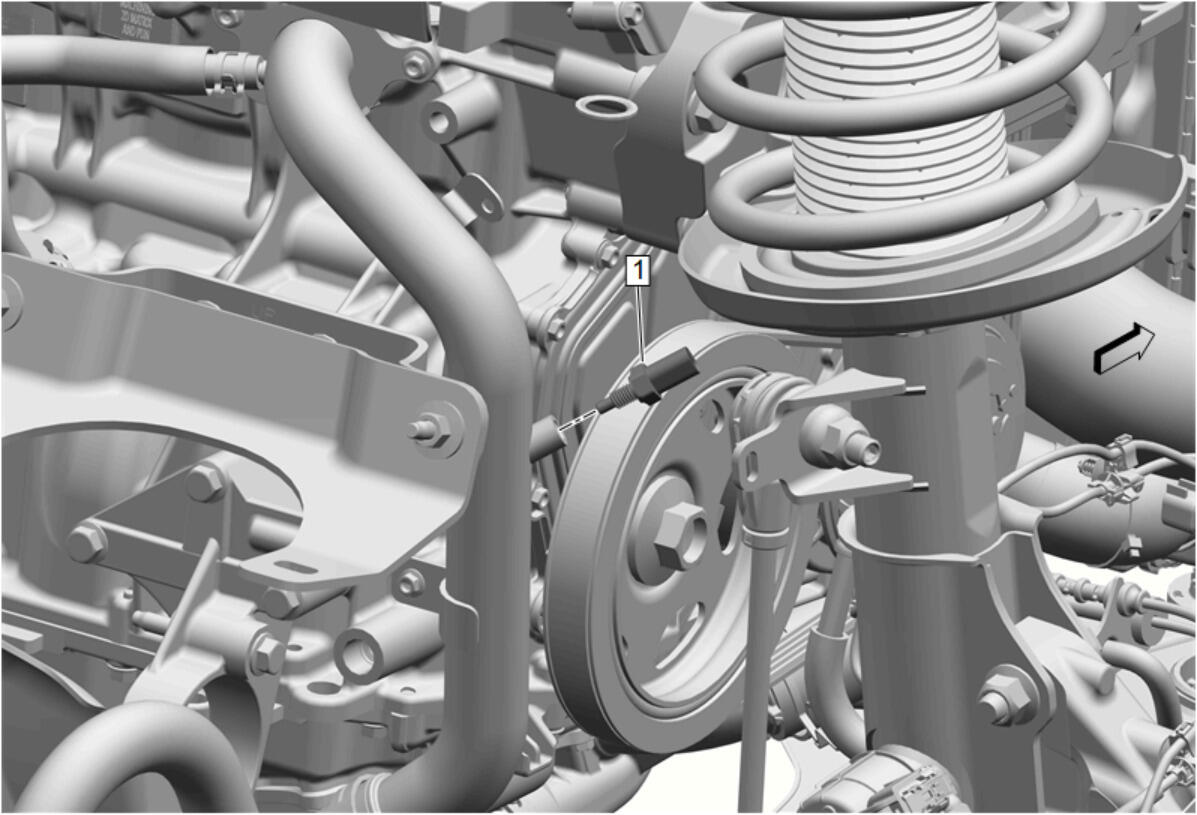

  3. GM5043596Courtesy of GENERAL MOTORS COMPANY

    Engine Coolant Temperature Sensor (1) - Remove
