Charge Air Cooler Replacement

WARNING: This page is about a different variant/trim than selected.

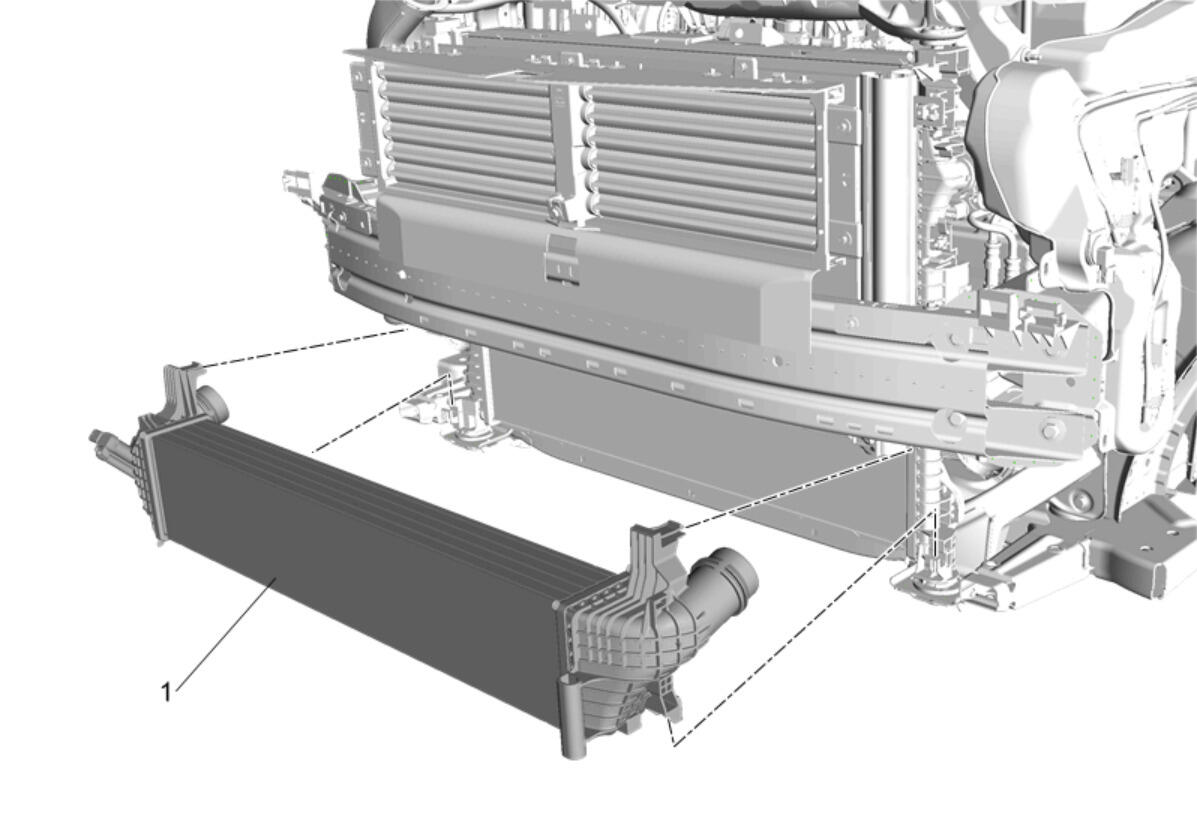

GM5343019Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Front Bumper Fascia Removal and Installation
  2. Radiator Air Front Lower Baffle Replacement (LSY)
  3. Charge Air Cooler Inlet Air Tube @ Charge Air Cooler - Disconnect - Charge Air Cooler Inlet Air Tube Replacement
  4. Charge Air Cooler Outlet Air Hose @ Charge Air Cooler - Disconnect - Charge Air Cooler Outlet Air Hose Replacement
1 Charge Air Cooler

Procedure

  1. Disconnect the electrical connector.
  2. Release retainers and remove charge air cooler from radiator.
  3. Transfer components as necessary.
