Camshaft Position Sensor Replacement - Intake

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

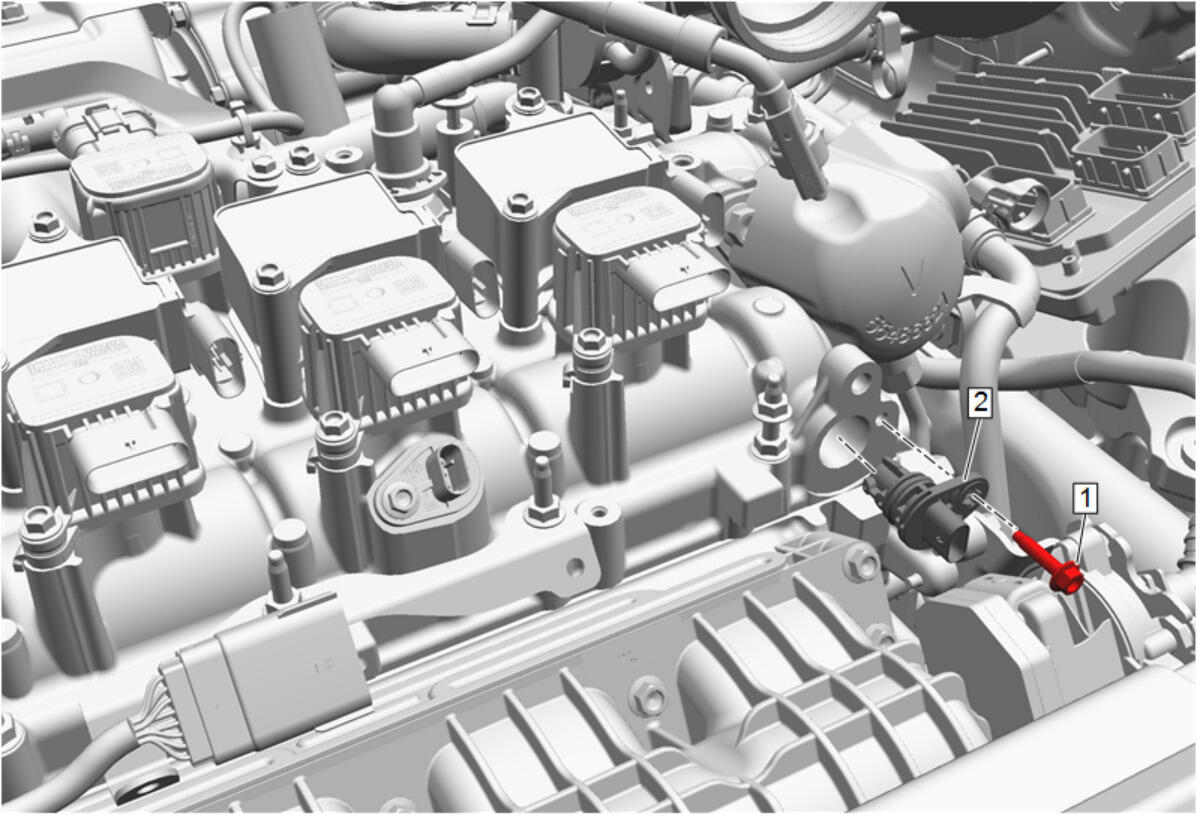

Callout	Component Name
Preliminary Procedures Air Cleaner Outlet Resonator Replacement Air Cleaner Outlet Intermediate Duct Replacement
1	Camshaft Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 8.5 N.m (75 lb in)
2	Camshaft Position Sensor Procedure Disconnect the camshaft position sensor electrical wiring harness connector.

Callout

Component Name

Preliminary Procedures

Camshaft Position Sensor Bolt

CAUTION:

Tighten
8.5 N.m (75 lb in)

Camshaft Position Sensor
Procedure
Disconnect the camshaft position sensor electrical wiring harness connector.
