Camshaft Position Sensor Replacement - Exhaust
WARNING: This page is about a different variant/trim than selected.

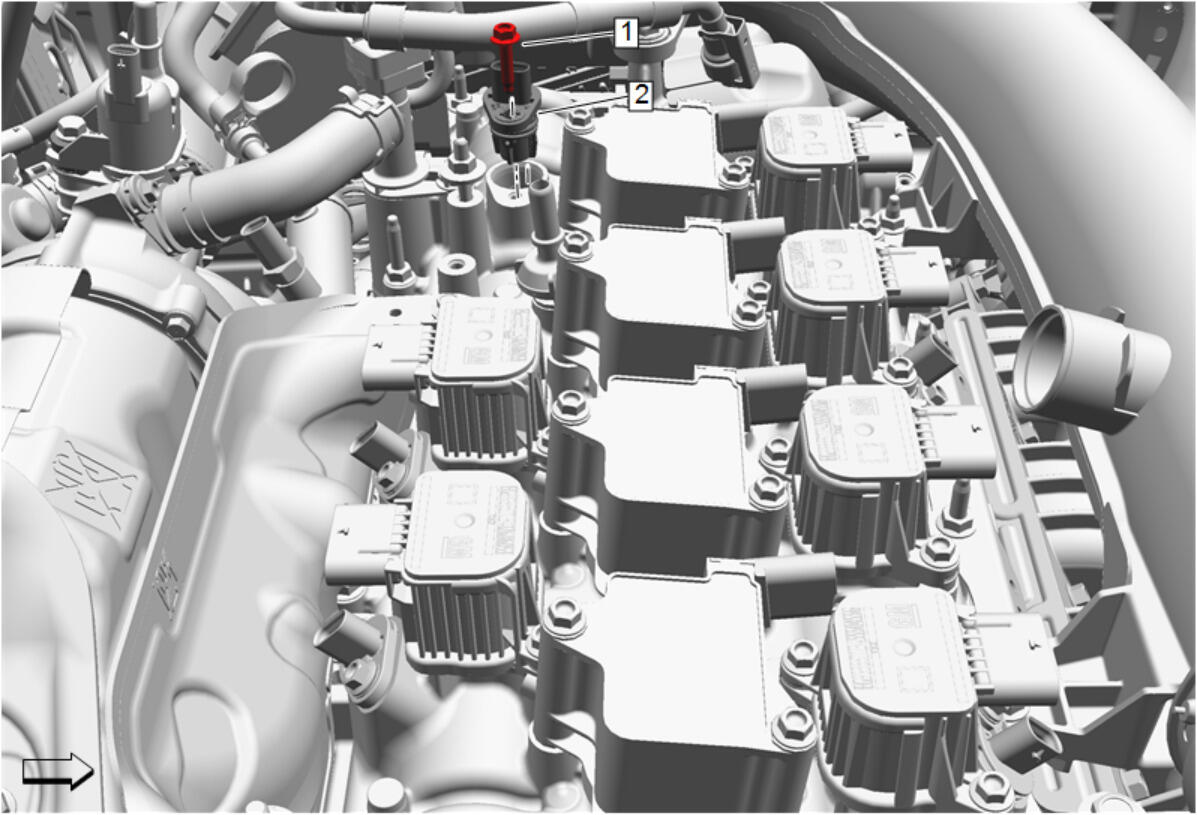

| Callout | Component Name |
|---|---|
| Preliminary Procedure Air Cleaner Outlet Resonator Replacement |
|
| 1 | Camshaft Position Sensor Bolt
CAUTION:
Refer to Fastener Caution . Tighten 8.5 N.m (75 lb in) |
| 2 | Camshaft Position Sensor Procedure Disconnect the camshaft position sensor electrical wiring harness connector. |
