Camshaft Position Actuator Valve Solenoid Replacement - Exhaust
WARNING: This page is about a different variant/trim than selected.

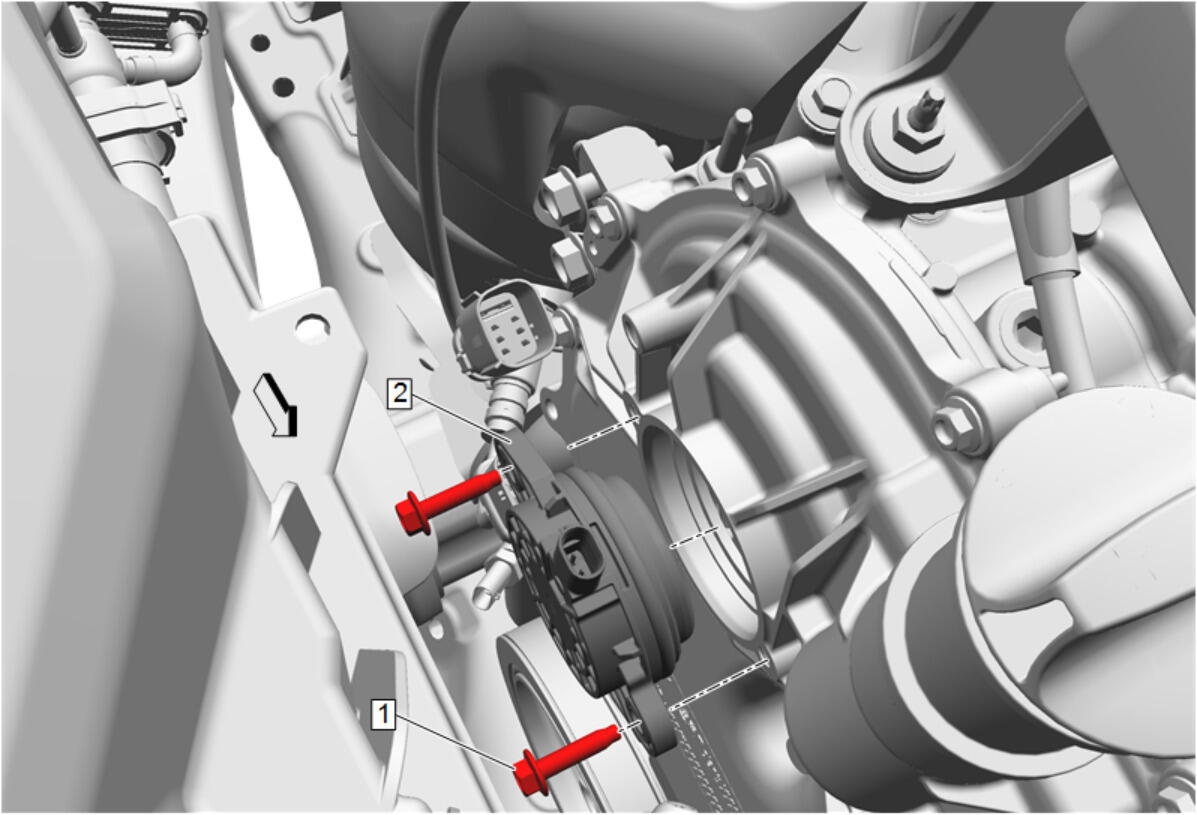

| Callout | Component Name |
|---|---|
| 1 | Camshaft Position Actuator Valve Solenoid Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 8.5 N.m (75 lb in) |
| 2 | Camshaft Position Actuator Valve Solenoid Procedure Disconnect the camshaft position actuator valve solenoid electrical connector. |
