Camshaft Position Actuator Replacement - Intake

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

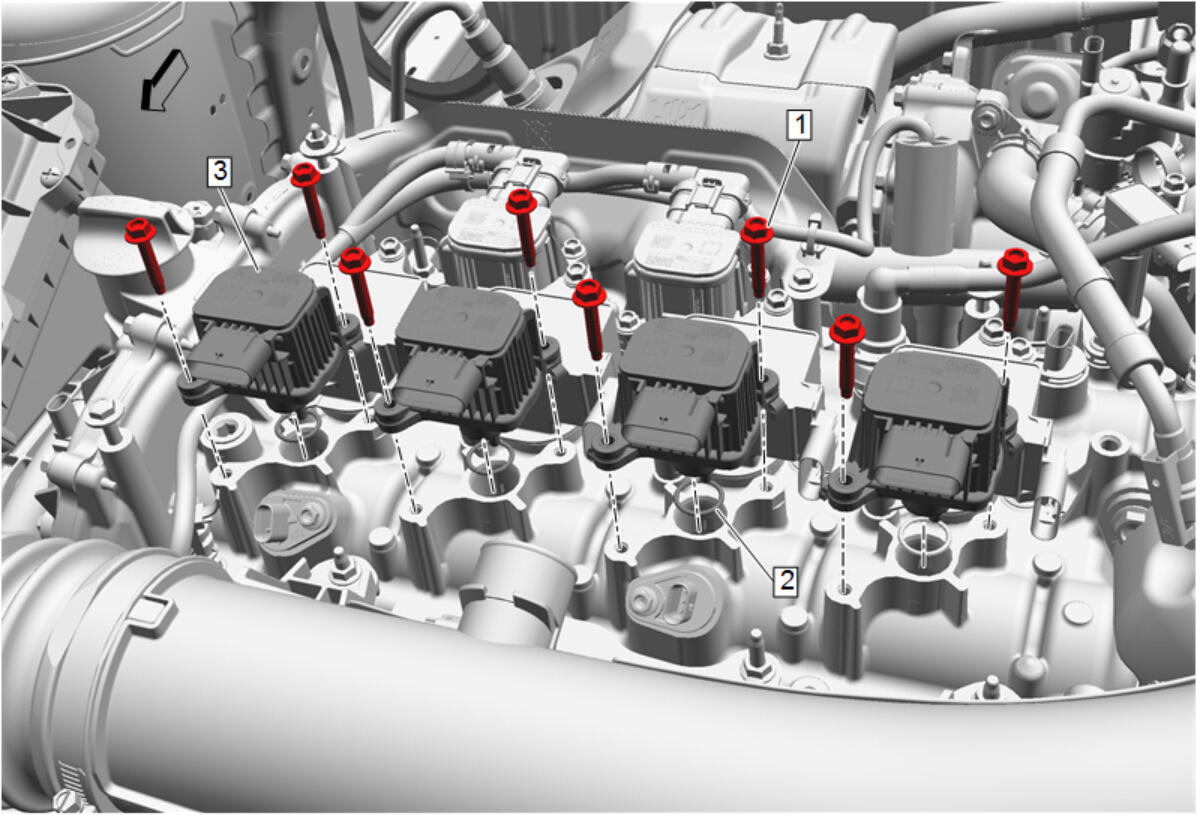

Callout	Component Name
Preliminary Procedure Air Cleaner Outlet Resonator Replacement
1	Camshaft Lobe Position Actuator Bolt [8x] CAUTION: Refer to Fastener Caution . Tighten 8.5 N.m (75 lb in)
2	Camshaft Position Actuator Seal [4x] Procedure Remove and DISCARD
