Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. GM5334664Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Outlet Resonator (1) - Install

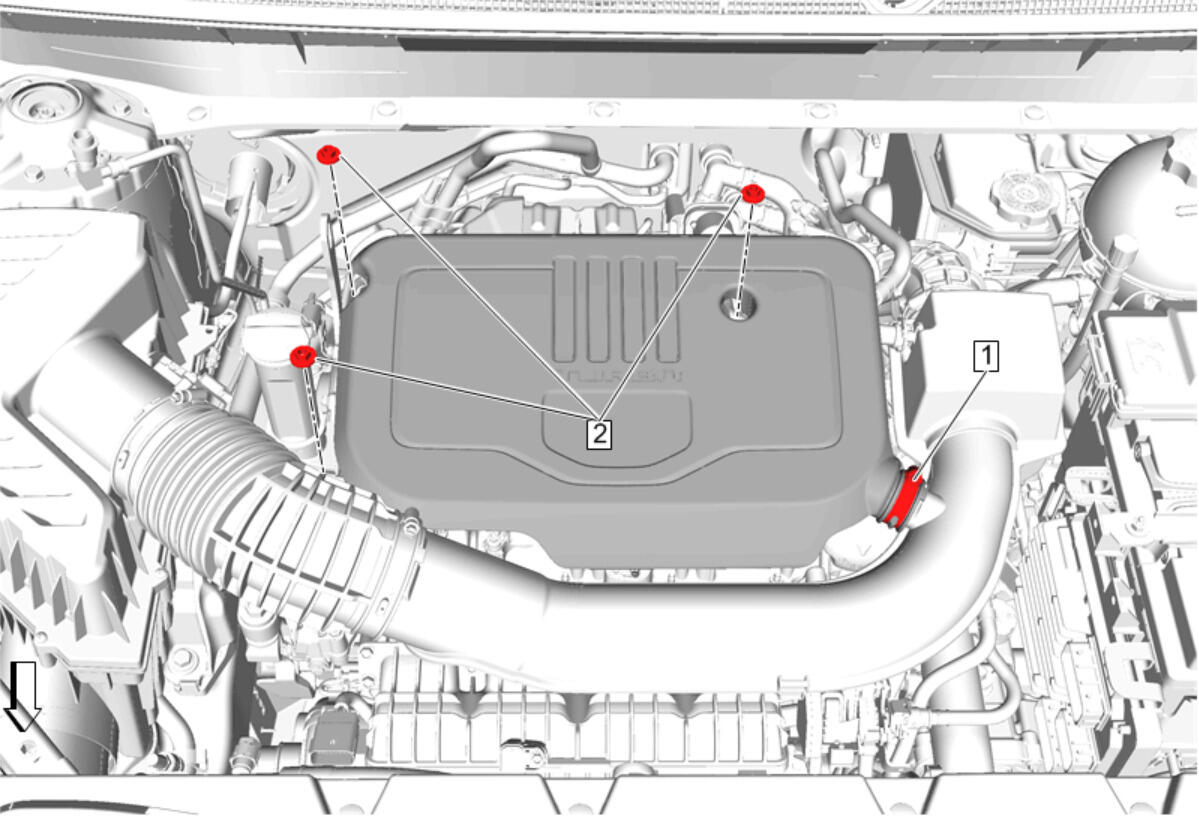

  2. GM5334663Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Air Cleaner Resonator Nut (2) - Install and tighten [3x] 9 N.m (80 lb in)

  3. Air Cleaner Outlet Resonator Clamp (1) - Tighten 4 N.m (35 lb in)
