Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

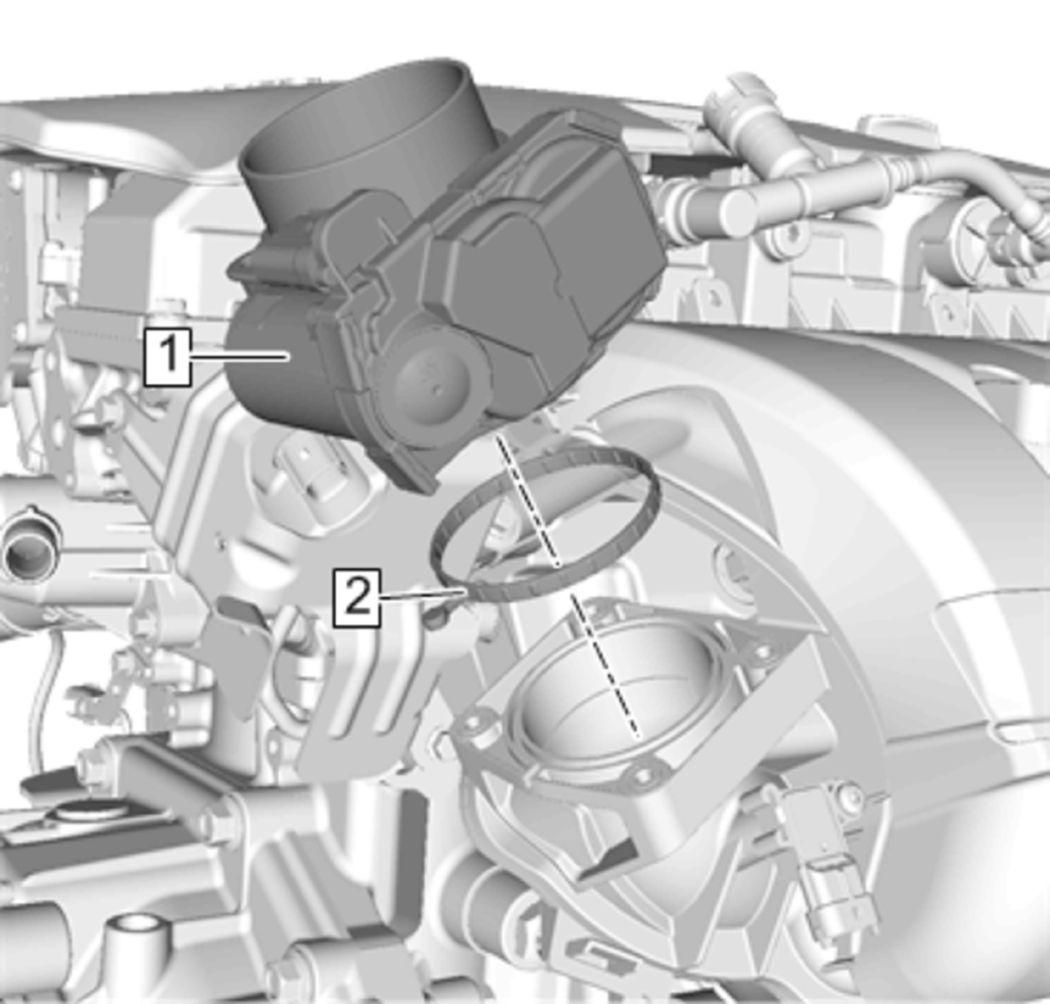

Throttle Body Seal (2) - Install
Throttle Body (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

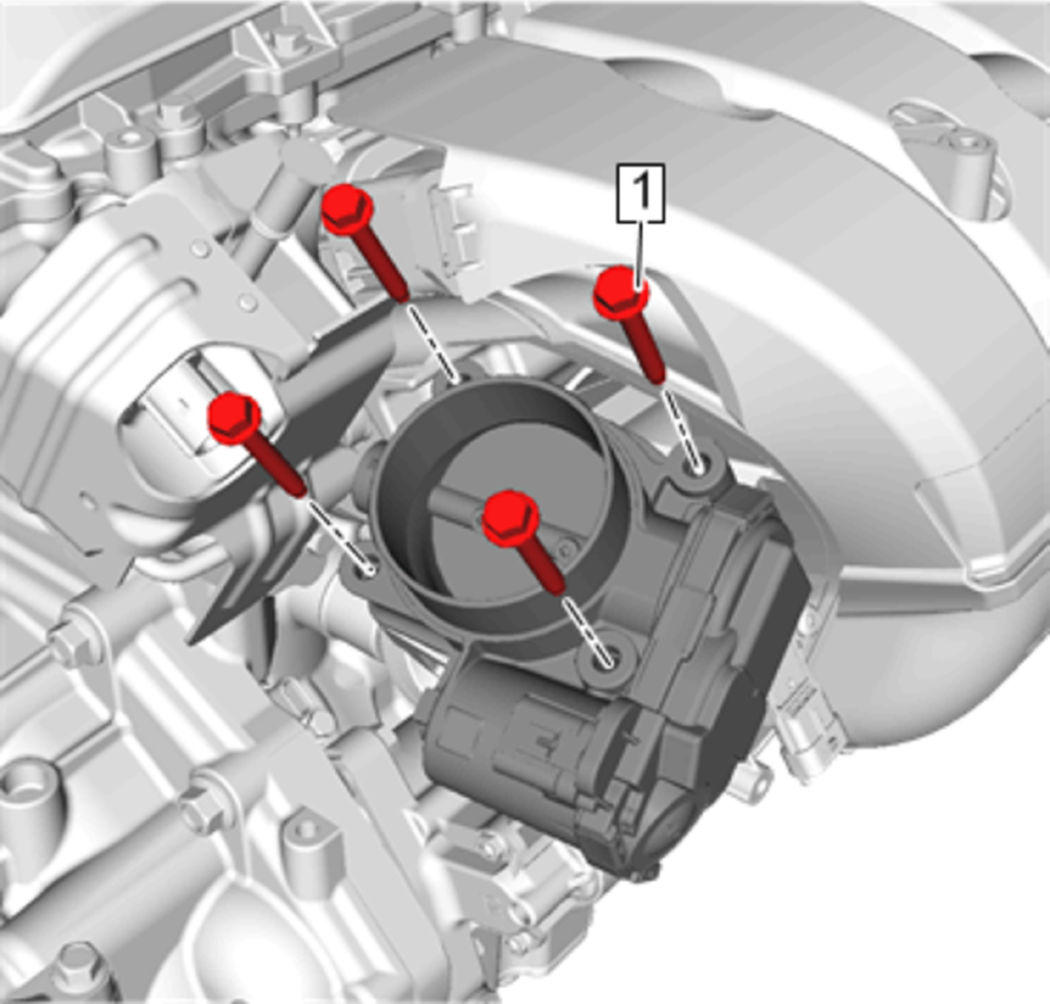

Throttle Body Bolt (1) - Install and tighten [4x] 10 N.m (89 lb in)
Courtesy of GENERAL MOTORS COMPANY

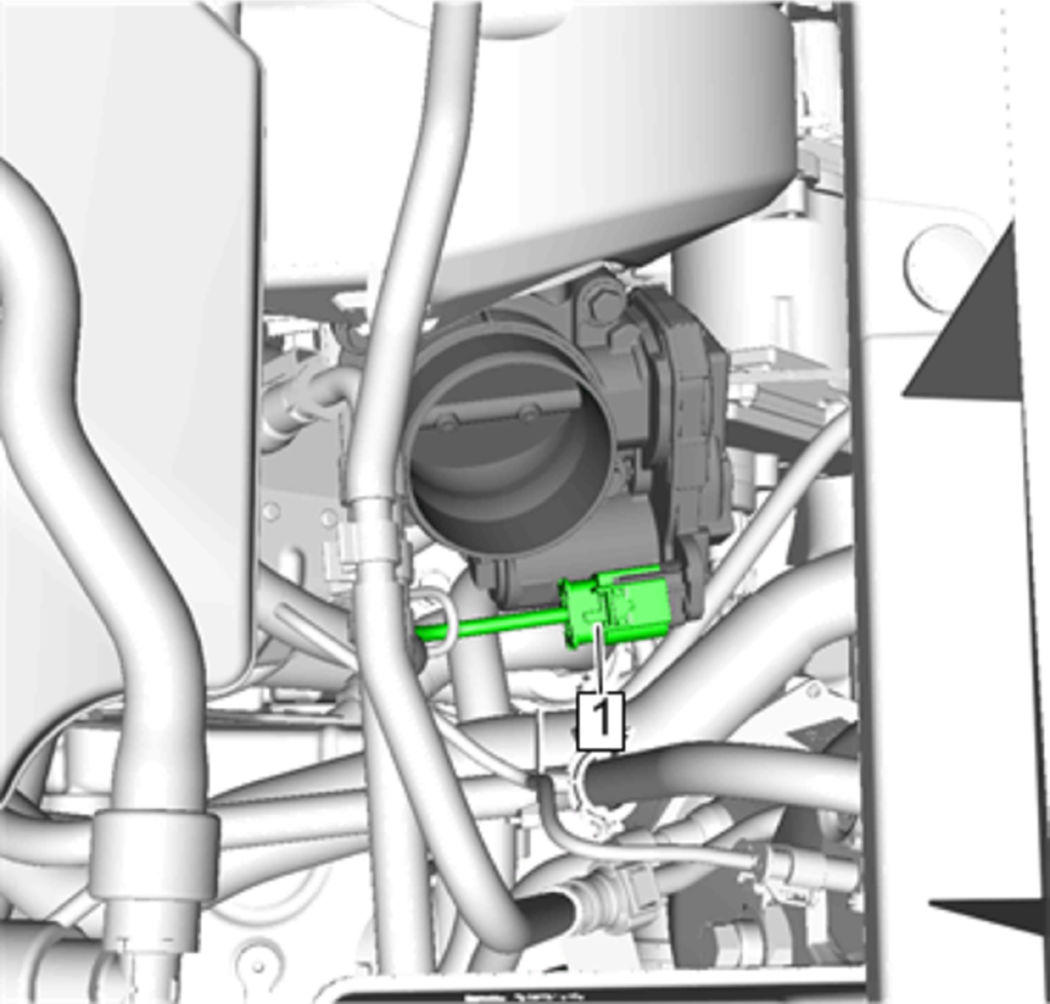

Electrical Connector (1) - Connect
Air Cleaner Outlet Duct - Install - Air Cleaner Outlet Duct Replacement
Perform throttle body idle air flow compensation reset. Throttle Body Idle Air Flow Compensation Reset
