Mass Airflow Sensor with Intake Air Temperature Sensor Replacement
WARNING: This page is about a different variant/trim than selected.

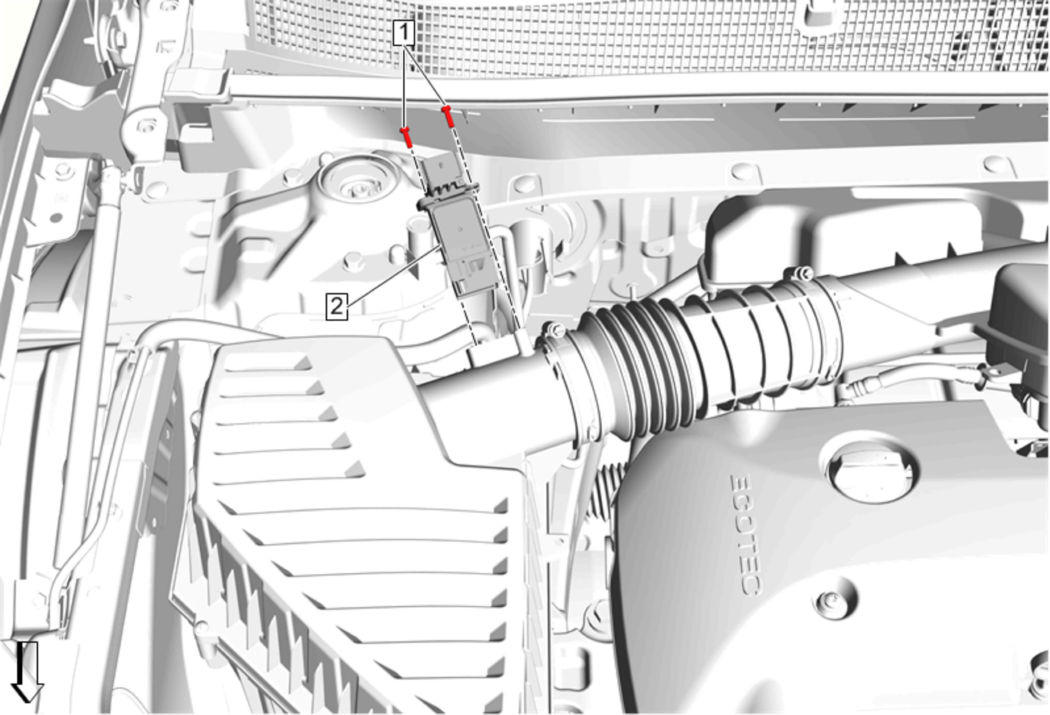

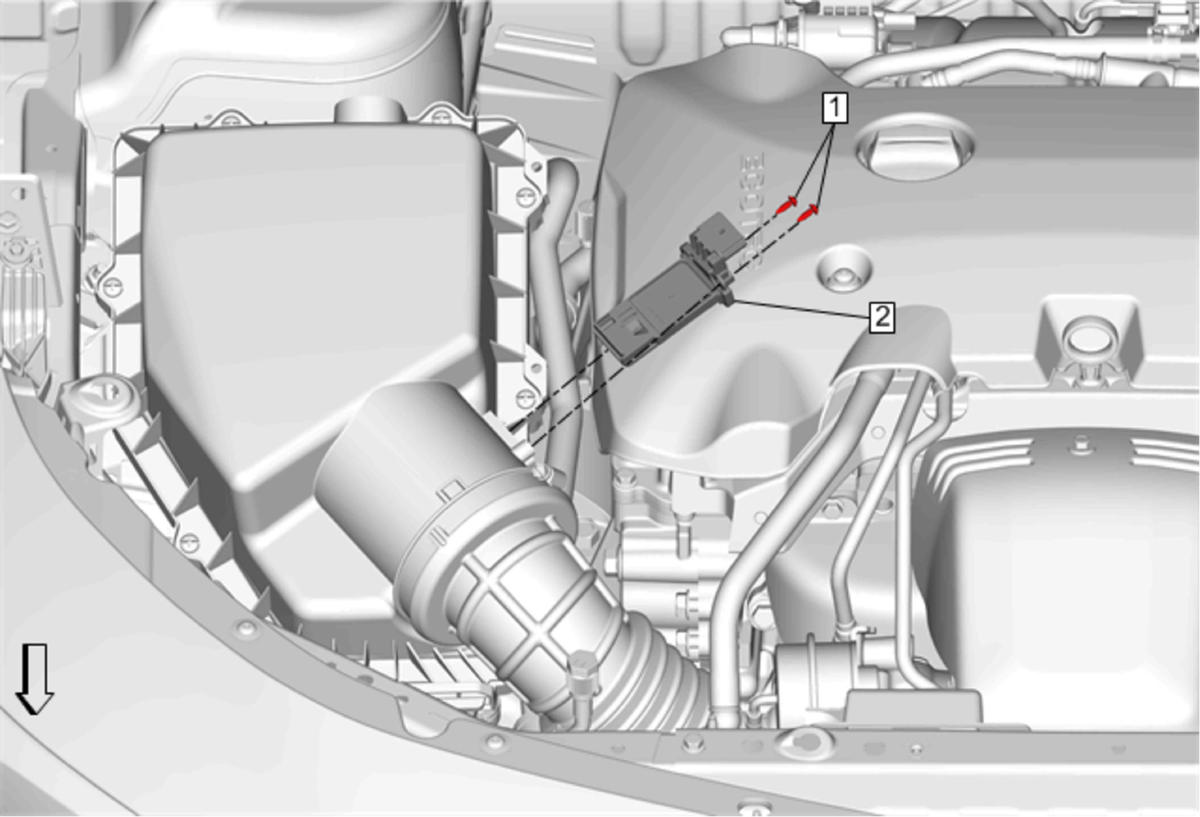

| Callout | Component Name |
|---|---|
| 1 | Mass Airflow Sensor Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 4 N.m (35 lb in) |
| 2 | Mass Airflow Sensor Procedure Disconnect the electrical connector. |
