Manifold Absolute Pressure Sensor Replacement
WARNING: This page is about a different variant/trim than selected.

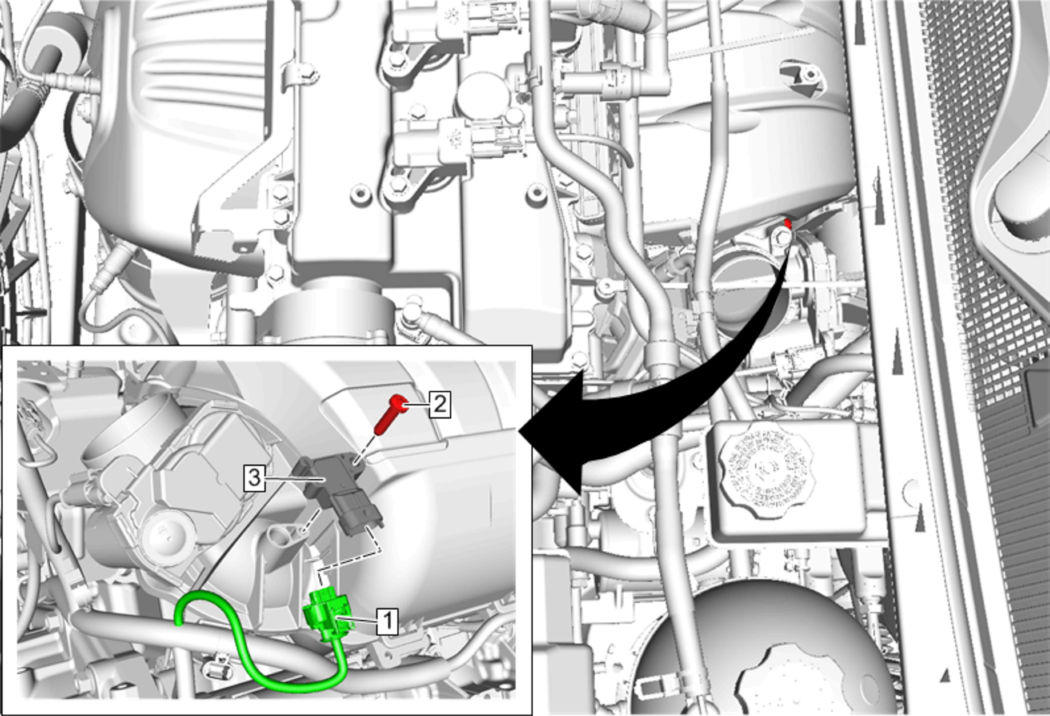

| Callout | Component Name |
|---|---|
| Preliminary Procedure Air Cleaner Outlet Duct Replacement |
|
| 1 | Electrical Connector |
| 2 | Manifold Absolute Pressure Sensor Bolt
CAUTION:
Refer to Fastener Caution . Tighten 5 N.m (44 lb in) |
| 3 | Manifold Absolute Pressure Sensor
NOTE:
Inspect the manifold absolute pressure (MAP) sensor O-ring seal and replace as necessary. |
