Knock Sensor Replacement (Position 2)
WARNING: This page is about a different variant/trim than selected.

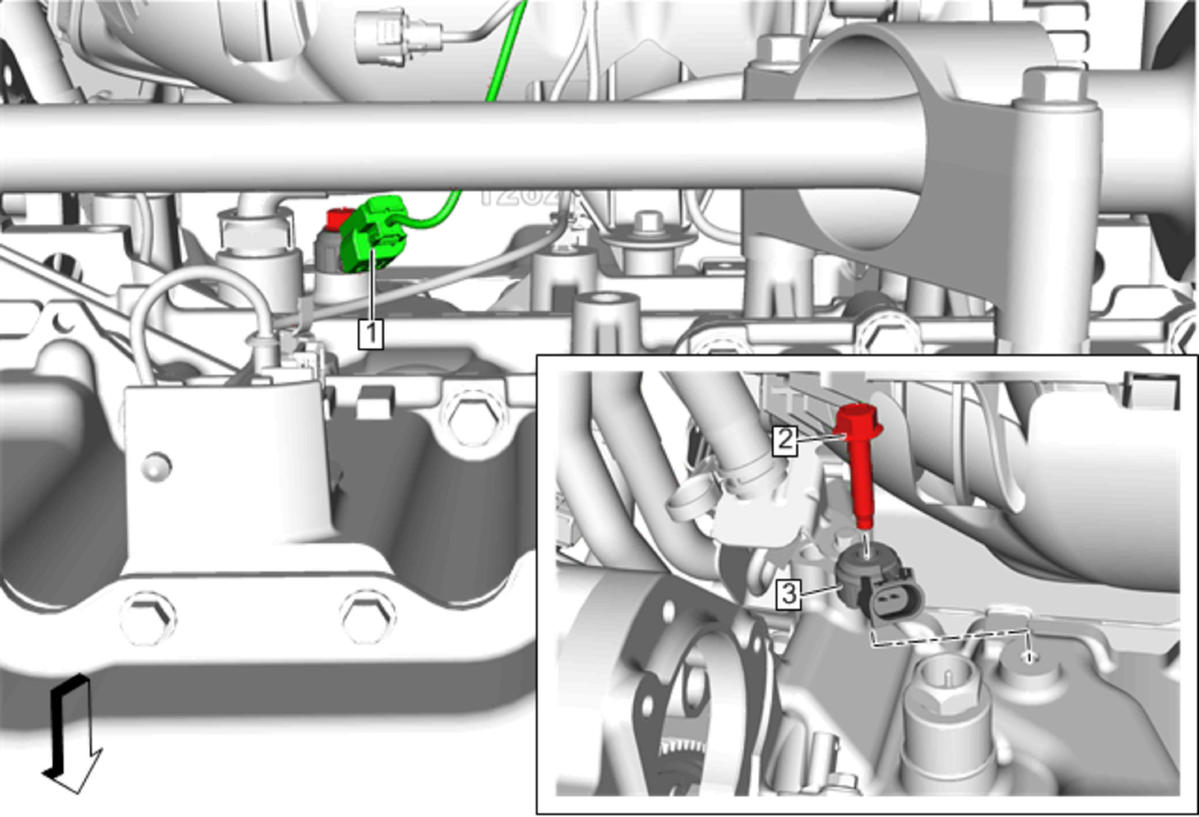

| Callout | Component Name |
|---|---|
| Preliminary Procedure Starter Replacement (LCV) |
|
| 1 | Electrical Connector Procedure Disconnect the electrical connector. |
| 2 | Knock Sensor Fastener
CAUTION:
Refer to Fastener Caution . Tighten 25 N.m (18 lb ft) |
| 3 | Knock Sensor |
