Fuel Tank Pressure Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

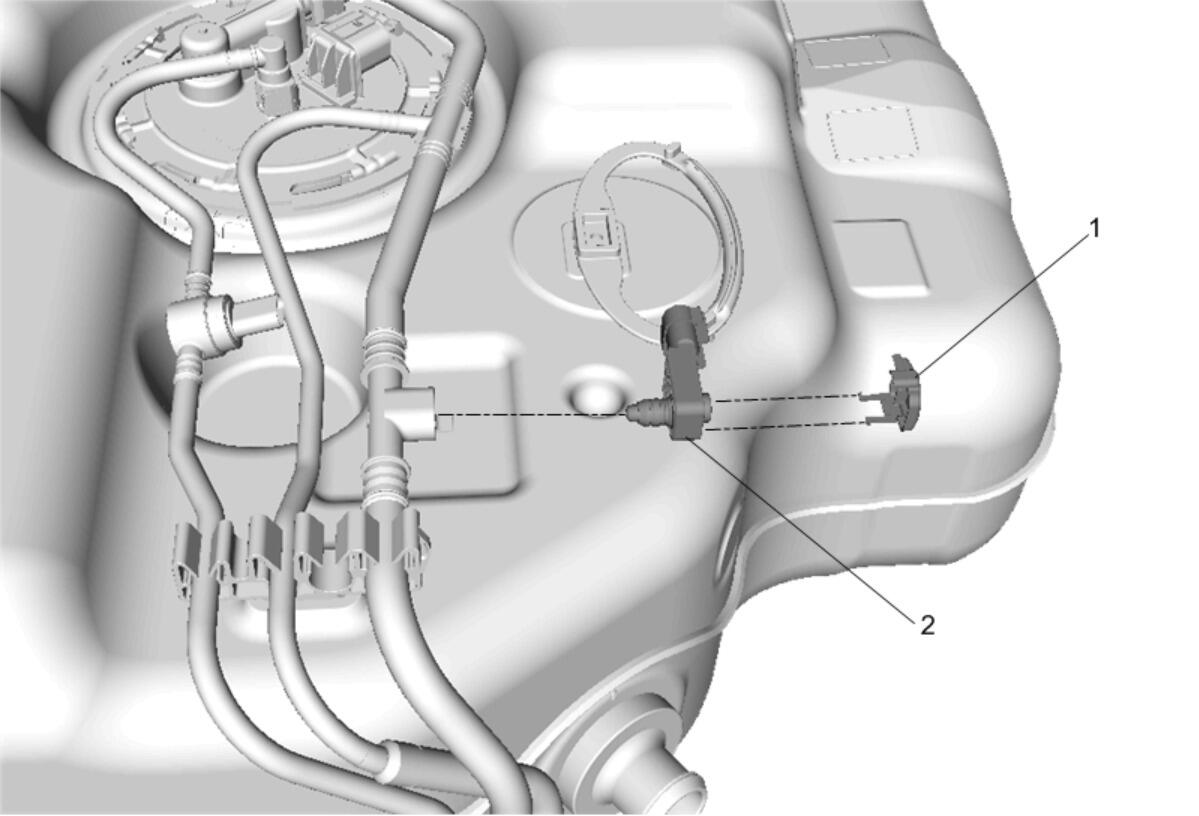

GM4292593Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedure Fuel Tank Replacement
1 Fuel Tank Pressure Sensor Cover
2 Fuel Tank Pressure Sensor
Procedure
Disconnect the electrical connector.
