Fuel Pump Insulator Replacement
WARNING: This page is about a different variant/trim than selected.

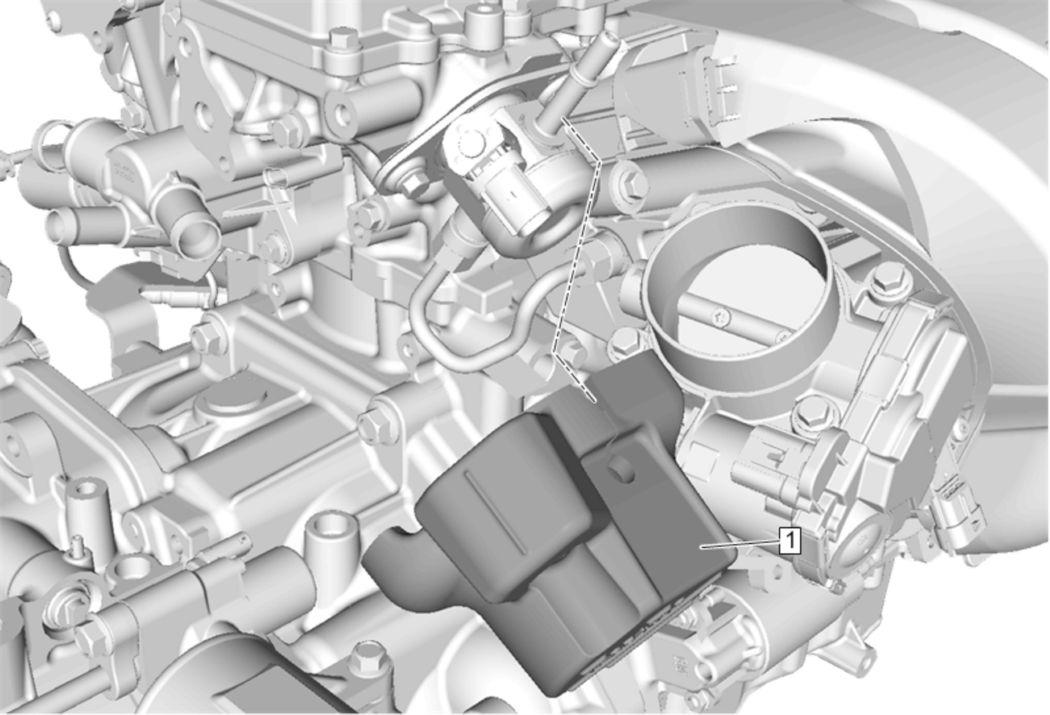

| Callout | Component Name |
|---|---|
| Preliminary Procedure Fuel Pump Cover Replacement |
|
| 1 | Fuel Pump Insulator
WARNING:
The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death.
NOTE:
The fuel pump insulator snaps into place. |
