Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

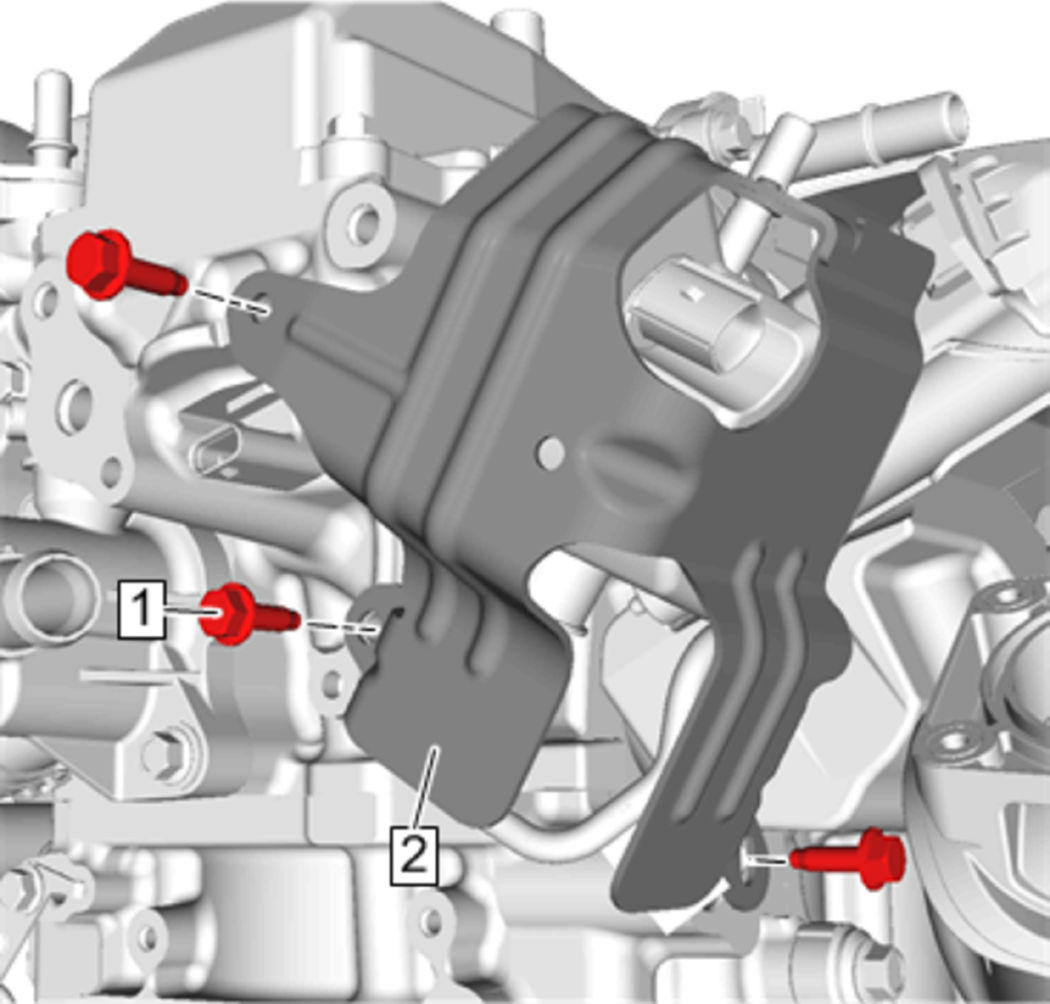

Fuel Pump Cover (2) - Install

CAUTION:

Refer to Fastener Caution .

Fuel Pump Shield Bolt (1) - Install and tighten [3x] 10 N.m (89 lb in)
Courtesy of GENERAL MOTORS COMPANY

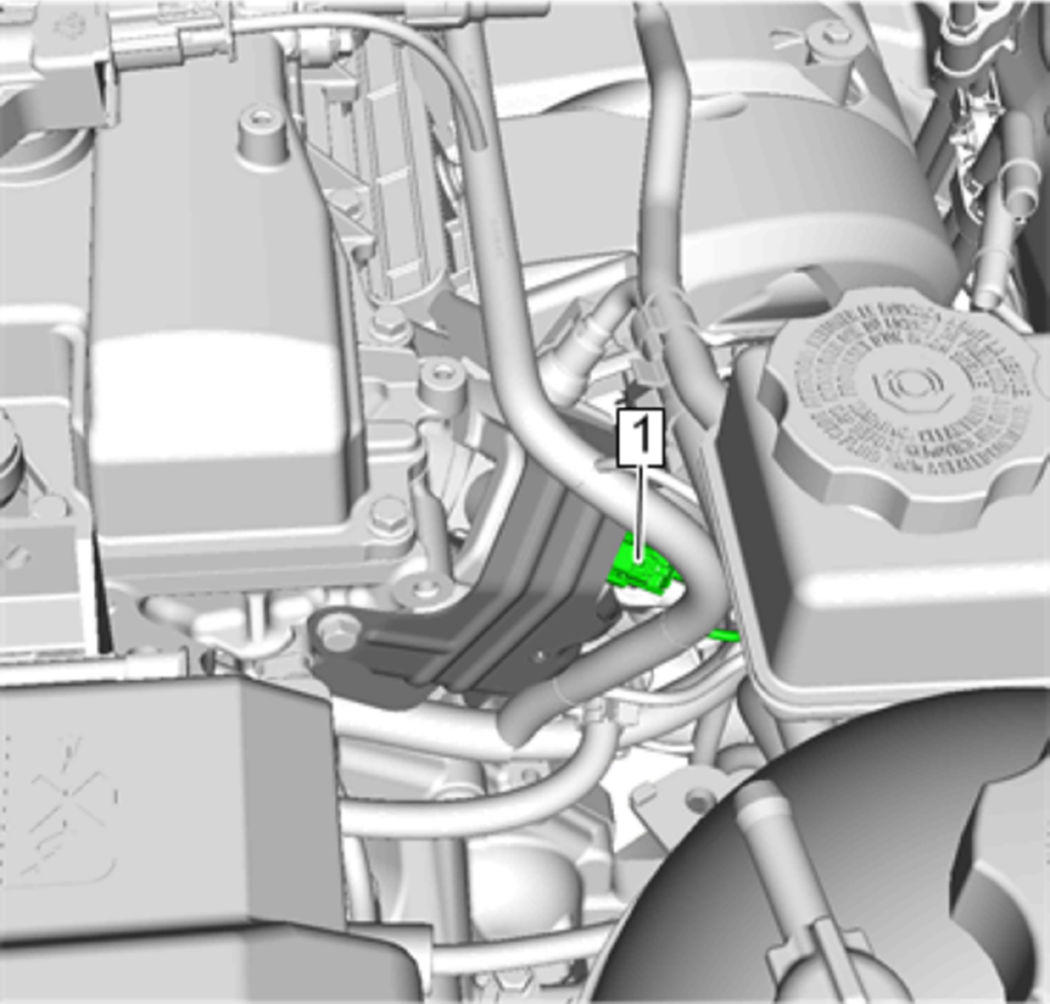

Electrical Connector (1) - Connect
Heater Inlet Hose Bracket - Install - Heater Inlet Hose Bracket Replacement (LCV)
Throttle Body Assembly - Install - Throttle Body Assembly Replacement
