Fuel Level Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

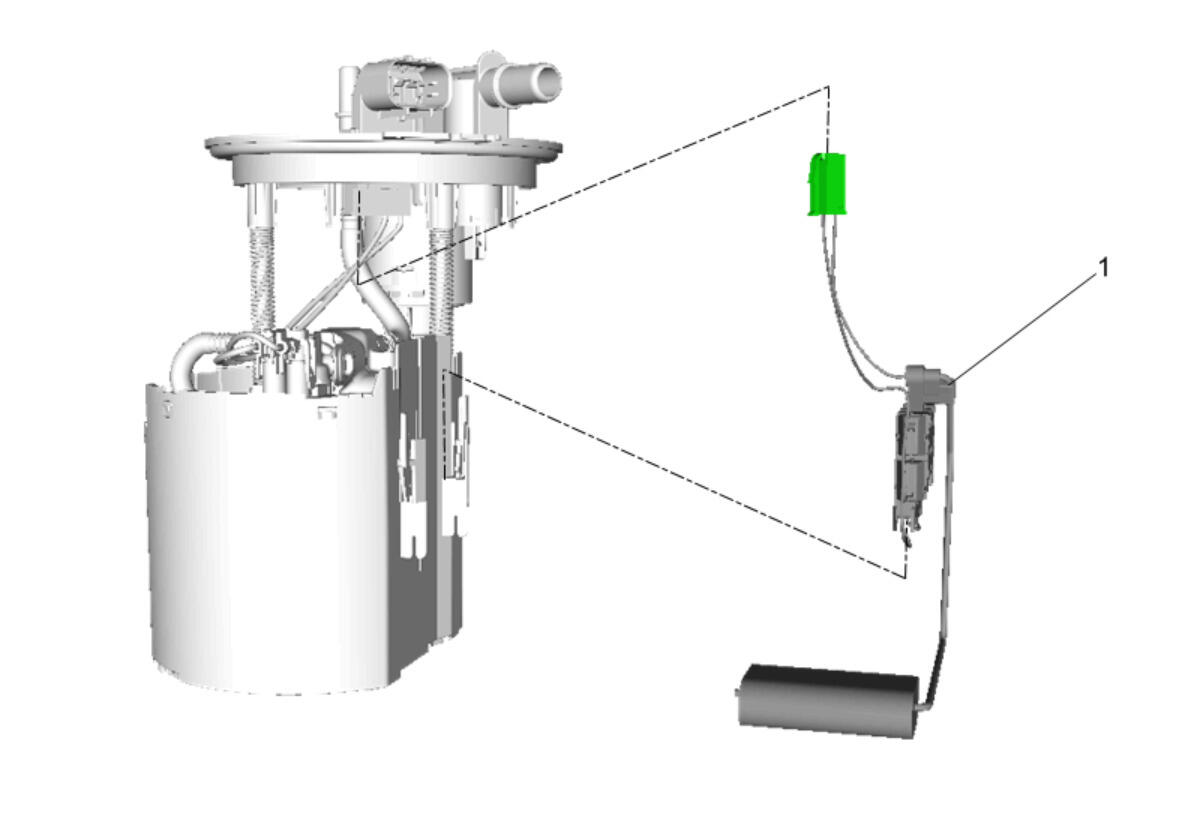

GM4361170Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedure Fuel Tank Fuel Pump Module Replacement
1 Fuel Level Sensor

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
