Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

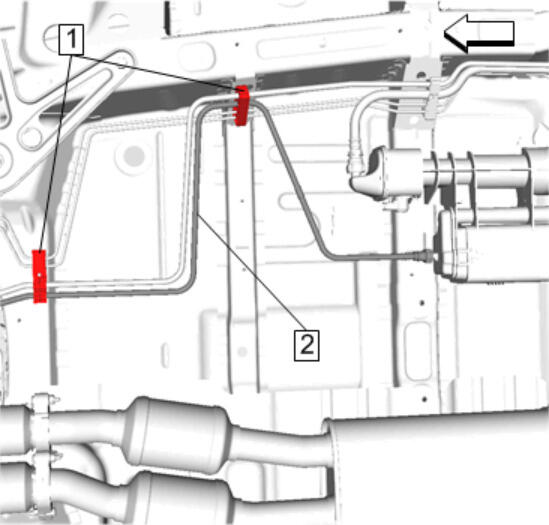

Evaporative Emission Pipe (2) @ Retainer (1) - Install [2x]
Evaporative Emission Pipe (2) @ Evaporative Emission Canister - Connect - Plastic Collar Quick Connect Fitting Service
Courtesy of GENERAL MOTORS COMPANY

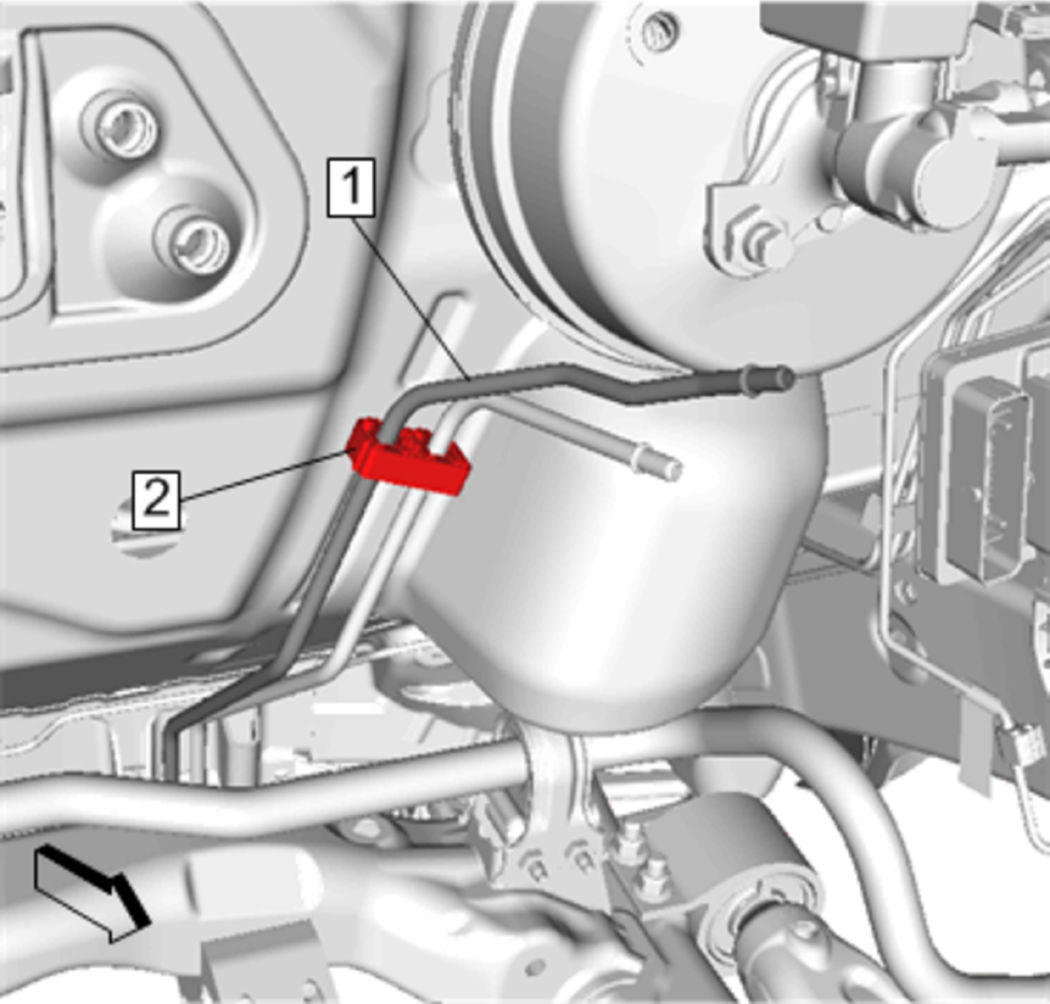

Evaporative Emission Pipe (1) @ Retainer (2) - Install
Evaporative Emission Canister Purge Hose - Install - Evaporative Emission Canister Purge Hose Replacement
