Evaporative Emission Canister Air Inlet Hose Replacement

WARNING: This page is about a different variant/trim than selected.

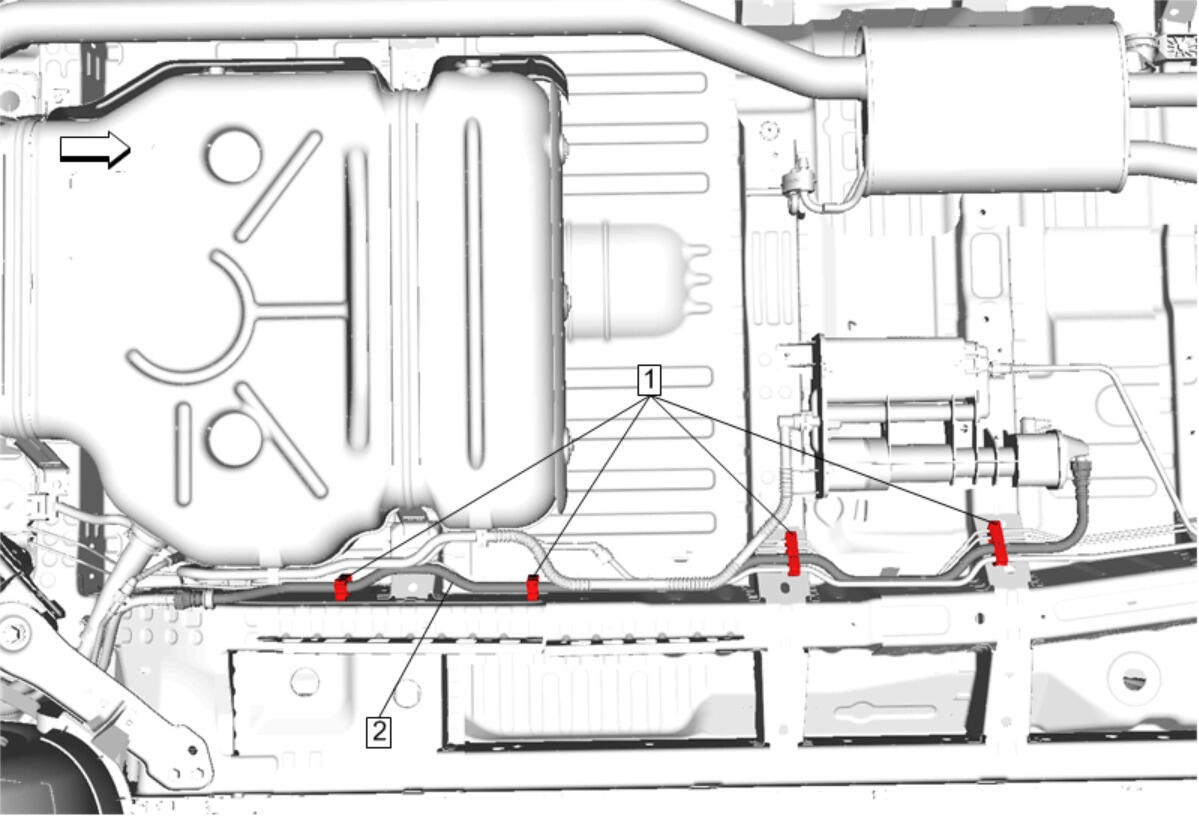

GM4310920Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle
1 Retainer [4x]
2 Evaporative Emission Canister Air Inlet Hose
Procedure
Disconnect the quick connect fitting. Plastic Collar Quick Connect Fitting Service
