Crankshaft Position Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

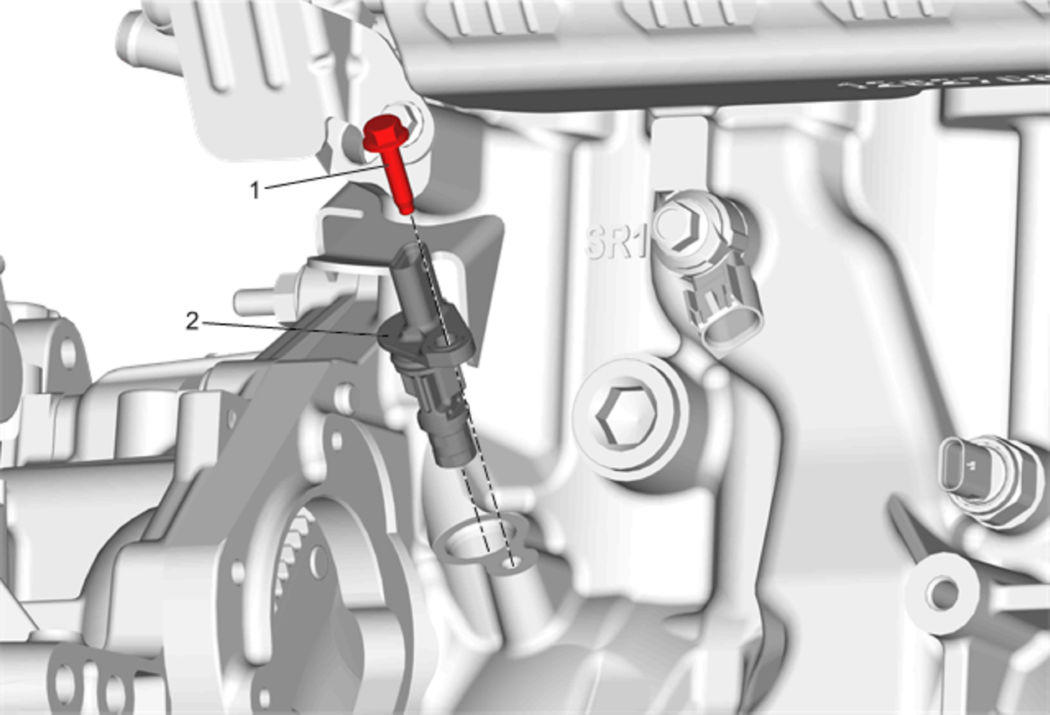

Callout	Component Name
Preliminary Procedures Starter Replacement (LCV) Disconnect the electrical connector.
1	Crankshaft Position Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Crankshaft Position Sensor Procedure If reusing the OLD sensor, install a NEW seal. Perform the crankshaft position variation learn. Crankshaft Position Variation Learn NOTE: A NEW sensor will come with a NEW seal.

Callout

Component Name

Preliminary Procedures

Crankshaft Position Sensor Fastener

CAUTION:

Tighten
10 N.m (89 lb in)

Crankshaft Position Sensor

Procedure

If reusing the OLD sensor, install a NEW seal.
Perform the crankshaft position variation learn. Crankshaft Position Variation Learn

NOTE:

A NEW sensor will come with a NEW seal.
