Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Radiator Surge Tank Inlet Hose @ Air Cleaner Outlet Duct - Reposition away - Radiator Surge Tank Inlet Hose Replacement (LCV)
  2. Air Cleaner Outlet Front Duct - Remove - Air Cleaner Outlet Front Duct Replacement

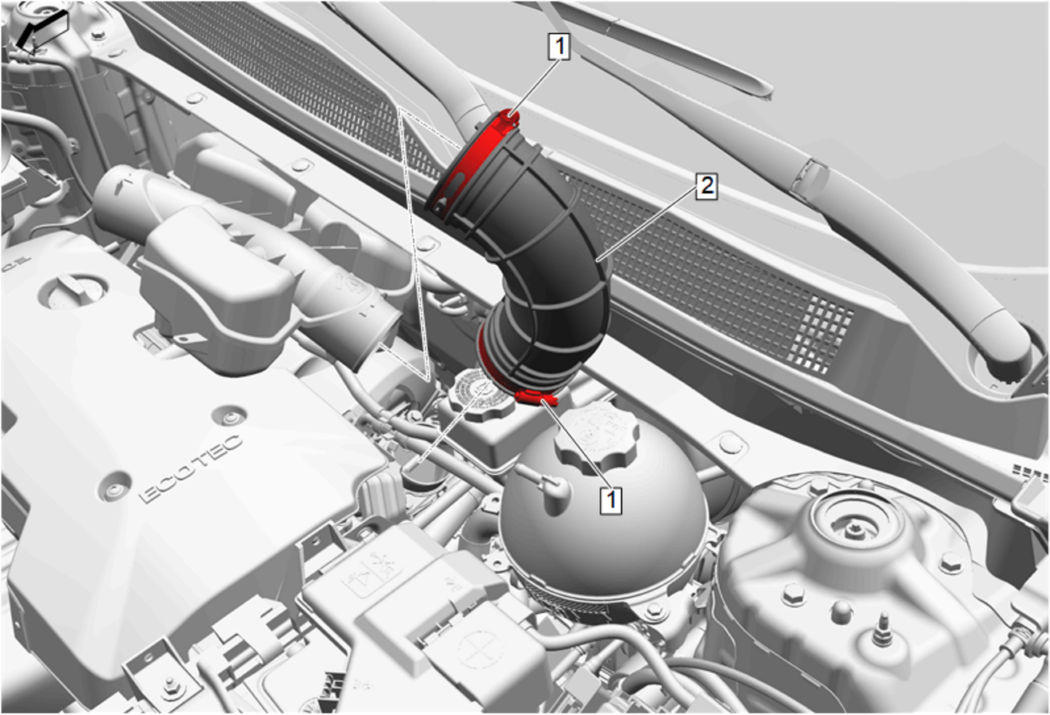

  3. GM5399606Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Outlet Duct Clamp (1) - Loosen [2x]

  4. Air Cleaner Outlet Duct (2) - Remove

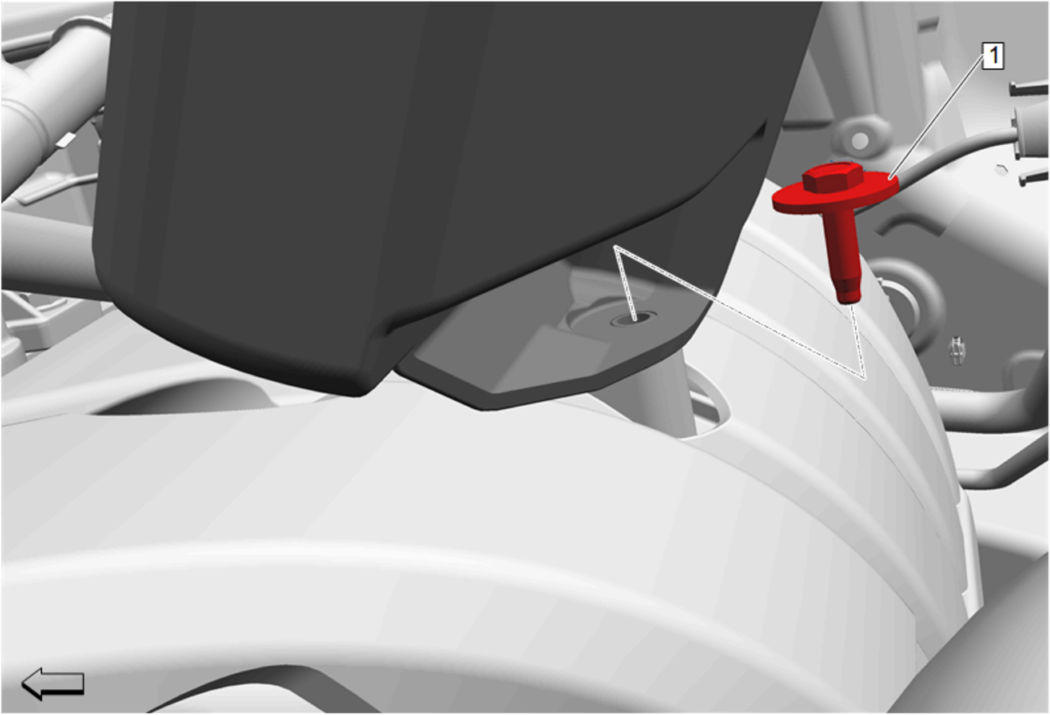

  5. GM5399608Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Outlet Duct Bolt (1) - Remove

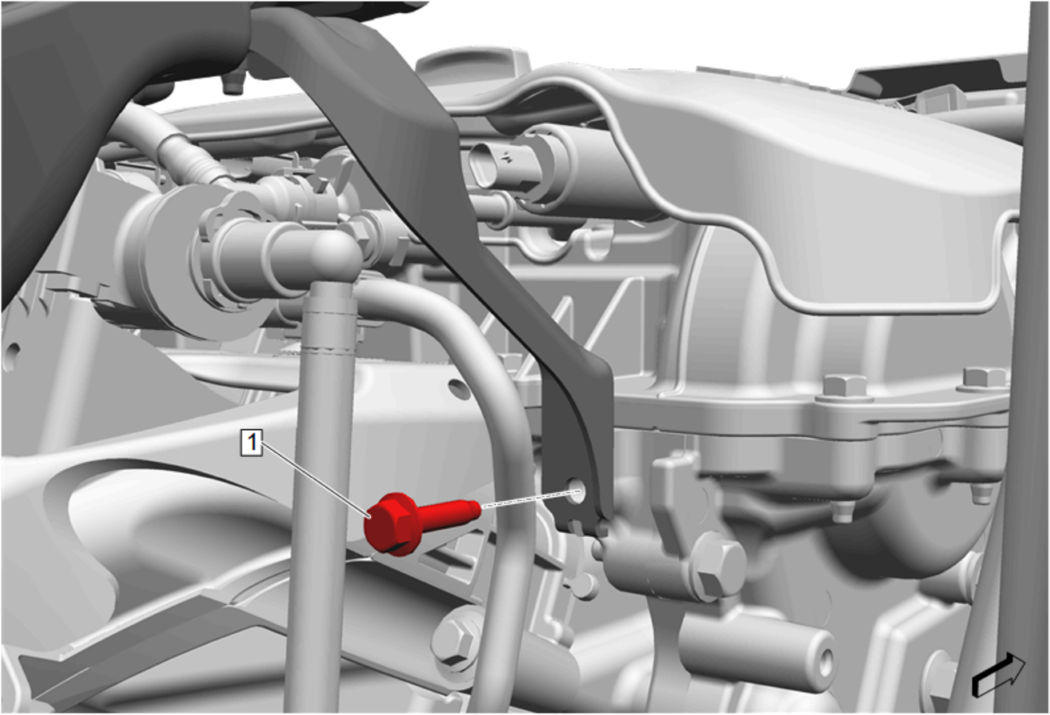

  6. GM5399611Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Outlet Duct Bolt (1) - Remove

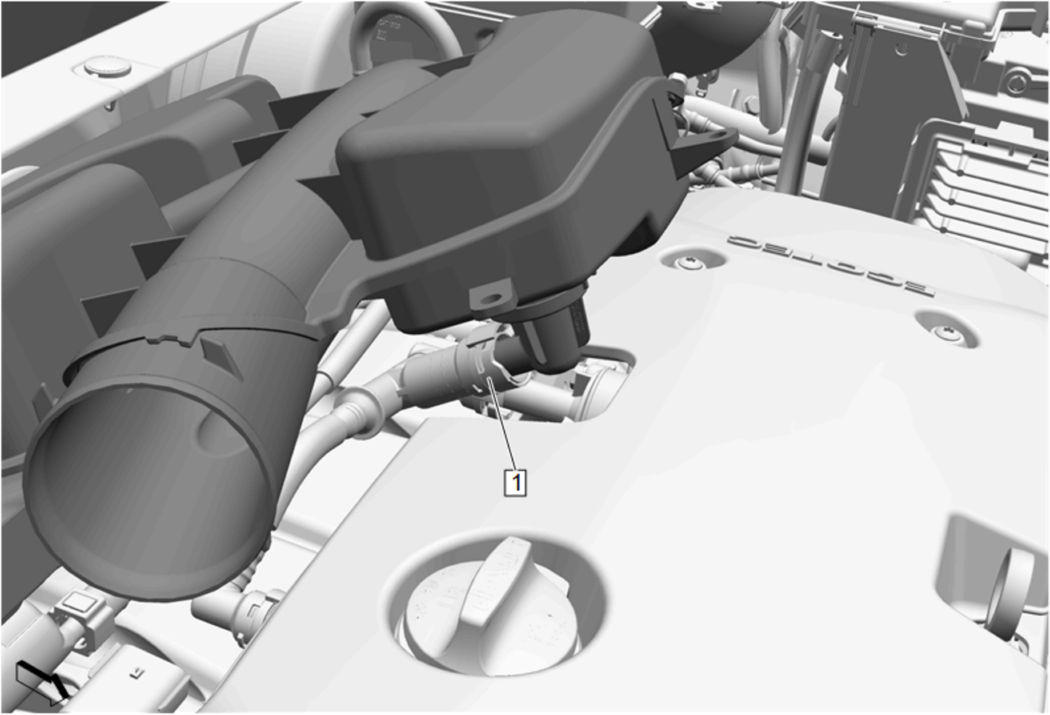

  7. GM5399614Courtesy of GENERAL MOTORS COMPANY

    Positive Crankcase Ventilation Pipe (1) - Disconnect - Plastic Collar Quick Connect Fitting Service

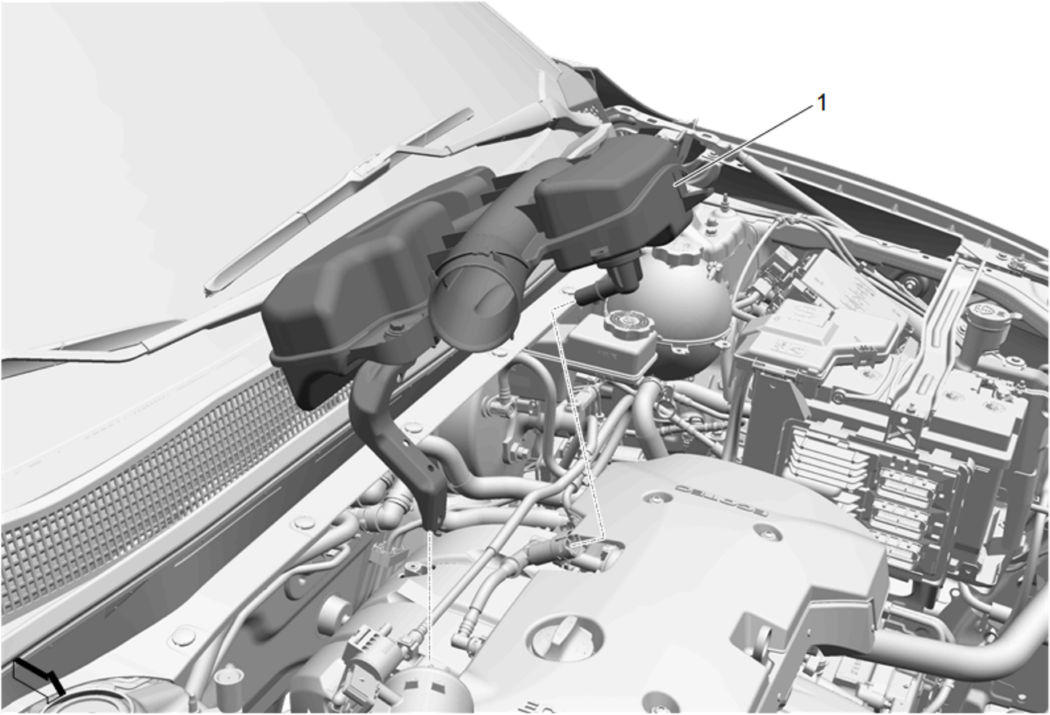

  8. GM5399591Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Outlet Duct (1) - Remove
