Installation Procedure

WARNING: This page is about a different variant/trim than selected.

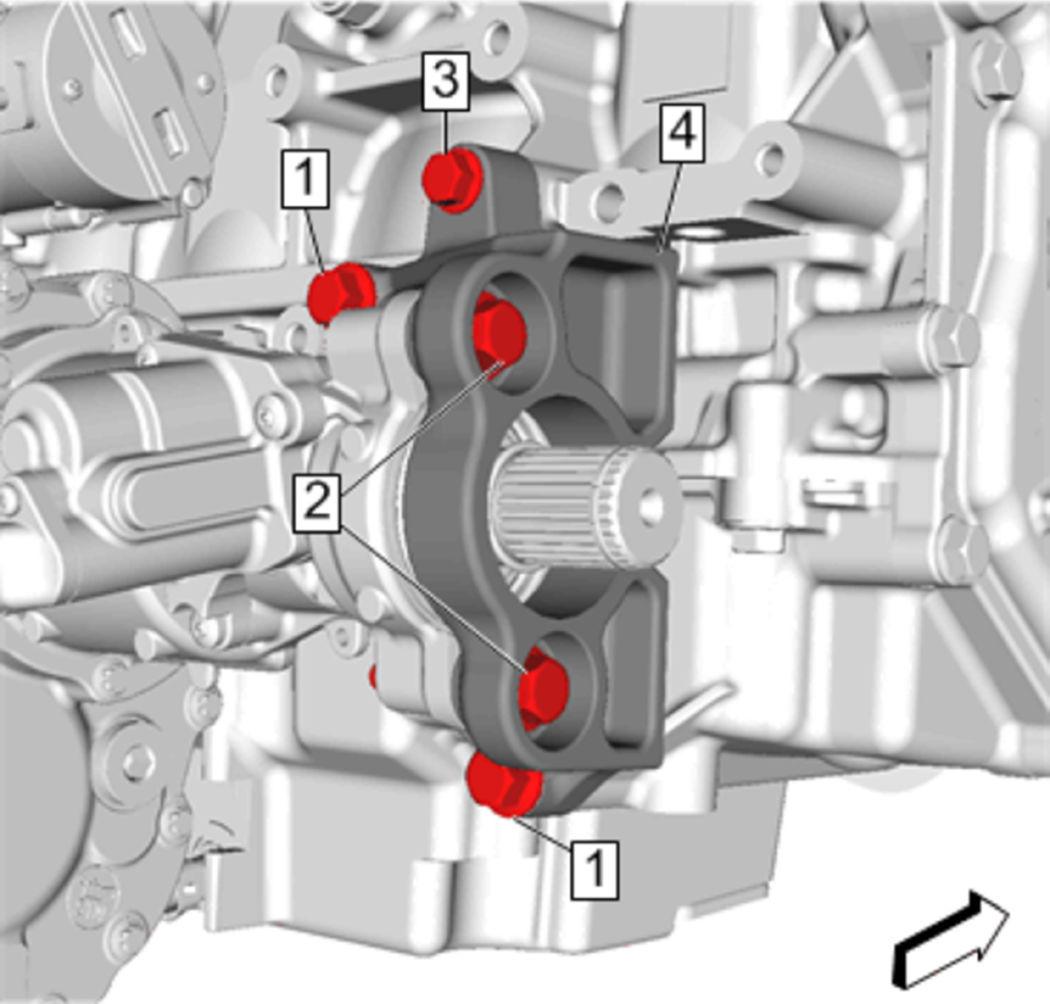

  1. GM4361199Courtesy of GENERAL MOTORS COMPANY

    Position the bracket (4) to the transfer case.

    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the transfer case bracket to transfer case bolts (2) and tighten to 58 N.m (43 lb ft).
  3. Install the transfer case bracket to engine bolts (1) and tighten to 58 N.m (43 lb ft).
  4. Install the transfer case bracket to engine bolt (3) and tighten to 22 N.m (16 lb ft).
  5. Install the right wheel drive shaft. Front Wheel Drive Half Shaft Replacement - Right Side (AWD)
