Removal Procedure

WARNING: This page is about a different variant/trim than selected.

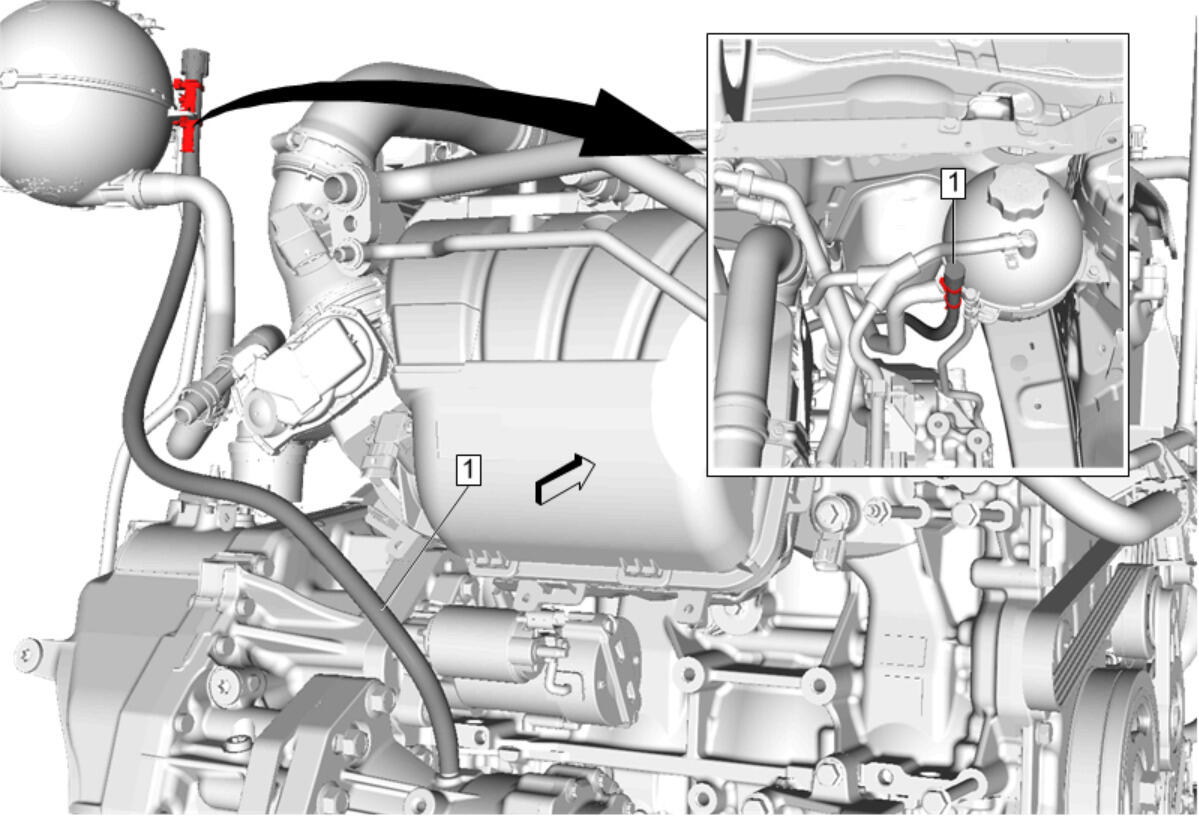

  1. GM4295191Courtesy of GENERAL MOTORS COMPANY

    Disconnect the power transfer unit vent hose assembly (1) from the radiator surge tank assembly.

  2. Raise and support the vehicle. Lifting and Jacking the Vehicle .
  3. Disconnect the power transfer vent hose assembly from the power transfer unit.
  4. Remove the power transfer unit vent hose assembly (1) from the vehicle.
