Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Raise the vehicle. Lifting and Jacking the Vehicle

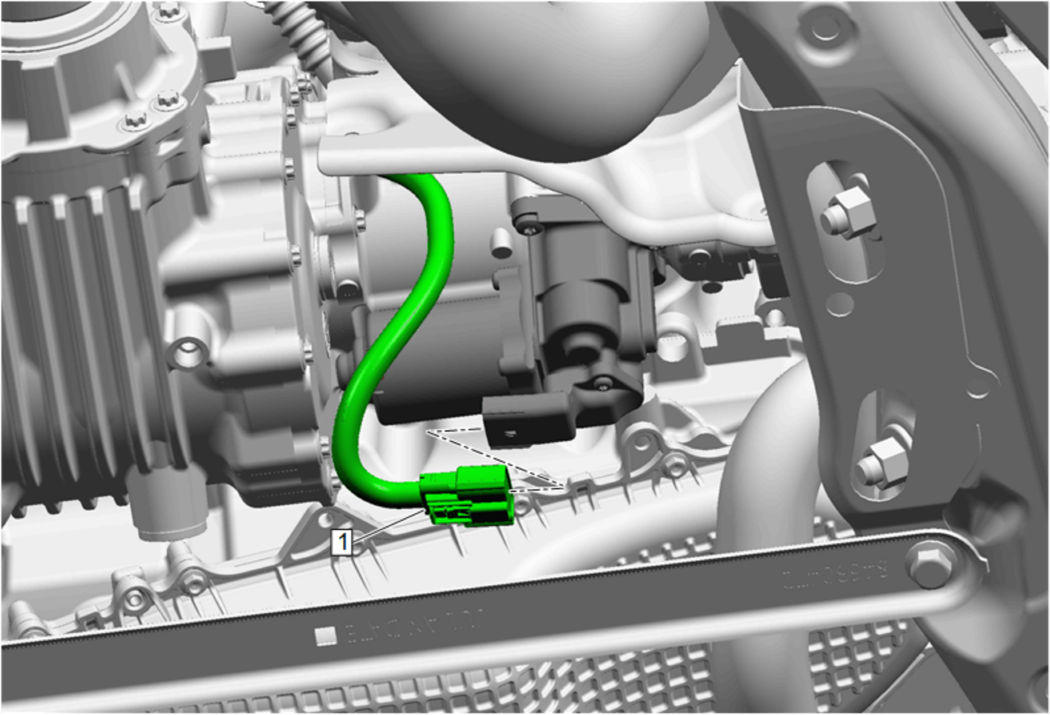

  2. GM5362349Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector. (1)

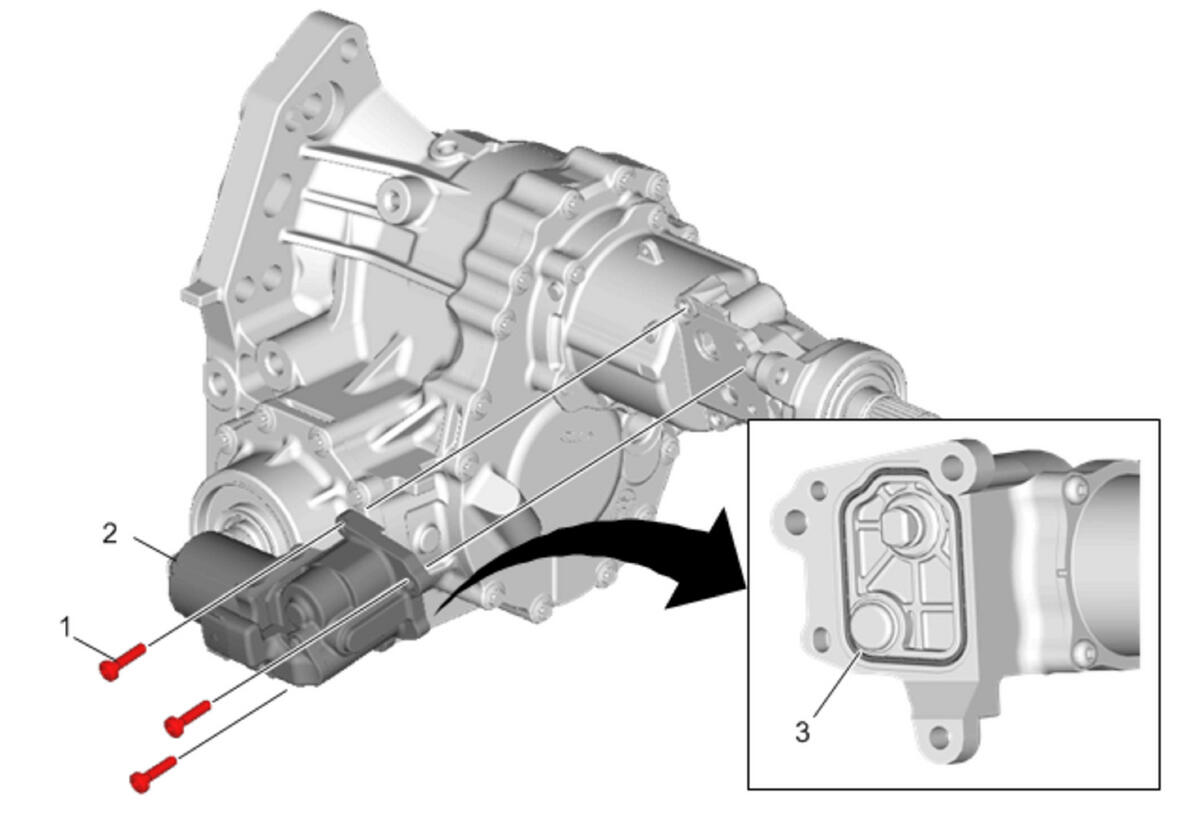

  3. GM4256460Courtesy of GENERAL MOTORS COMPANY
  4. Remove the power transfer unit shift actuator (2) from the power transfer unit. Power Transfer Unit Case Disassemble
