Installation Procedure

WARNING: This page is about a different variant/trim than selected.

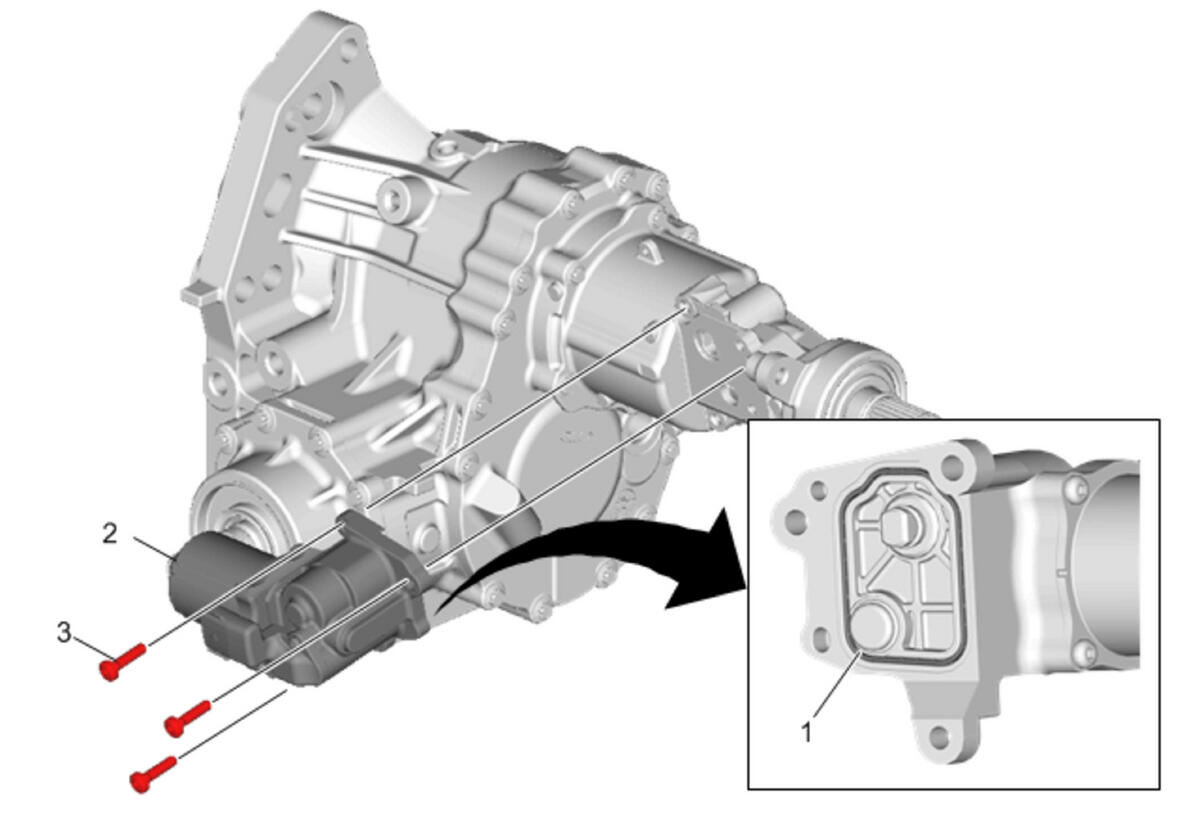

  1. GM4256462Courtesy of GENERAL MOTORS COMPANY

    Install the power transfer unit shift actuator (2) to the power transfer unit. Power Transfer Unit Case Assemble

  2. GM5362349Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector. (1)

  3. Lower the vehicle. Lifting and Jacking the Vehicle
