Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Install the NEW power transfer unit intermediate drive shaft seal (1) using the supplied seal installer (2).
Courtesy of GENERAL MOTORS COMPANY

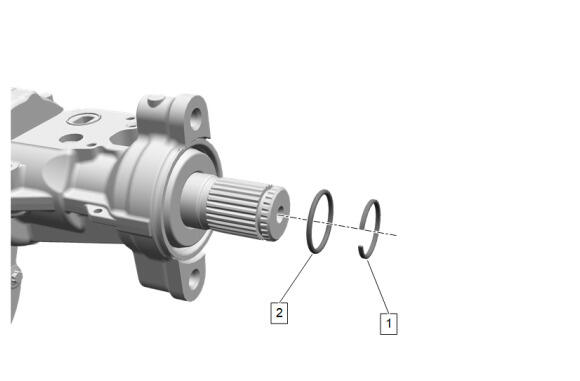

Install the NEW Power Transfer Unit Half Shaft Seal O-Ring (2).
Install the NEW Power Transfer Unit Intermediate Drive Shaft Clip (1).
Install the power transfer unit to the vehicle. Power Transfer Unit Case Replacement
