Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

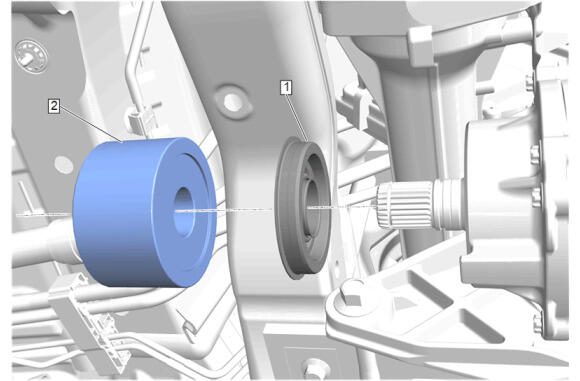

Install the NEW output shaft seal (1) using the supplied seal installer (2).
Courtesy of GENERAL MOTORS COMPANY

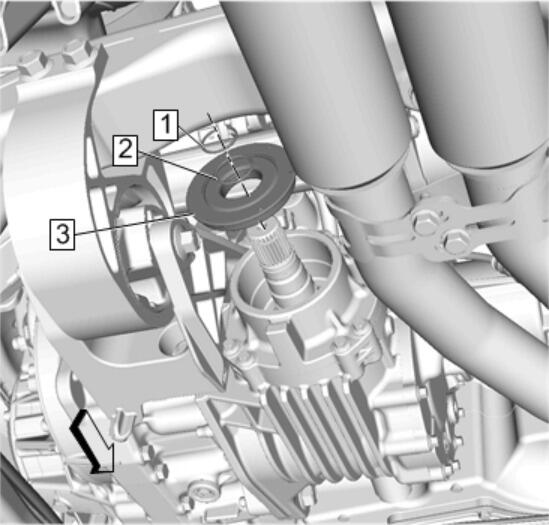

Install the NEW transfer unit propeller shaft O-ring (2).
Install the NEW transfer unit propeller shaft retainer (1).
Install the propeller shaft. Two-Piece Propeller Shaft Replacement
Check power transfer case fluid level. Refer to Approximate Fluid Capacities , and Adhesives, Fluids, Lubricants, and Sealers .
