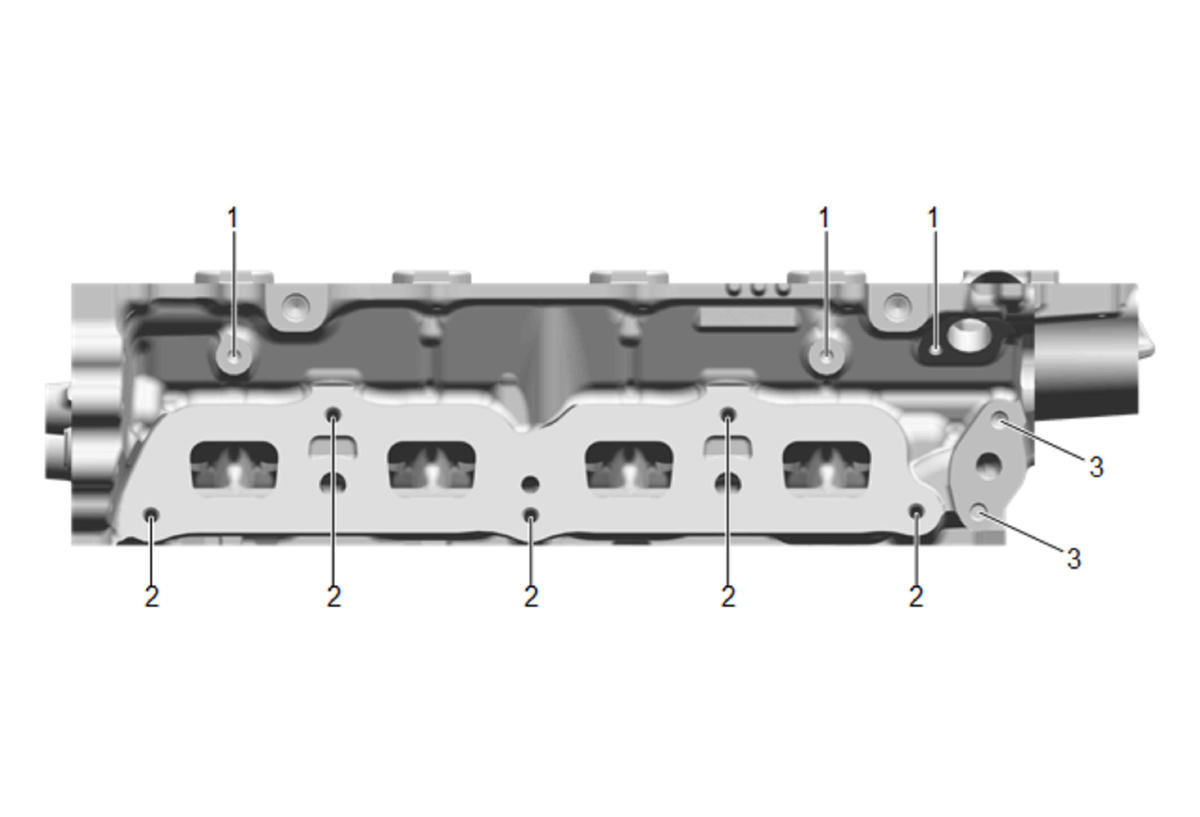

Cylinder Head Left Side View - Exhaust Manifold Deck Face
WARNING: This page is about a different variant/trim than selected.
Cylinder Head Left Side View - Exhaust Manifold Deck Face
| Service Call Out | Thread Size | Insert | Drill | Counterbore Tool | Tap | Driver | Drill Depth (Maximum) | Tap Depth (Maximum) | ||
|---|---|---|---|---|---|---|---|---|---|---|
| EN 42385 - 850 | MM | (IN) | MM | (IN) | ||||||
| 1 | M6 x 1.0 | 205 | 201 | 202 | 203 | 204 | 23.0 | 0.907 | 23.0 | 0.907 |
| 2 | M8 x 1.25 | 181213 | 206 | 207 | 208 | 209 | 29.0 | 1.14 | 29.0 | 1.14 |
| 3 | M8 x 1.25 | 210 | 206 | 207 | 208 | 209 | 29.0 | 1.14 | 29.0 | 1.14 |
