Water Pump Removal
WARNING: This page is about a different variant/trim than selected.

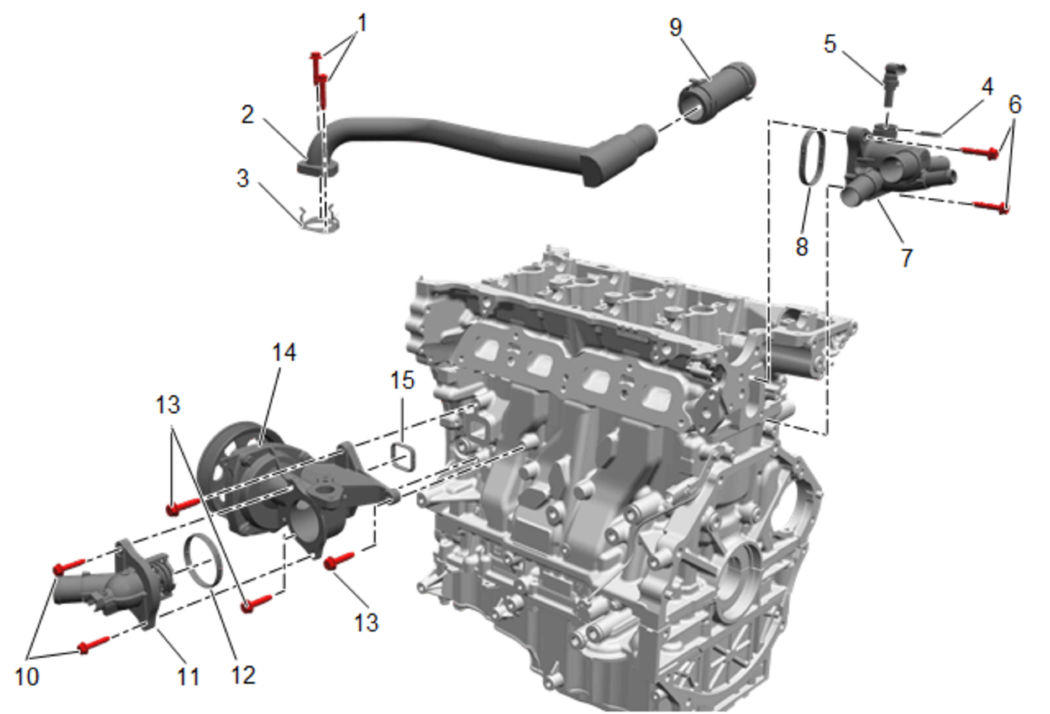

| Callout | Component Name |
|---|---|
| 1 | Thermal Bypass Pipe Bolt (Qty: 2) |
| 2 | Thermal Bypass Pipe |
| 3 | Thermal Bypass Pipe Gasket
NOTE:
Discard the gasket. |
| 4 | Engine Coolant Temperature Sensor Retaining Clip |
| 5 | Engine Coolant Temperature Sensor |
| 6 | Water Outlet Assembly Bolt (Qty: 2) |
| 7 | Water Outlet Assembly |
| 8 | Water Outlet Assembly Gasket Seal
NOTE:
Discard the gasket. |
| 9 | Water Outlet Hose |
| 10 | Thermostat Assembly Bolt (Qty: 2) |
| 11 | Thermostat Assembly |
| 12 | Thermostat Assembly Gasket Seal
NOTE:
Discard the gasket. |
| 13 | Water Pump Assembly Bolt (Qty: 3) |
| 14 | Water Pump Assembly |
| 15 | Water Pump Assembly Seal
NOTE:
Discard the gasket. |
