Installation Procedure
WARNING: This page is about a different variant/trim than selected.

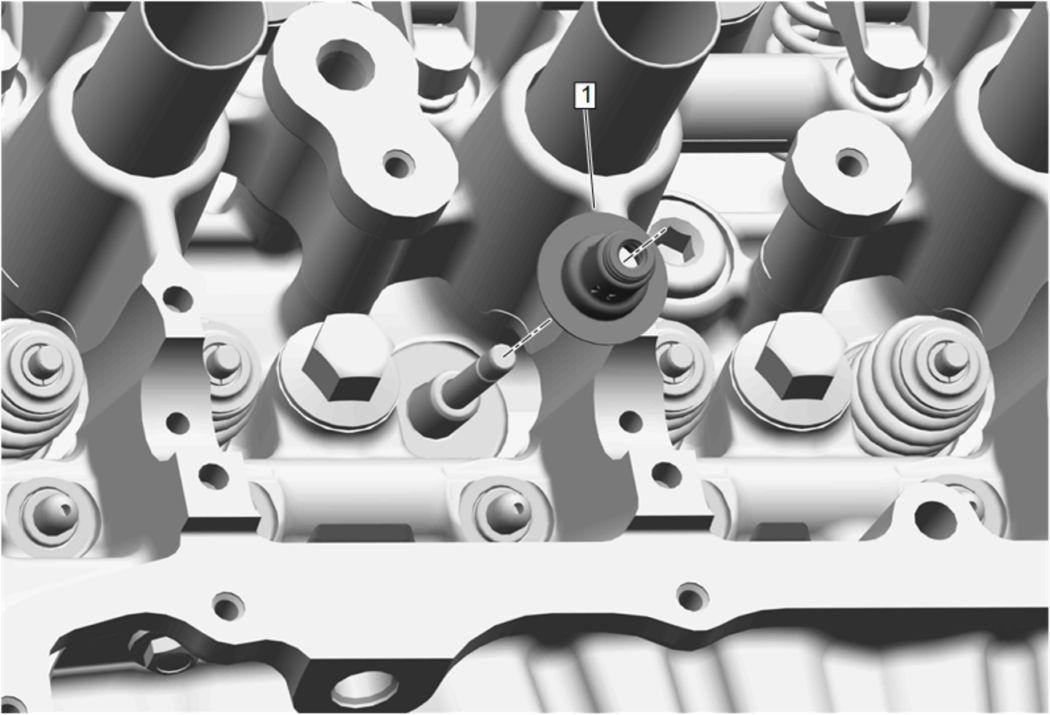

Using the EN-37281-A Valve Guide Seal Remover, install a NEW valve stem oil seal (1). Ensure the valve stem oil seal is fully seated onto the valve guide.

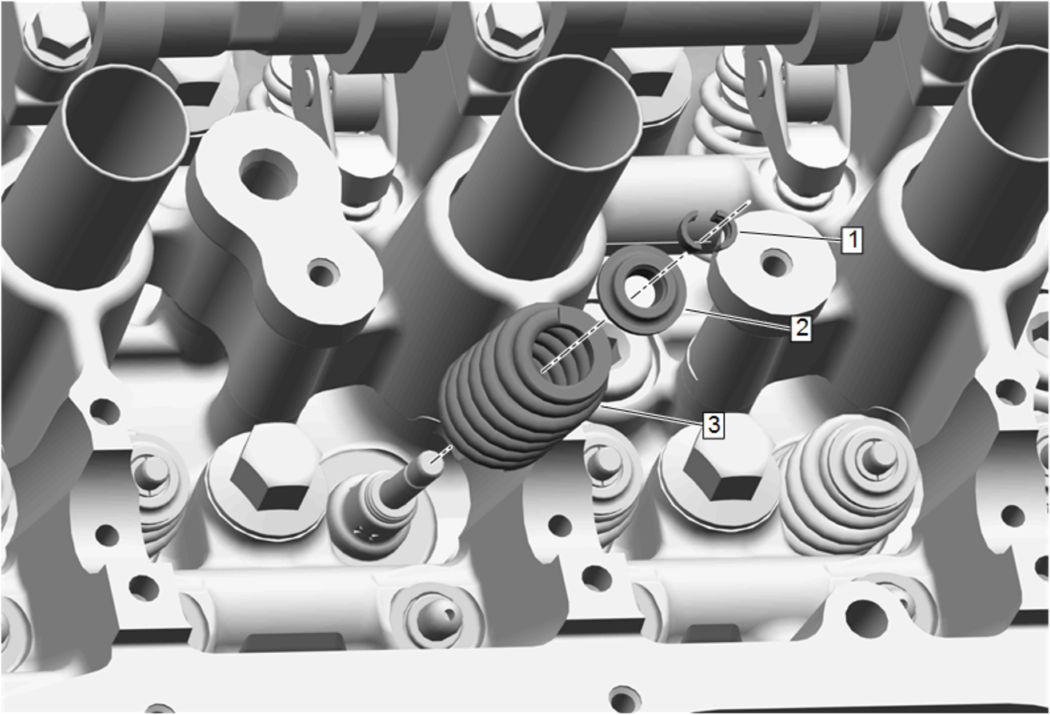

Valve Spring (3) - Install
- Valve Spring Retainer (2) - Install
- Compress the valve spring using the valve spring compressor.
- Valve Stem Key (1) - Install [2x]
- Disconnect the air hose and remove the EN-35667-A Leakdown Adapter.

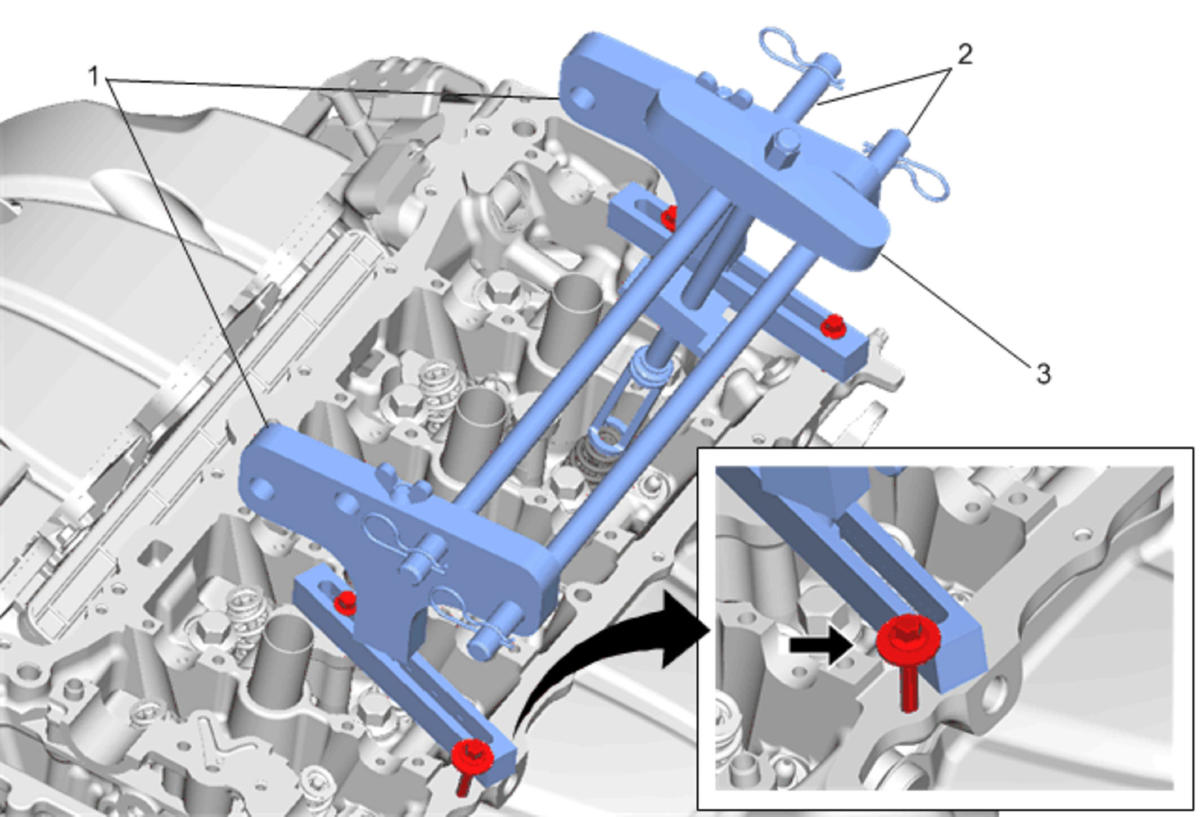

Remove the EN-50717 Valve Spring Compressor and EN-50717 Valve Spring Compressor adapter set from the cylinder head.
- Spark Plug - Install [4x] - Gas Engine Ignition Spark Plug Replacement
- Valve Rocker Arm - Install (16) - Valve Rocker Arm Replacement (Exhaust) , or Valve Rocker Arm Replacement (Intake)
