Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

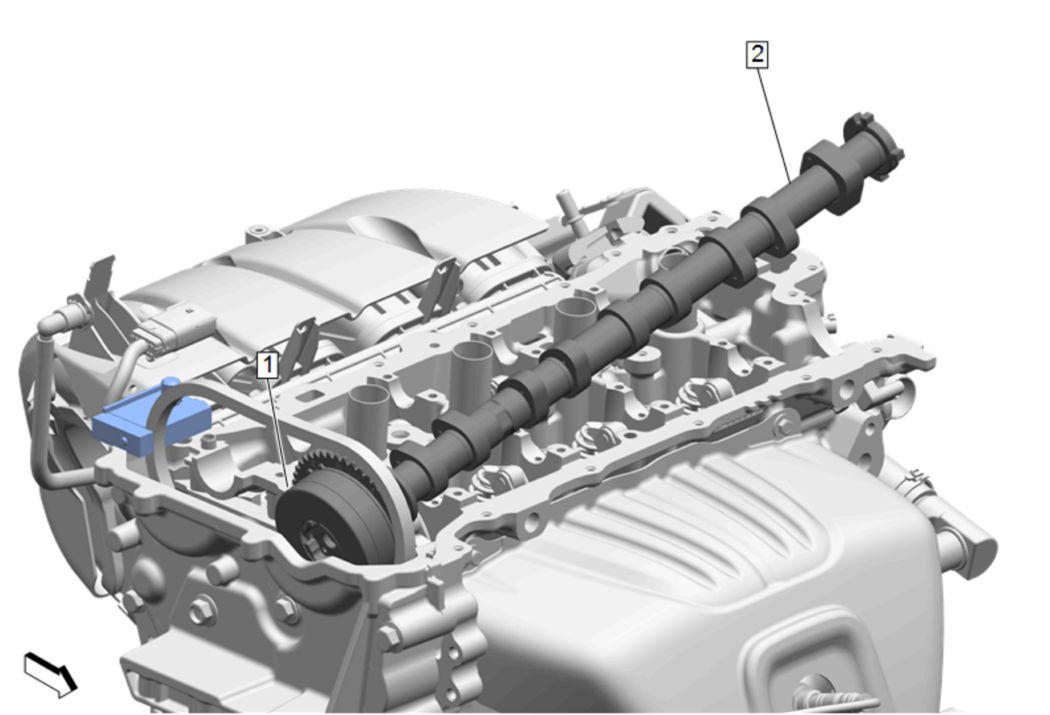

Remove the intake camshaft position actuator (1) and camshaft (2). Camshaft Position Actuator and Intake Camshaft Replacement
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Keep all of the valve rocker arms in order so that they can be reinstalled in their original position.

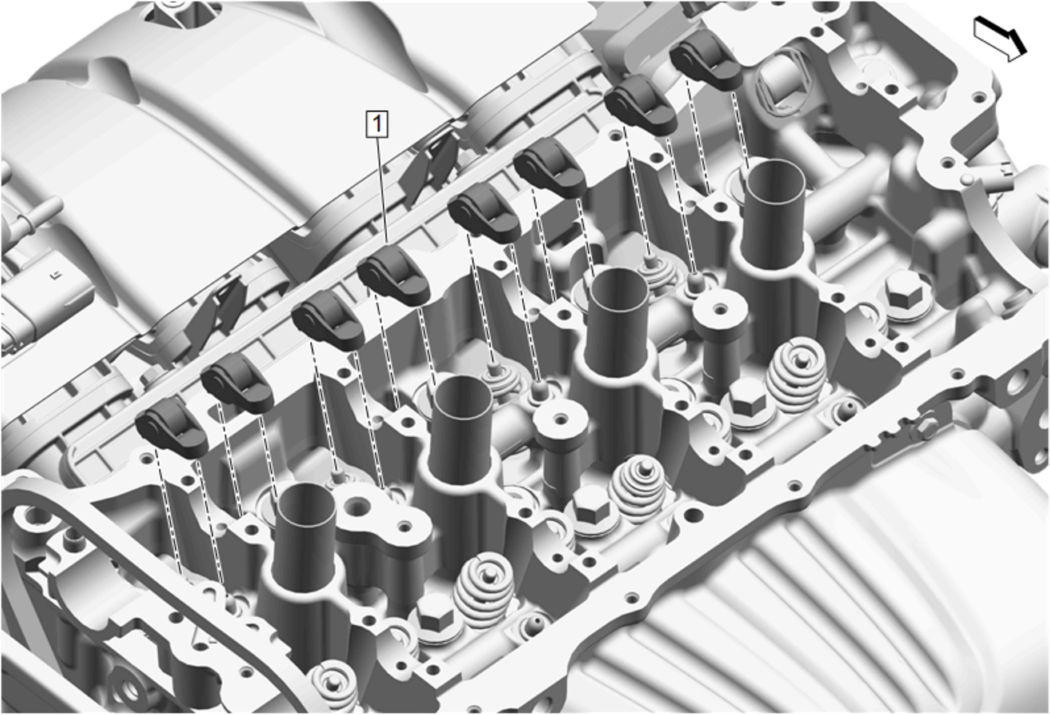

Valve Rocker Arm (1) - Remove [8x]
