Oil Pan Removal
WARNING: This page is about a different variant/trim than selected.

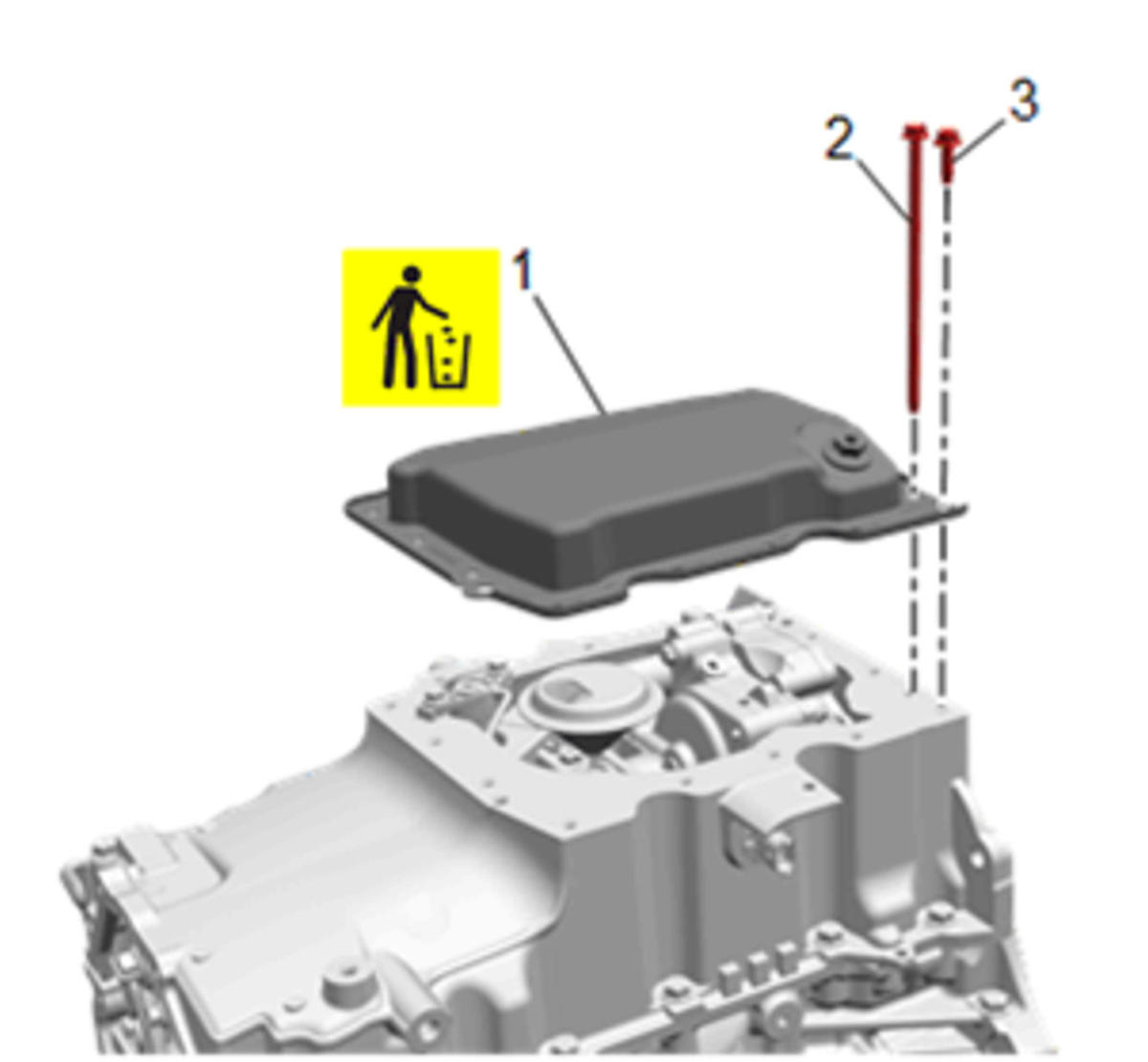

Remove the lower oil pan bolts (3) and two oil pan to lower crankcase bolts (2).
- Lower Oil Pan (1) - Remove and DISCARD
Remove the oil pump flow control valve cover (3) and bolts (1, 2, 4).
Remove the oil filter adapter (1).

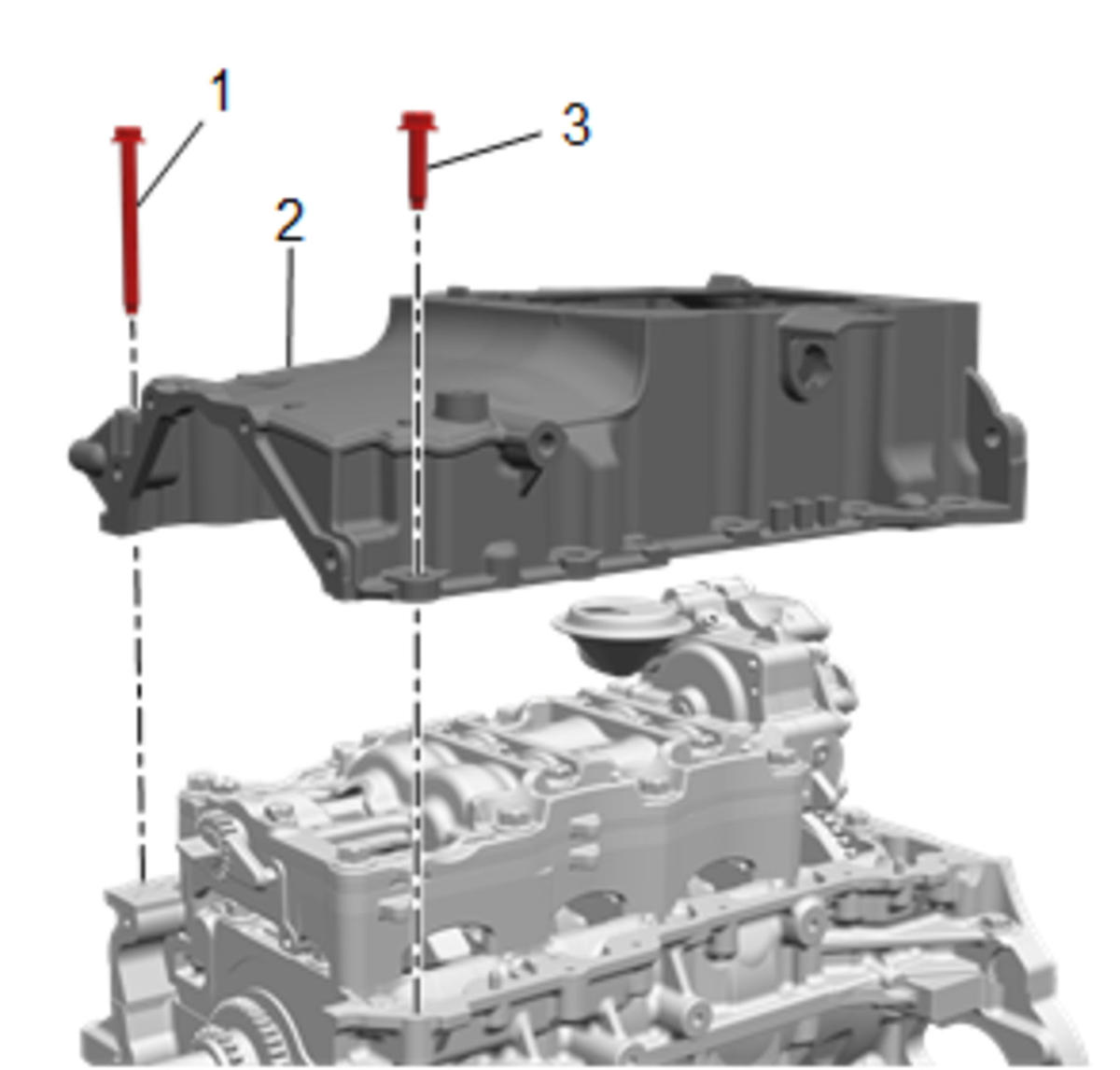

Remove the upper oil pan (2) and bolts (1, 3).
CAUTION:
Always replace the used oil pan with a new oil pan. The lower oil pan becomes damaged during removal and oil leaks may occur if it is not replaced with a new oil pan.
