Lower Crankcase Installation

Special Tools

• EN 45059  Angle Meter
• EN-51380  Seal Installer

For equivalent regional tools, refer to Special Tools .

1. Courtesy of GENERAL MOTORS COMPANY

   NOTE:

   Crankshaft bearings MUST be separated, marked, or organized in a way to ensure installation to their original location and position, when suitable for use.

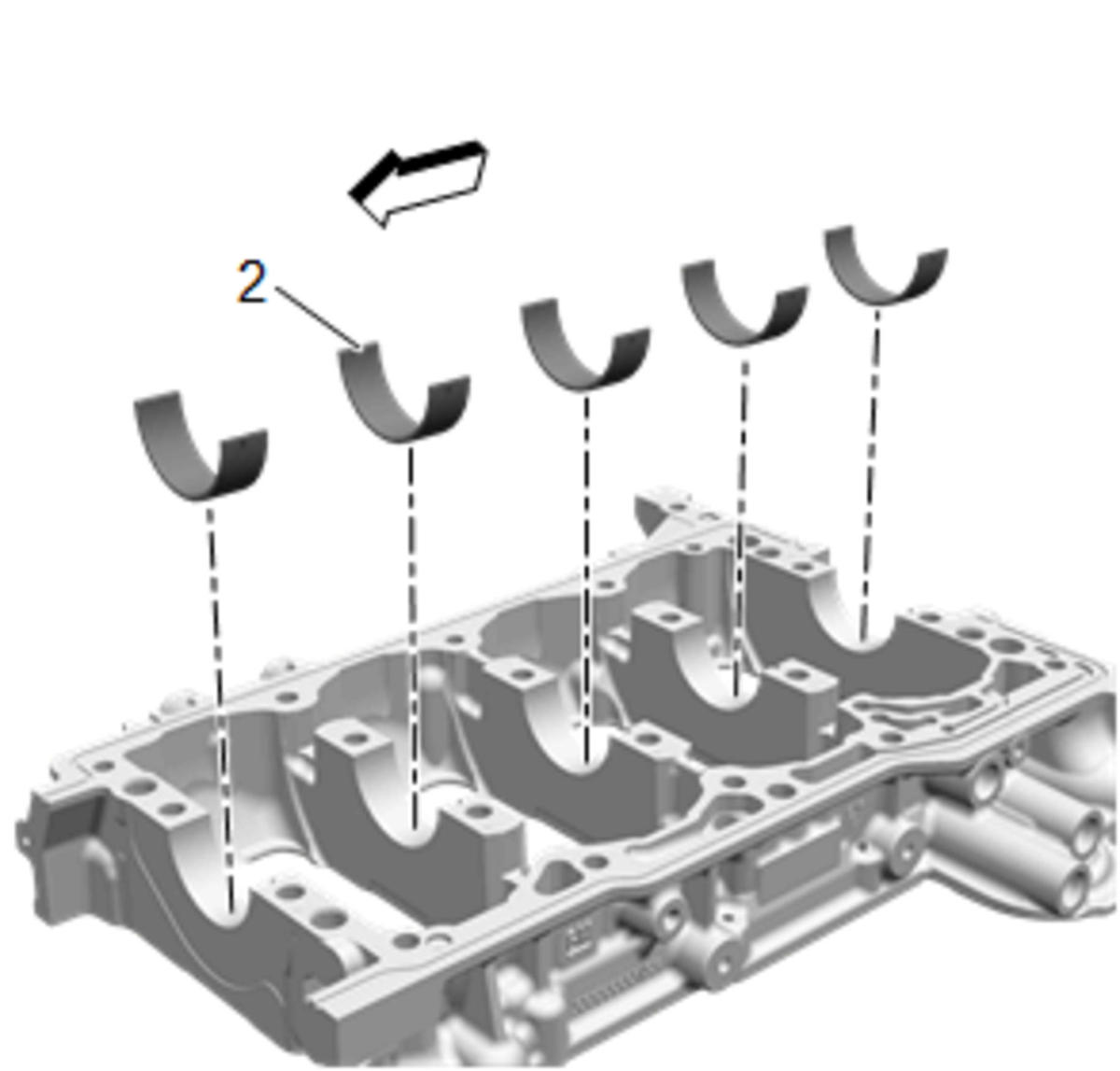

   Install the lower bearing halves (2), without grooves, into the lower crankcase (1). Apply oil to bearing surfaces.

2. Courtesy of GENERAL MOTORS COMPANY

   Ensure proper use of room temperature vulcanizing (RTV) sealant. Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant

NOTE:
• The block assembly surface must be free of contamination prior to applying the sealer.
• Install and align the bedplate to block within 20 minutes of applying the sealer.
• The bedplate must be fastened to final torque specification within 60 minutes of applying the sealer.

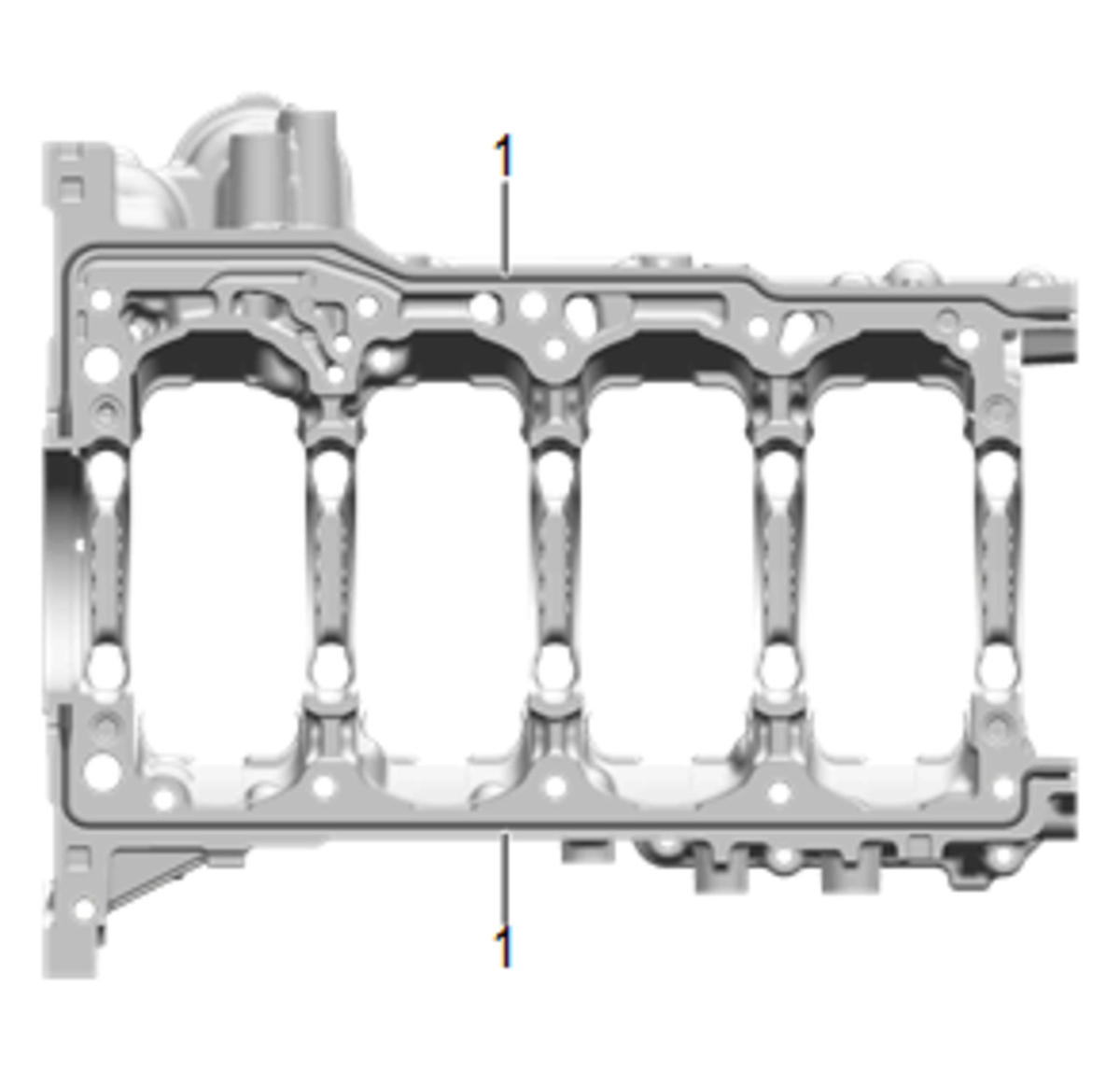

3. Apply a 4.25 mm bead of sealer directly in the groove (1) of the block to bedplate mating surfaces. Refer to Adhesives, Fluids, Lubricants, and Sealers .

4. Courtesy of GENERAL MOTORS COMPANY

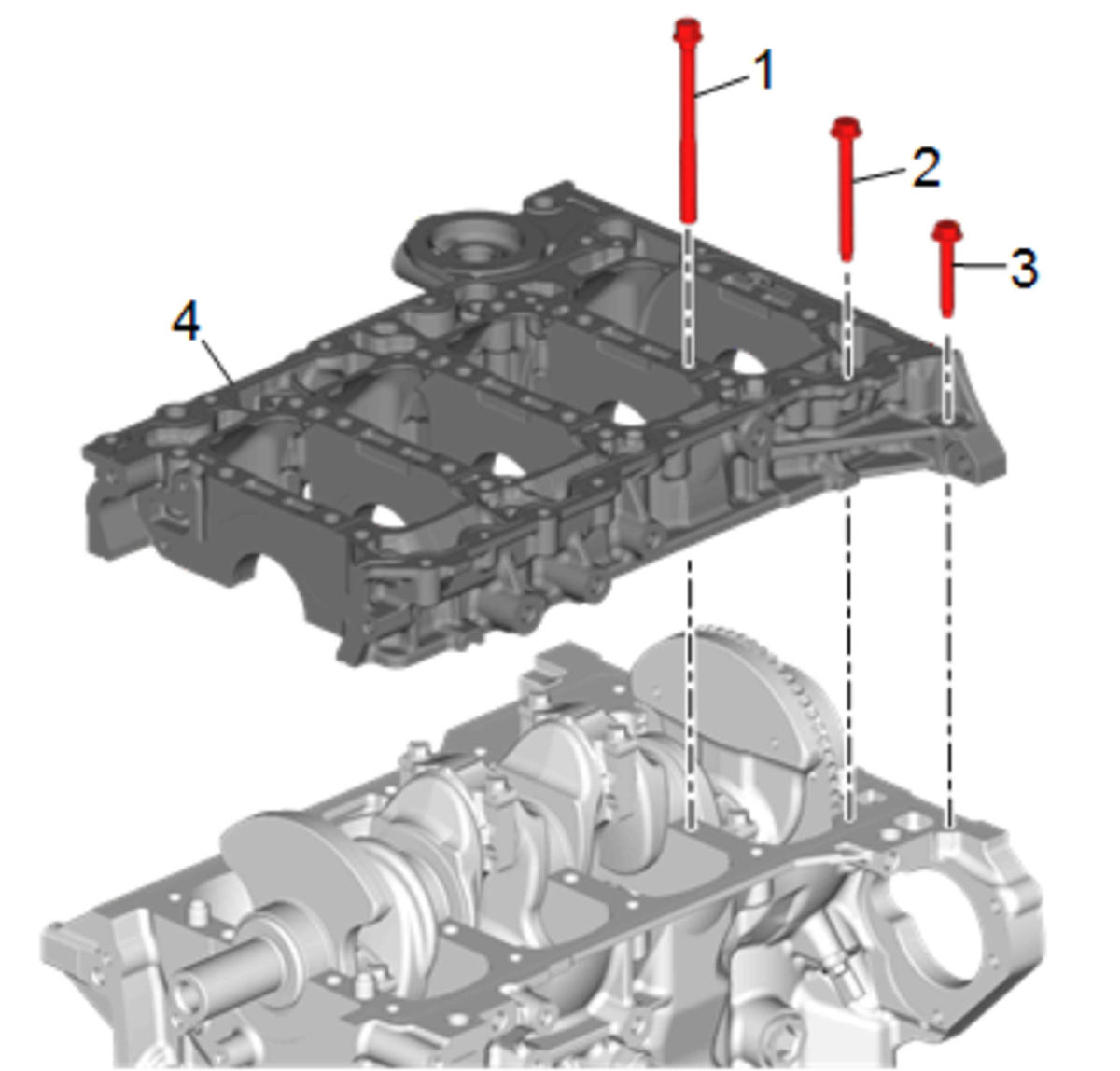

   Install the lower crankcase (4). Tap gently into place with a suitable tool if necessary. Ensure it is aligned properly on the dowels.

CAUTION:

This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

5. Install the NEW M10 x 2.00 x 116 lower crankcase bolts (1) at the inner bolt locations finger tight.
6. Install the single M8 x 1.25 x 50 lower crankcase bolt (3) finger tight.
7. Install the M8 x 1.25 x 80 lower crankcase bolts (2) at the crankcase perimeter finger tight.

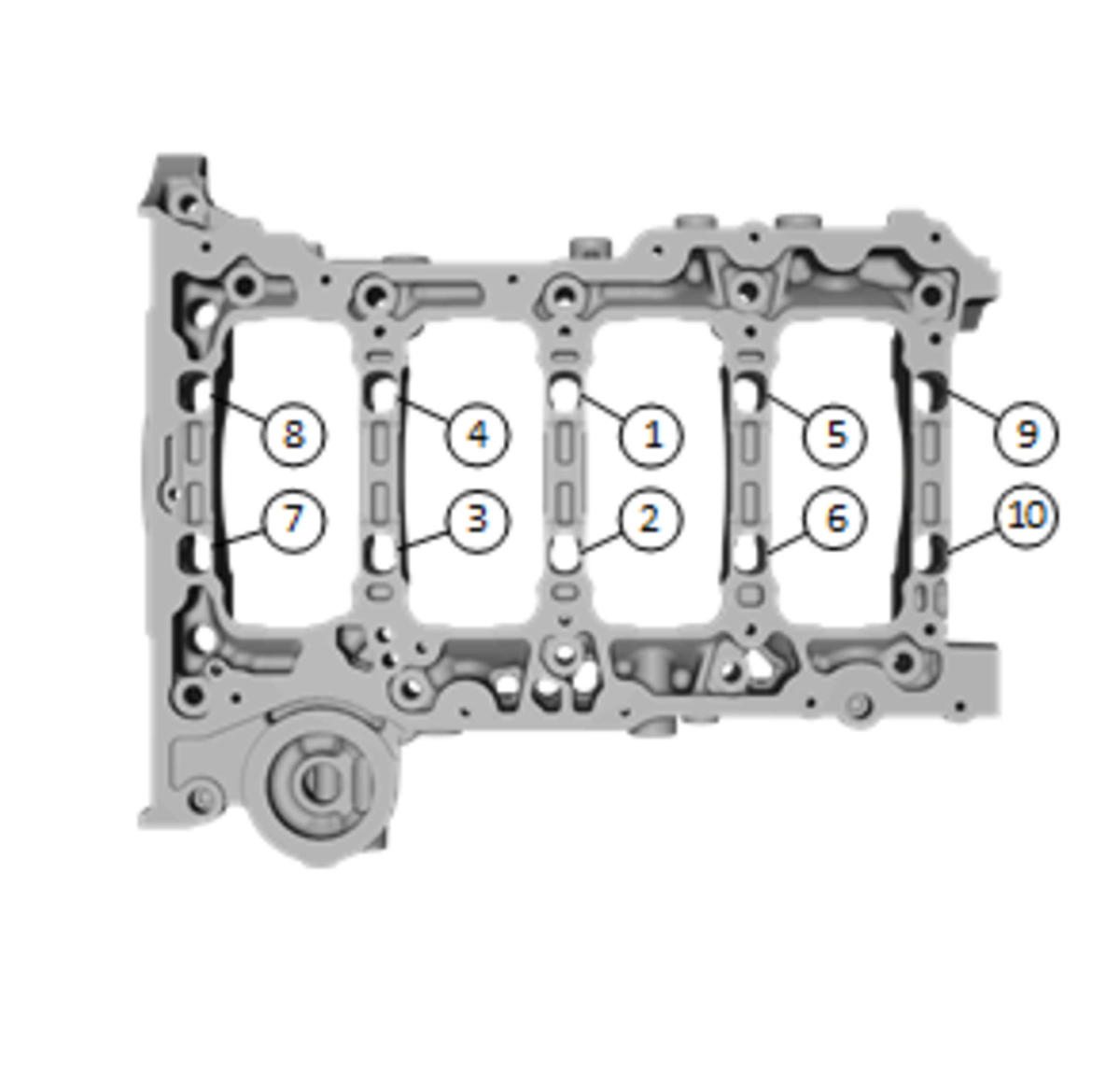

8. Fig 1: Identifying Lower Crankshaft Bearing Bolts With Tightening Sequence

   Courtesy of GENERAL MOTORS COMPANY
   CAUTION:

   Refer to Fastener Caution .

   Tighten the NEW M10 x 2.00 x 116 lower crankcase bolts in sequence using the following procedure:

   1. Tighten the lower crankcase bolts a first pass in sequence to 20 N.m (15 lb ft).
   2. Tighten the lower crankcase bolts a final pass in sequence using the EN 45059  meter an additional 140 degrees.

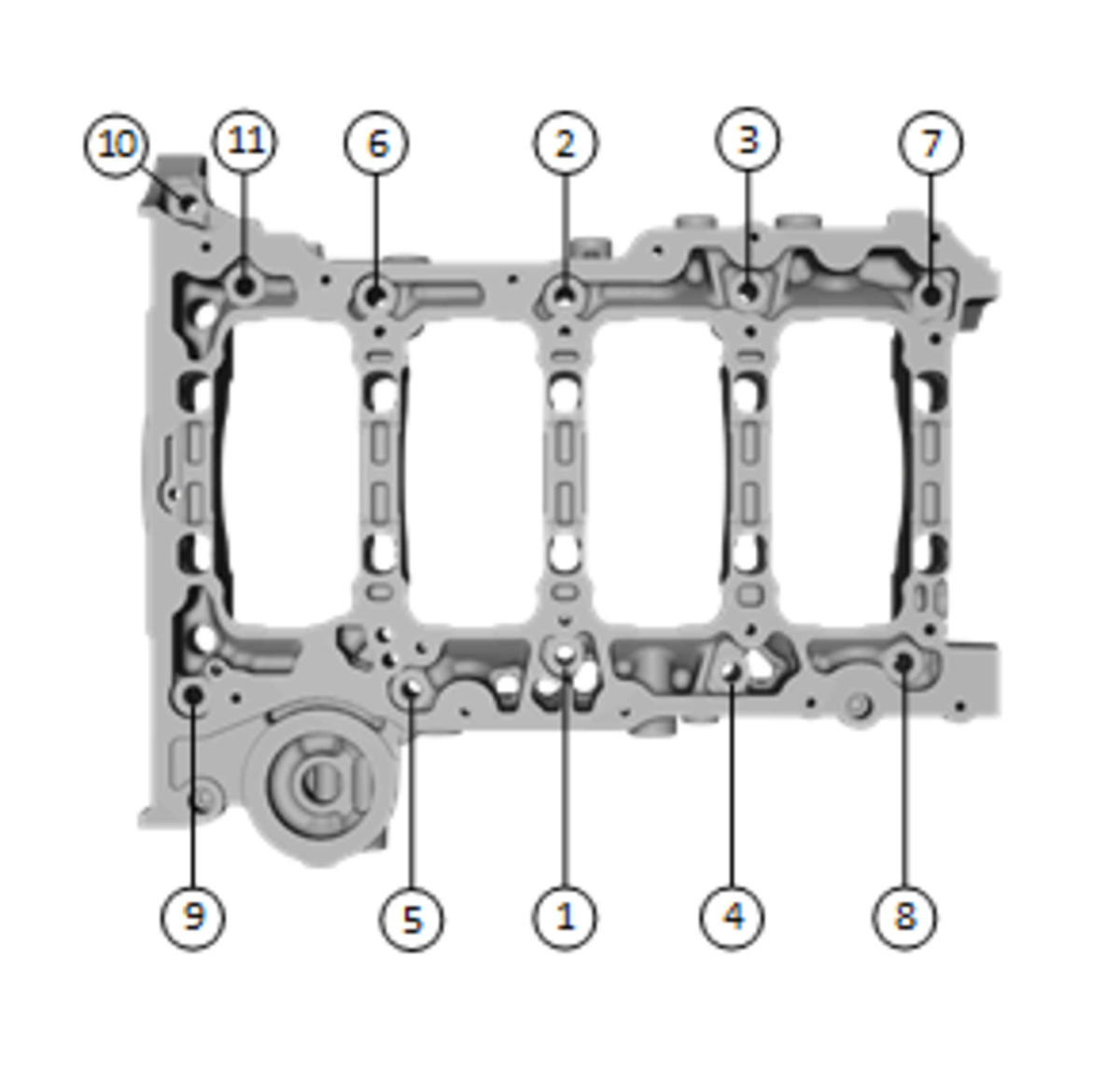

9. Fig 2: Identifying Lower Crankcase Perimeter Bolts With Tightening Sequence

   Courtesy of GENERAL MOTORS COMPANY

   Tighten the lower crankcase bolts at the crankcase perimeter in sequence to 25 N.m (18 lb ft).

10. Courtesy of GENERAL MOTORS COMPANY

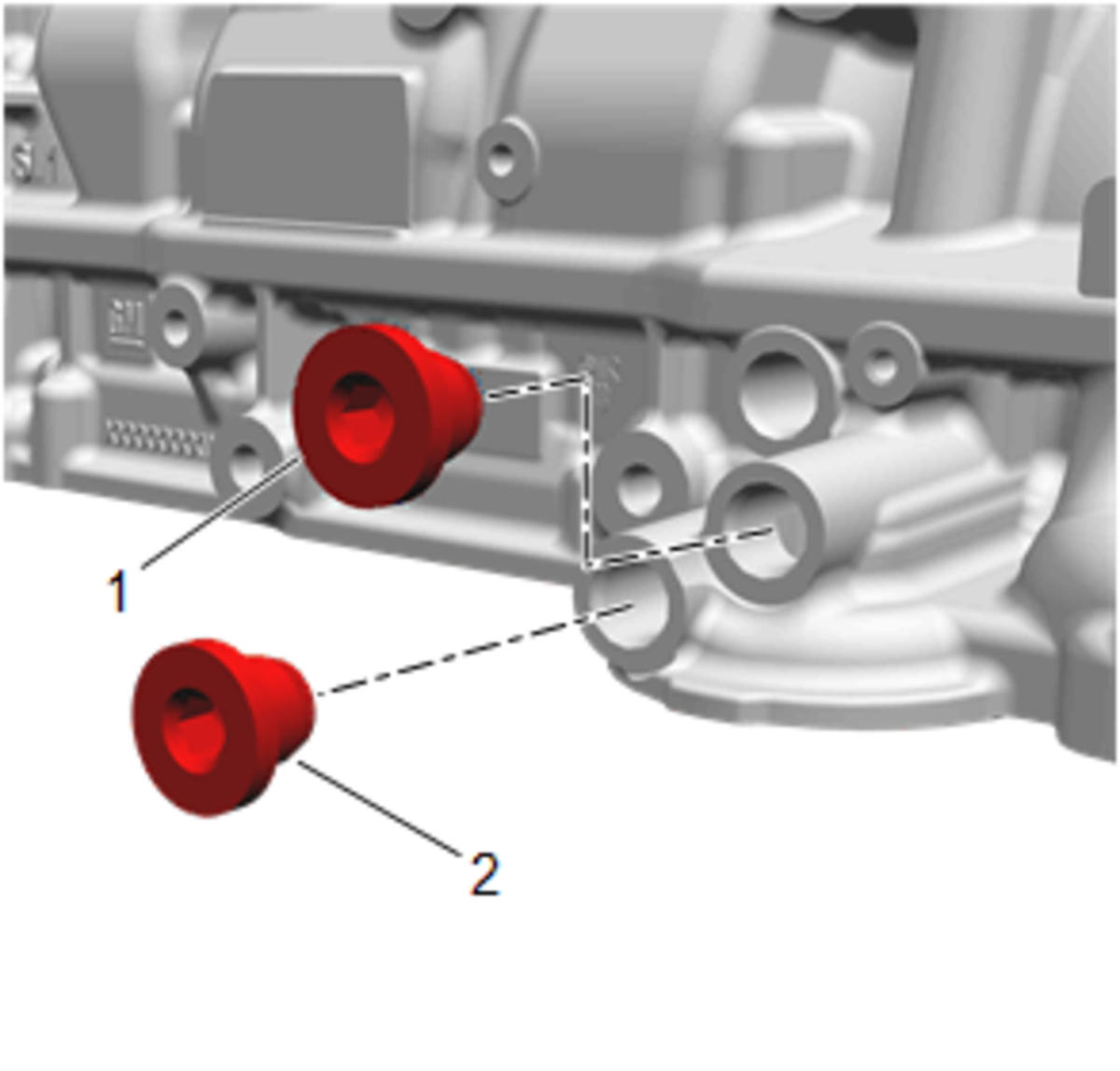

    Install the engine oil gallery plugs (1, 2). Tighten the plugs to 65 N.m (48 lb ft).

11. Courtesy of GENERAL MOTORS COMPANY

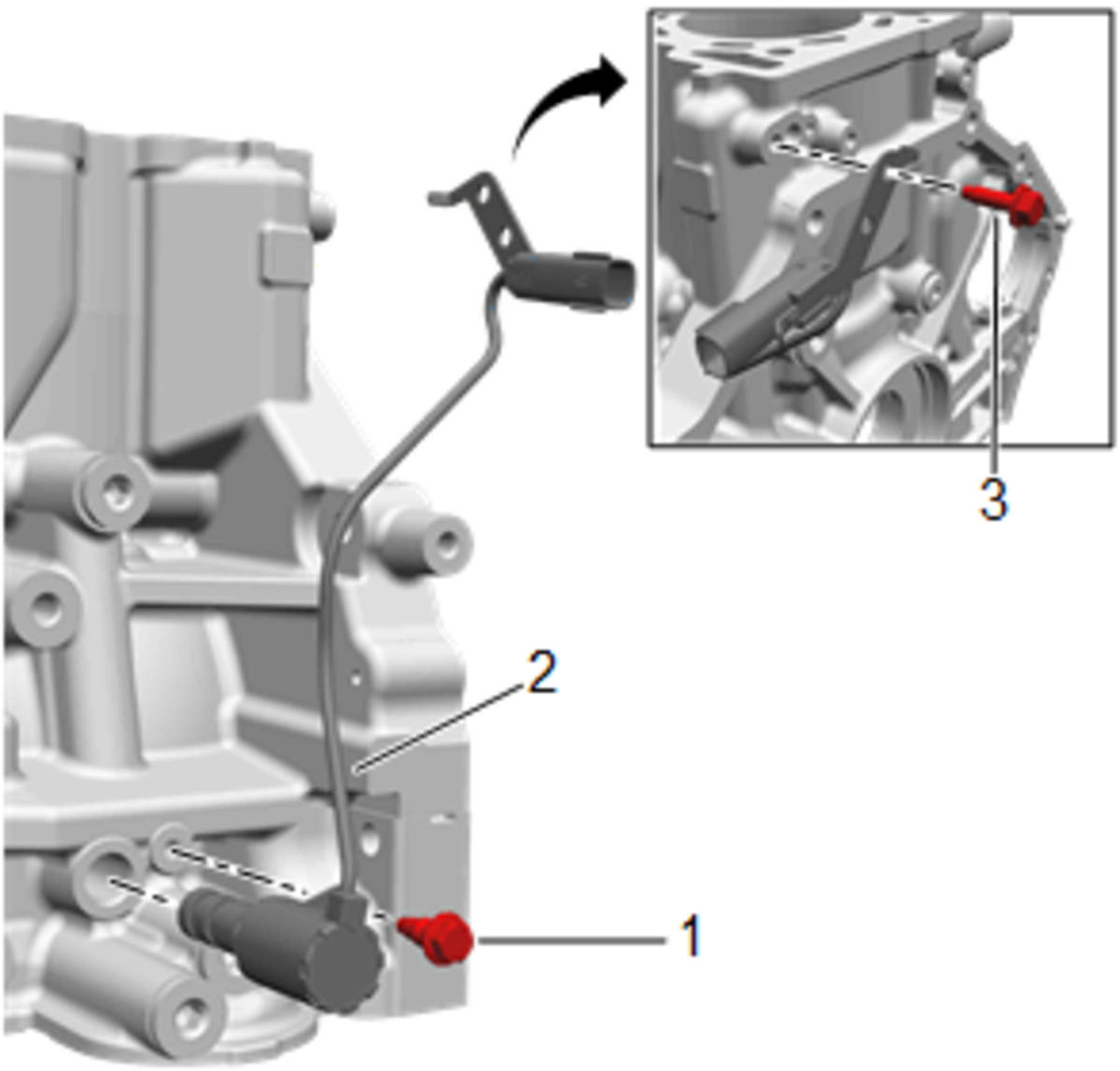

    Install the oil pump flow control valve (2) and bolts (1, 3) tighten the bolts to 10 N.m (89 lb in).

12. Courtesy of GENERAL MOTORS COMPANY

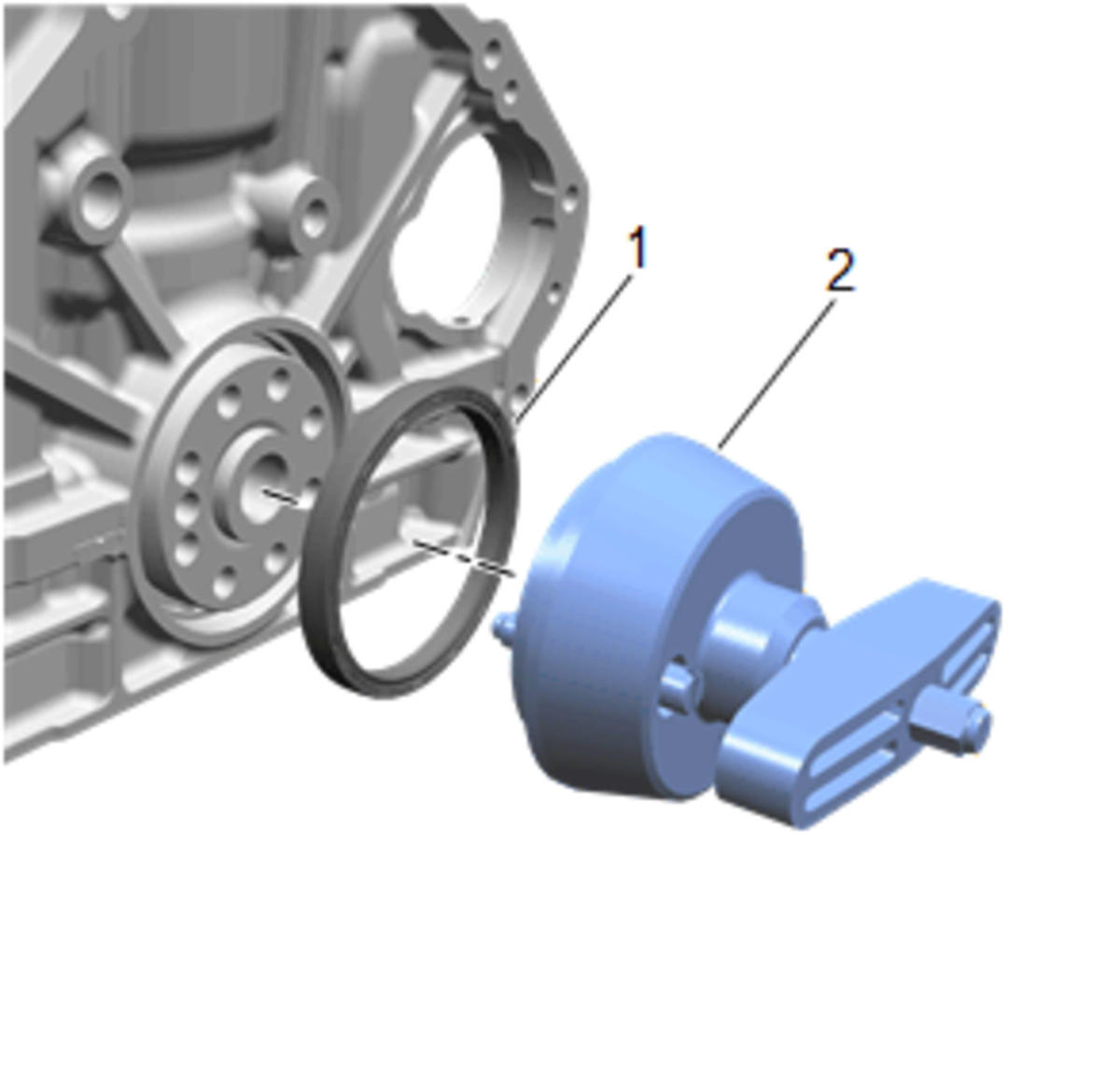

    Using EN-51380  installer (2), install the crankshaft rear oil seal (1) flush or recessed up to 0.5 mm to block.

13. Rotate the crankshaft to ensure that it moves freely and does not bind.
14. Measure and record the crankshaft endplay. Refer to Engine Mechanical Specifications .
