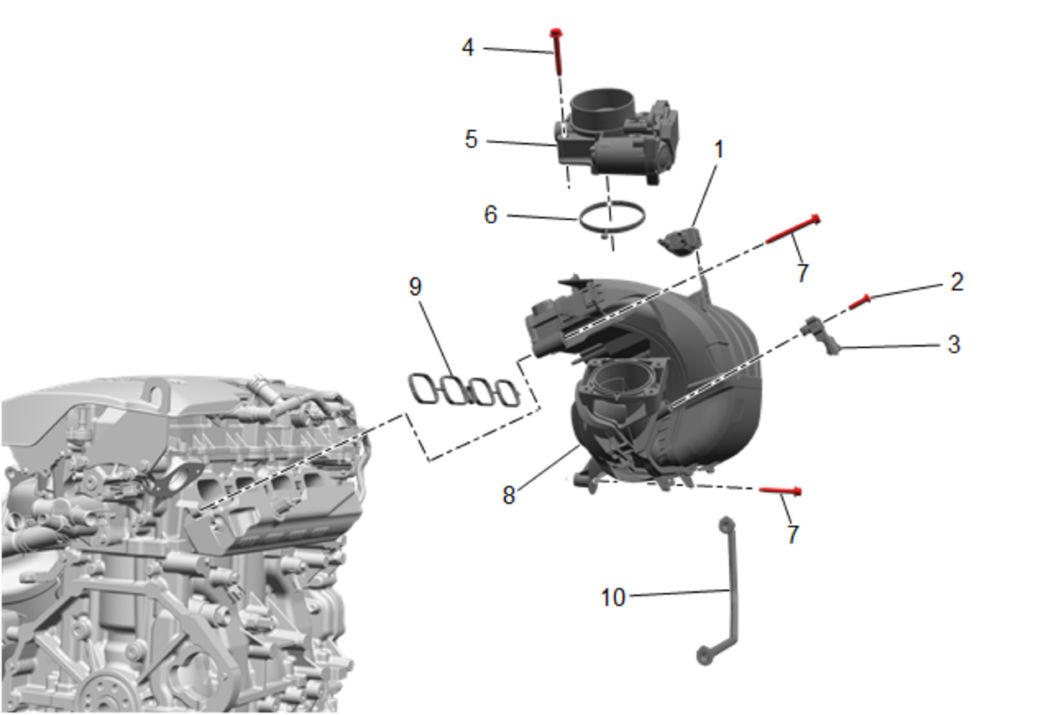

Intake Manifold and Components
| Callout | Component Name |
|---|---|
| 1 | Evap Canister Valve |
| 2 | MAP Sensor Bolt |
| 3 | MAP Sensor |
| 4 | Throttle Body Bolts (Qty: 4) |
| 5 | Throttle Body |
| 6 | Throttle Body Seal
NOTE:
Discard the seal. |
| 7 | Intake Manifold Bolts (Qty: 6) |
| 8 | Intake Manifold |
| 9 | Intake Manifold Gasket |
| 10 | Evap Canister Purge Tube Assembly |
