Installation Procedure
WARNING: This page is about a different variant/trim than selected.
- Pre-fill the low pressure chamber with clean engine oil. Do not install the hydraulic lash adjusters without filling the low pressure chamber. Adhesives, Fluids, Lubricants, and Sealers
- Apply clean engine oil to the outer surface of the hydraulic valve adjusters prior to installation. Adhesives, Fluids, Lubricants, and Sealers

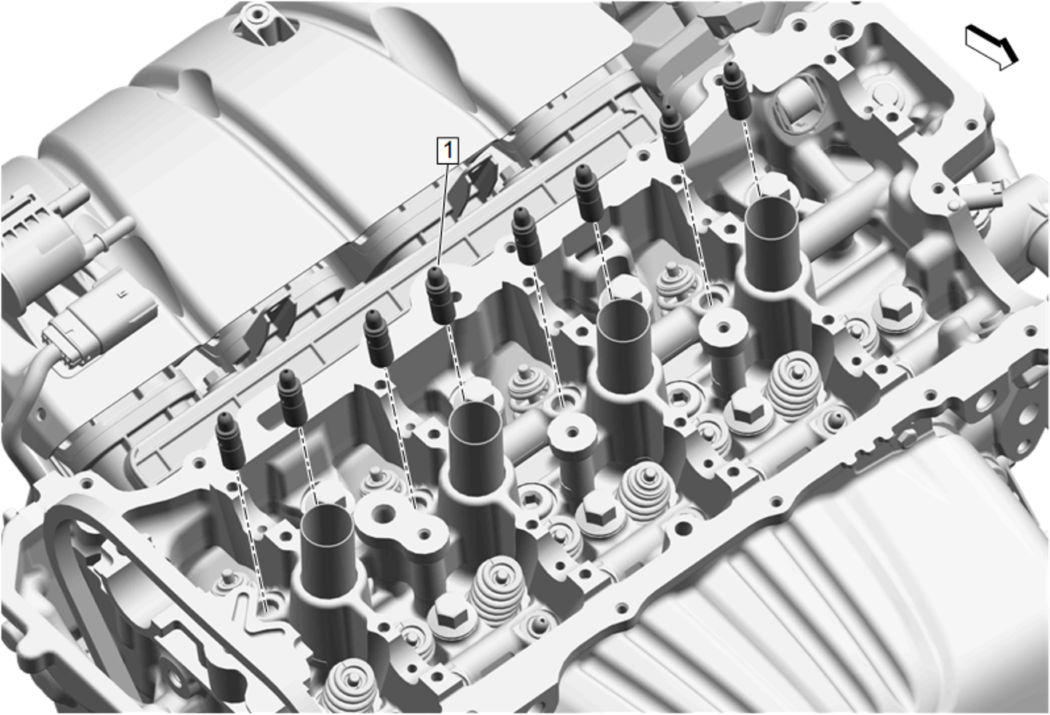

Hydraulic Valve Lash Adjuster (1) - Install [8x]
Valve Rocker Arm (1) - Install [8x] - Valve Rocker Arm Replacement (Exhaust) , or Valve Rocker Arm Replacement (Intake)
