Exhaust Manifold Installation
WARNING: This page is about a different variant/trim than selected.

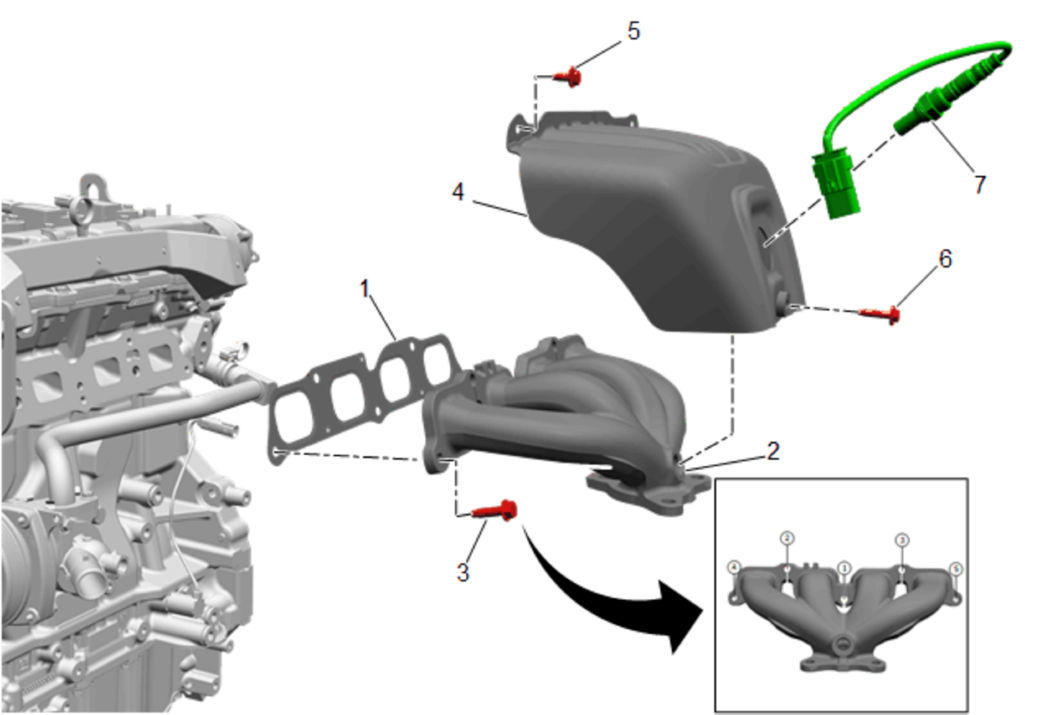

| Callout | Component Name |
|---|---|
| 1 | Exhaust Manifold Gasket |
| 2 | Exhaust Manifold |
| 3 | Exhaust Manifold Bolt (Qty: 5)
CAUTION:
Refer to Fastener Caution .
CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.
NOTE:
Fasteners have adhesive patch and must be tightened to final torque within 5 minutes.
NOTE:
Tighten the NEW exhaust manifold to cylinder head bolts three passes in sequence. Tighten 20 N.m (15 lb ft) |
| 4 | Exhaust Manifold Heat Shield |
| 5 | Exhaust Manifold Heat Shield Bolt (Qty: 2) Tighten 14 N.m (124 lb in) |
| 6 | Exhaust Manifold Heat Shield Bolt (Qty: 1) Tighten 14 N.m (124 lb in) |
| 7 | Oxygen Sensor
CAUTION:
Refer to Component Fastener Tightening Caution .
NOTE:
Coat the threads of the oxygen sensor with anti-seize. Refer to Adhesives, Fluids, Lubricants, and Sealers . Tighten 42 N.m (31 lb ft) |
