Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

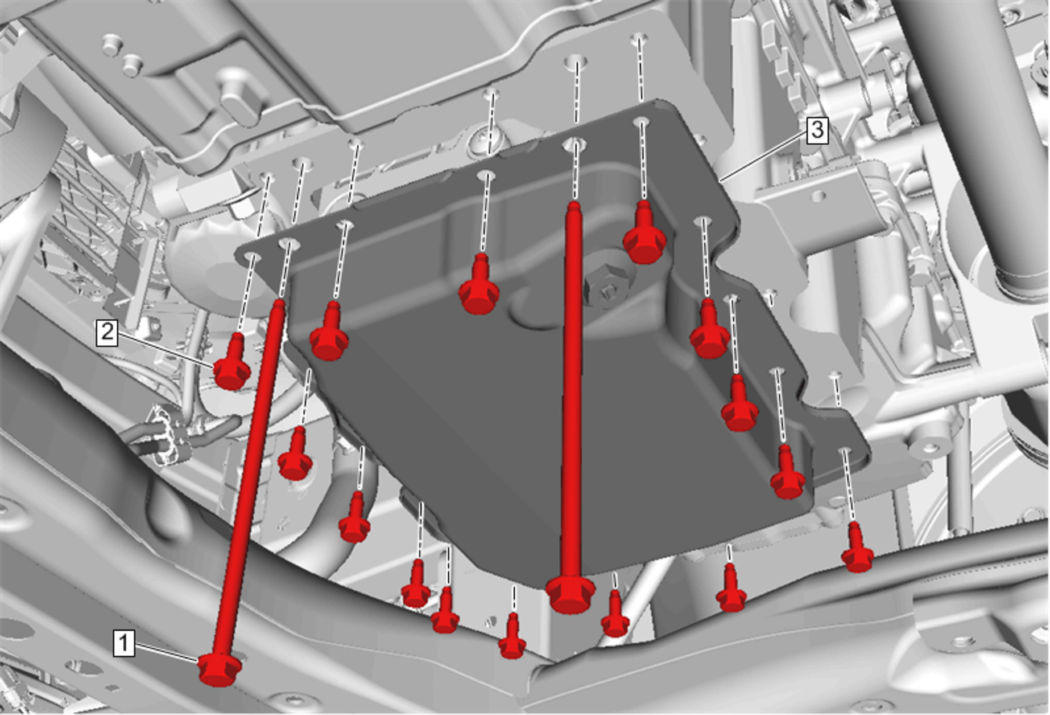

Lower Oil Pan (3) - Remove - Lower Oil Pan Replacement
Courtesy of GENERAL MOTORS COMPANY

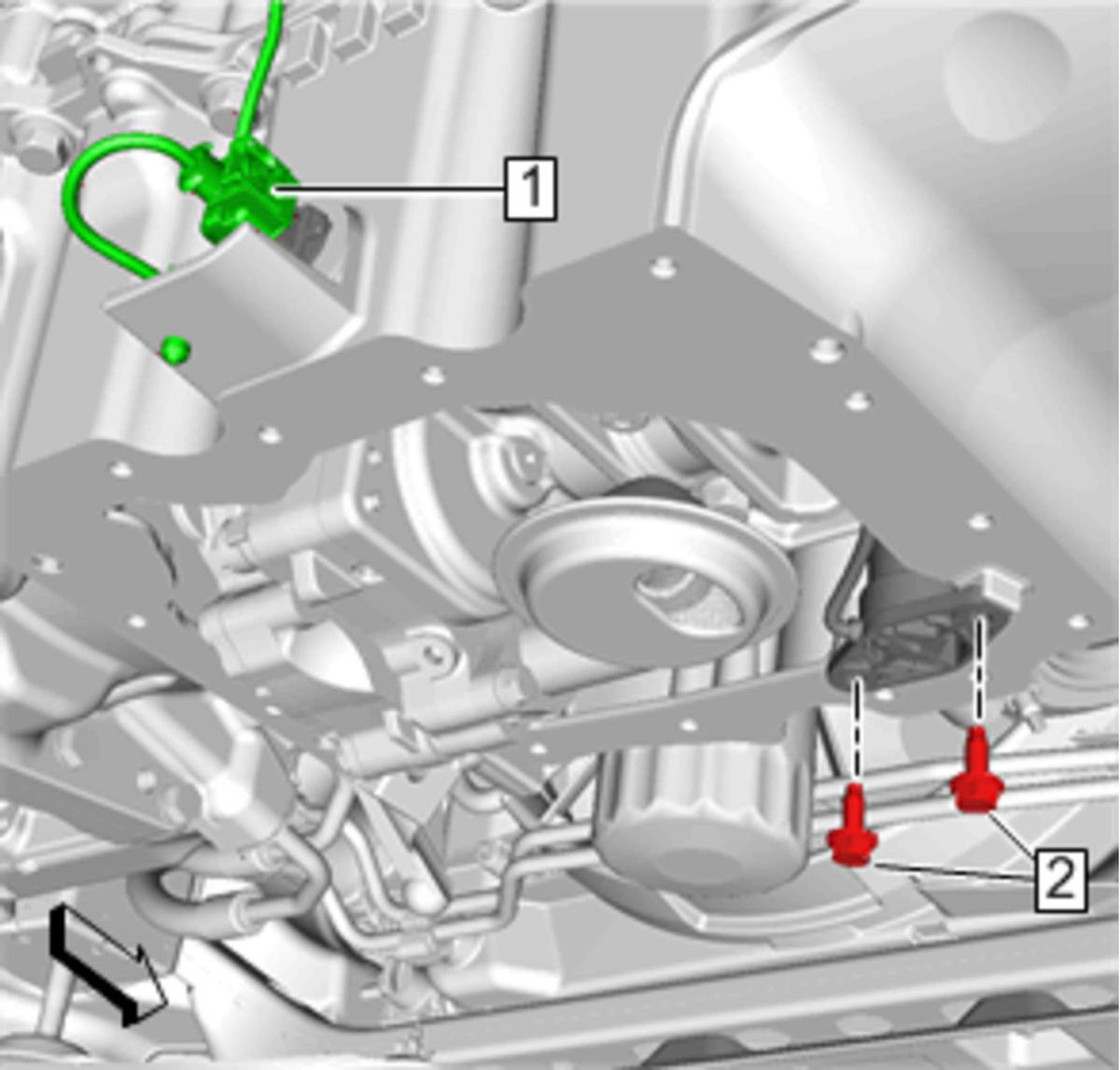

Electrical Connector (1) @ Engine Oil Level Indicator Switch - Disconnect
Engine Oil Level Indicator Switch Bolt (2) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

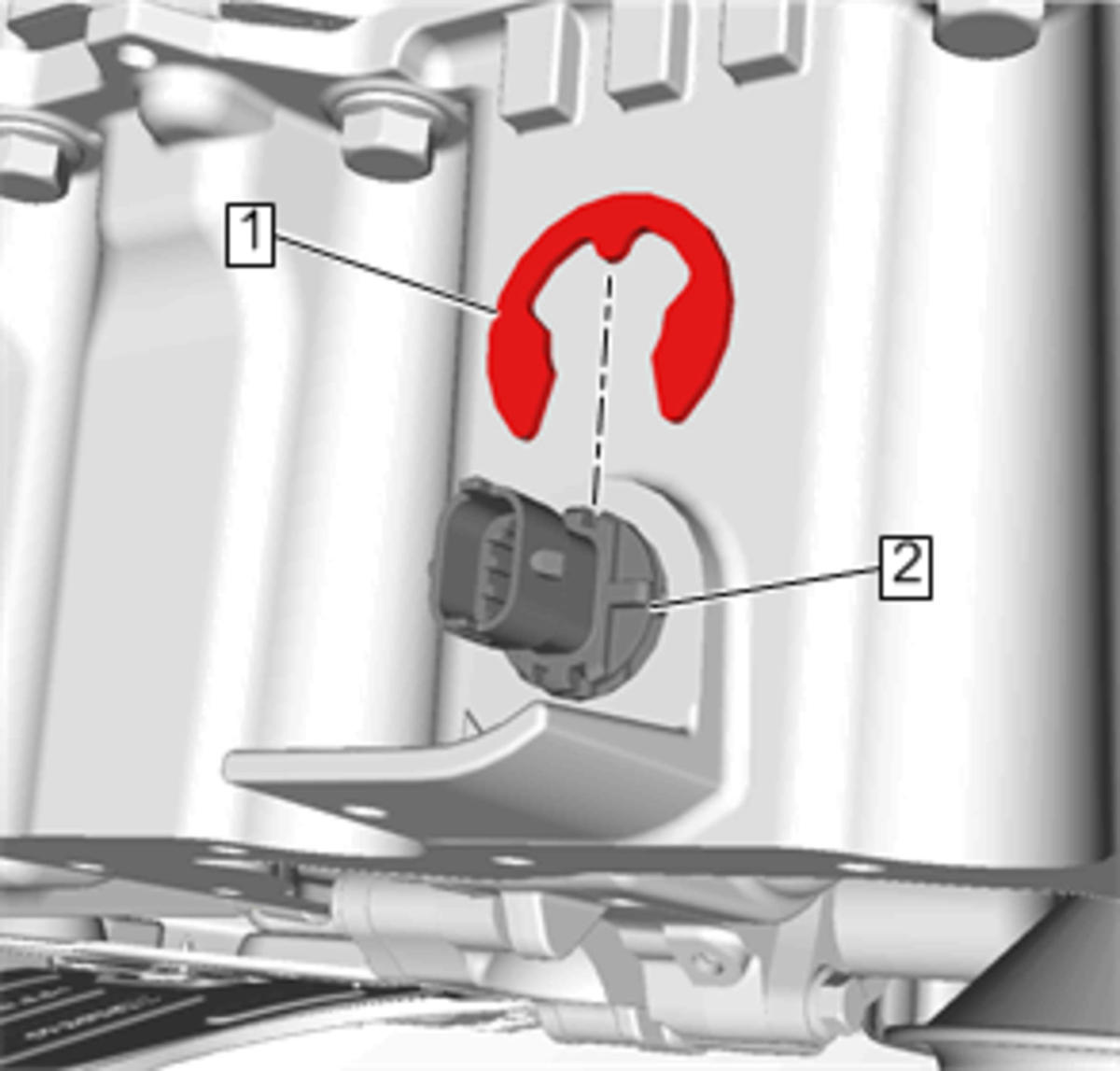

Engine Oil Level Sensor Lead Clip (1) - Remove
Push the engine oil level indicator switch connector (2) through the oil pan to remove.
Courtesy of GENERAL MOTORS COMPANY

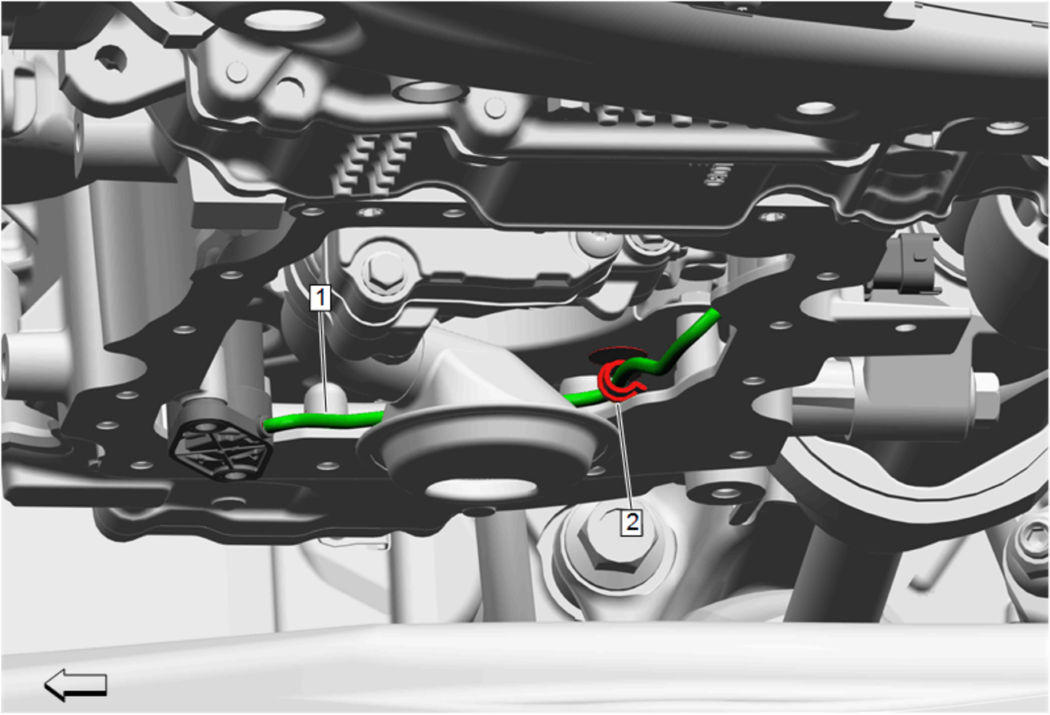

Engine Oil Level Indicator Switch (1) @ Oil Pump Flow Control Solenoid Valve Wire Clip (2) - Separate
Courtesy of GENERAL MOTORS COMPANY

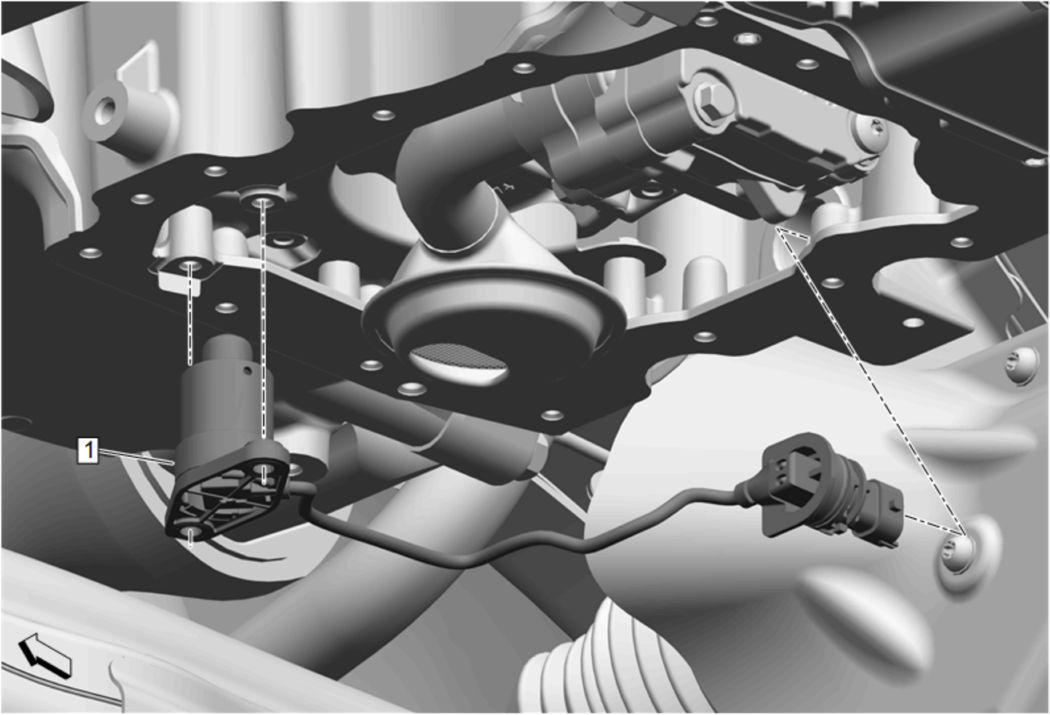

Engine Oil Level Indicator Switch (1) - Remove
