Engine Block Disassemble
WARNING: This page is about a different variant/trim than selected.
Remove the engine oil gallery plugs (1, 2) from the rear of the block.
Remove the engine oil gallery plugs (2, 3, 4) from the left side and front of the block.
- Use a suitable hook tool to catch the clip feature and gently remove the engine block coolant baffle (1).
Remove the engine coolant heater (1), if equipped. Remove the engine coolant heater hole plug (2) if the heater is not present.
Remove the engine oil pressure sensor (1).

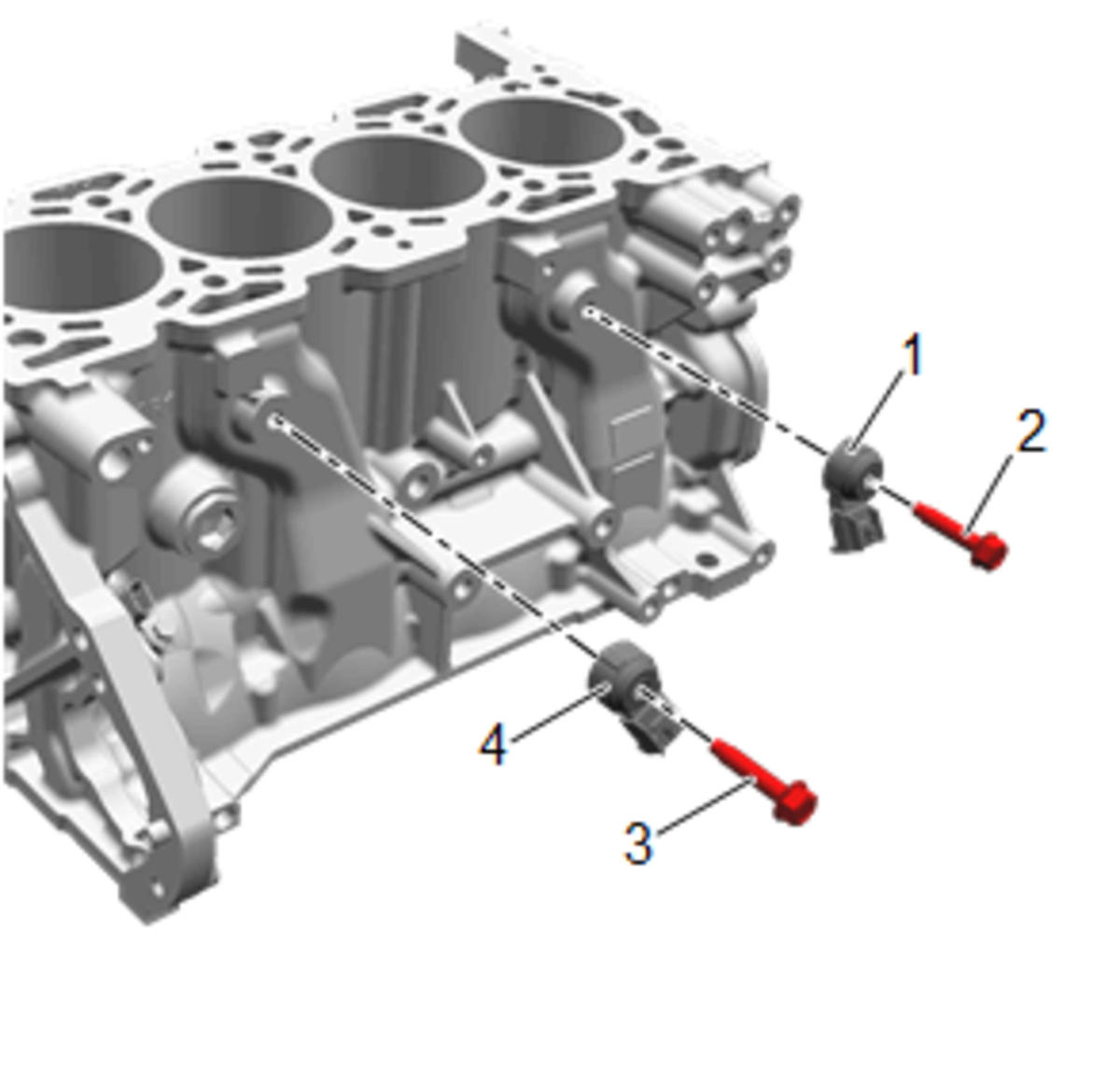

Remove the knock sensors (1, 4) and bolts (2, 3).
Remove the crankshaft position (CKP) sensor (2) and bolt (1).
Loosen the piston oil nozzle assembly bolt (1) and remove the piston oil nozzle assembly (2).
