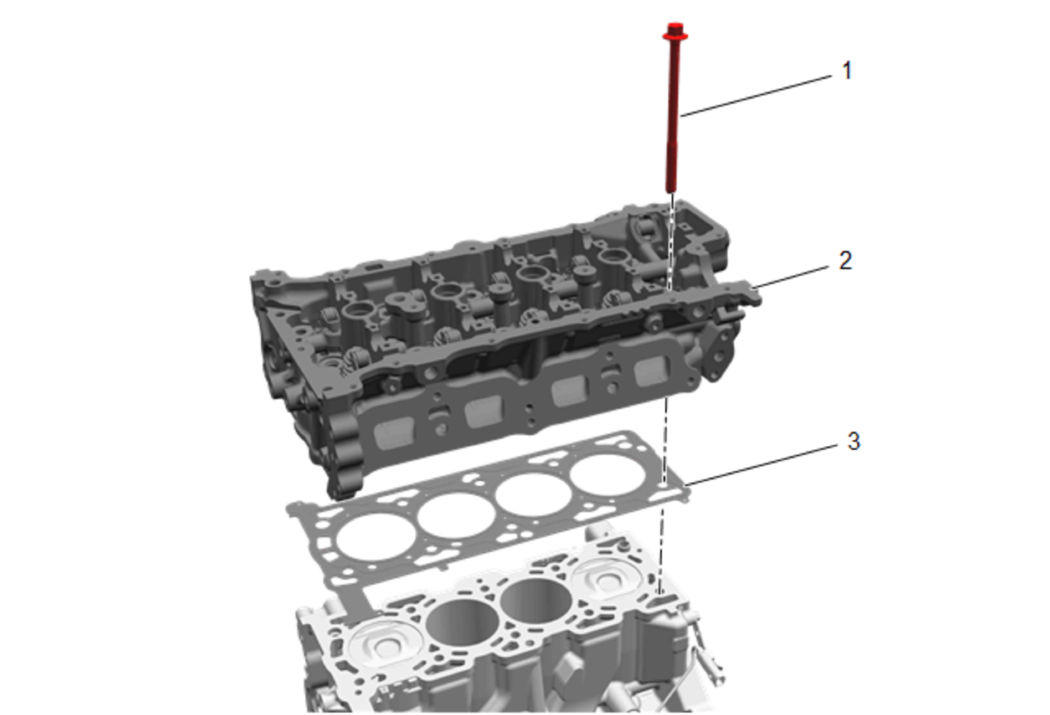

Cylinder Head Removal
WARNING: This page is about a different variant/trim than selected.
 Courtesy of GENERAL MOTORS COMPANY
|
| Callout |
Component Name |
| 1 |
Cylinder Head Bolt (Qty: 10)
|
| 2 |
Cylinder Head
CAUTION:
In order to prevent damage to the valves and injectors during cylinder head removal, set the cylinder head on blocks.
|
| 3 |
Cylinder Head Gasket
NOTE:
Discard the gasket.
|
