Cylinder Head Disassemble
Special Tools
- EN-43963 Valve Spring Compressor (off car)
- EN-46116 Valve Stem Seal Remover/Installer
- EN-50717 Valve Spring Compressor
For equivalent regional tools, refer to Special Tools .

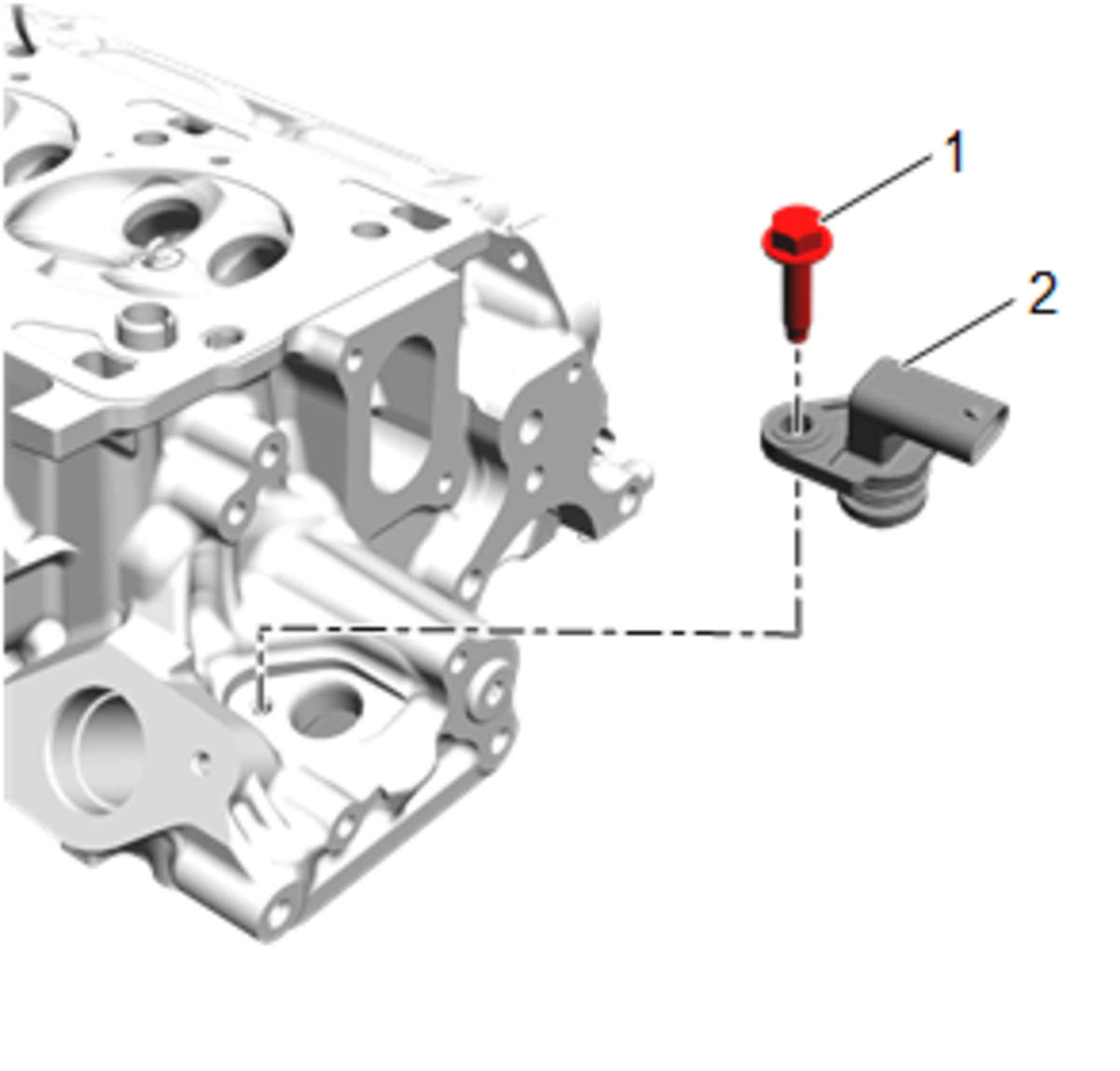

Remove the intake camshaft position sensor (2) and bolt (1).

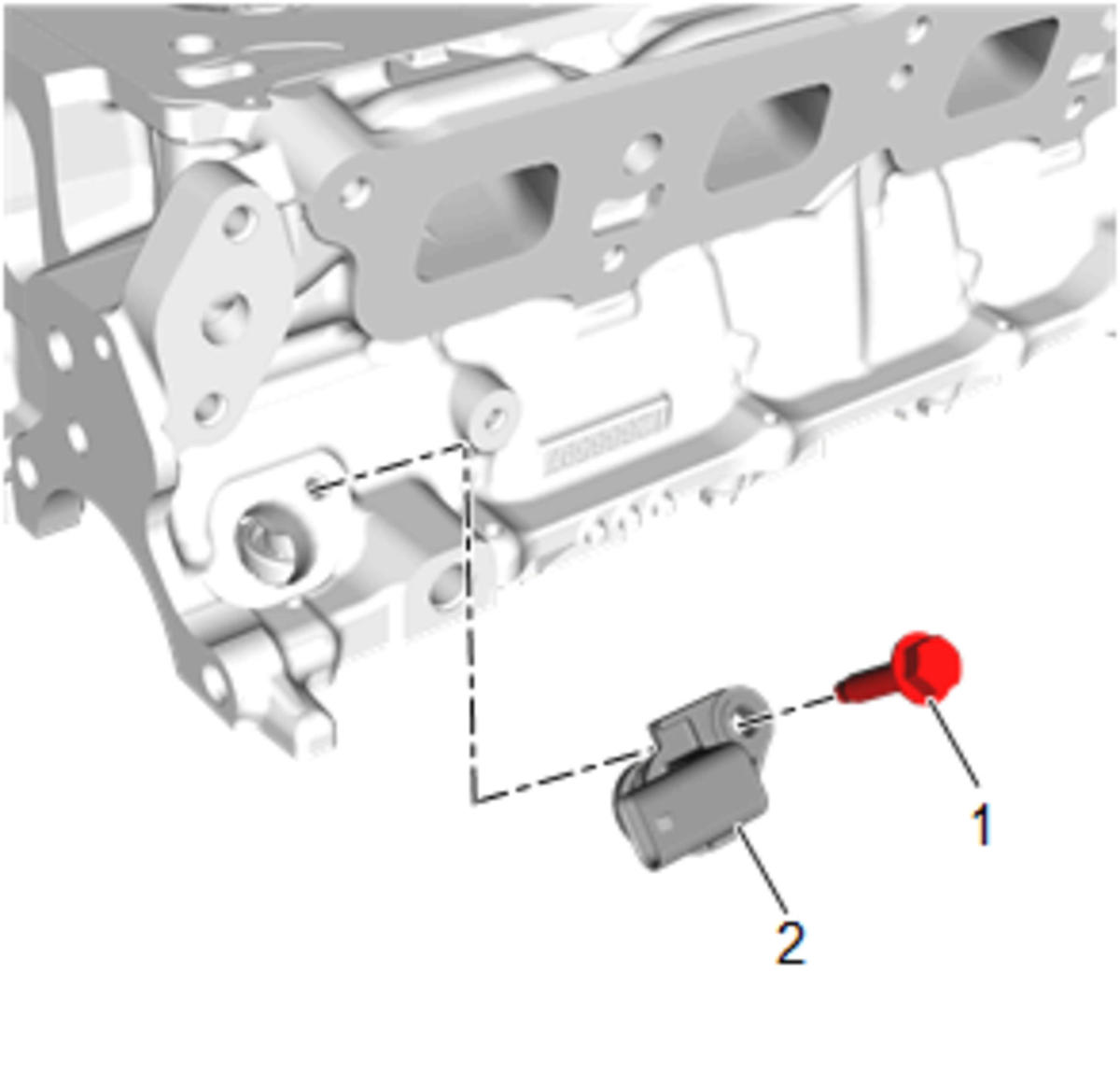

Remove the exhaust camshaft position sensor (2) and bolt (1).
- WARNING:
Compressed valve springs have high tension against the valve spring compressor. Valve springs that are not properly compressed by or released from the valve spring compressor can be ejected from the valve spring compressor with intense force. Use care when compressing or releasing the valve spring with the valve spring compressor and when removing or installing the valve stem keys. Failing to use care may cause personal injury.
CAUTION:Do not compress the valve springs to less than 24.0 mm (0.943 in). Contact between the valve spring retainer and the valve stem oil seal can cause potential valve stem oil seal damage.
NOTE:Ensure that the valve train components are kept together and identified in order for proper installation in their original position.

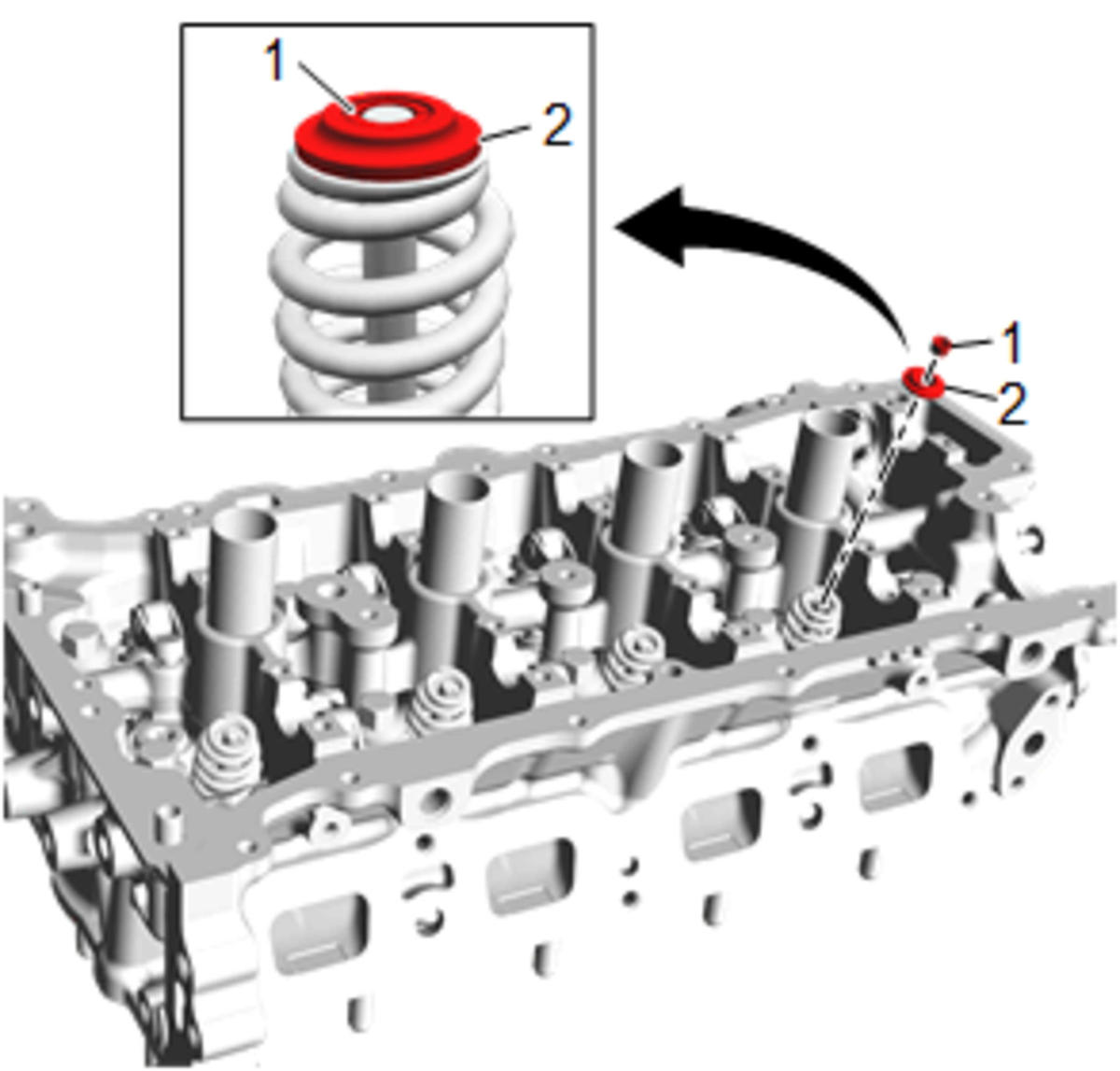

Perform the following procedure to remove the valve keys, springs, and retainers:
- Using the EN-50717 fixture and the EN-43963 compressor adapter, compress the valve spring.
- Remove the valve keys (1).
- Slowly release the compression from the valve spring assembly.
- Remove the retainer (2).

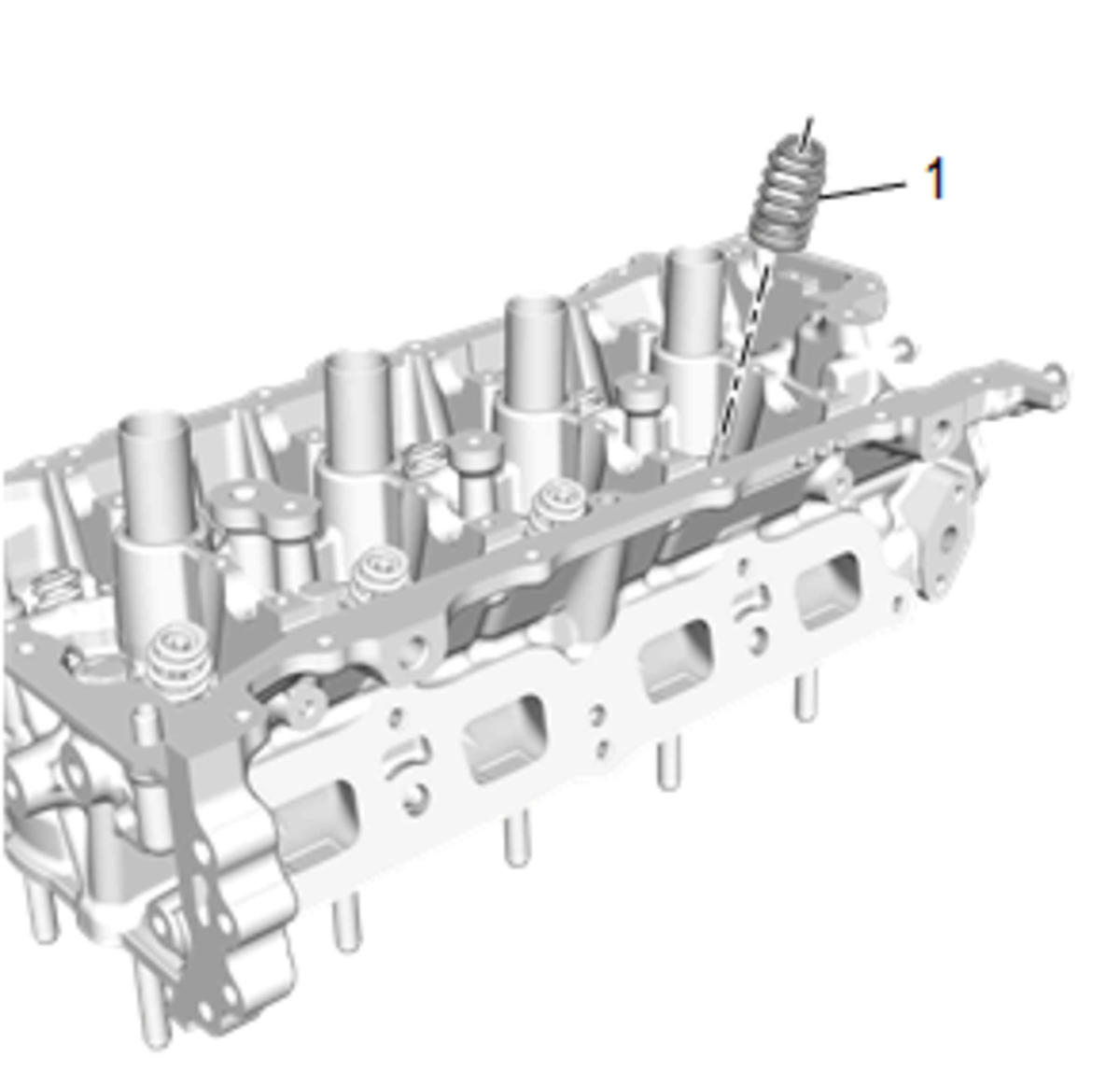

Remove the springs (1).
- CAUTION:
Do not damage the valve guide. Remove any burrs that have formed at the key groove by chamfering the valve stem with an oil stone or a file.

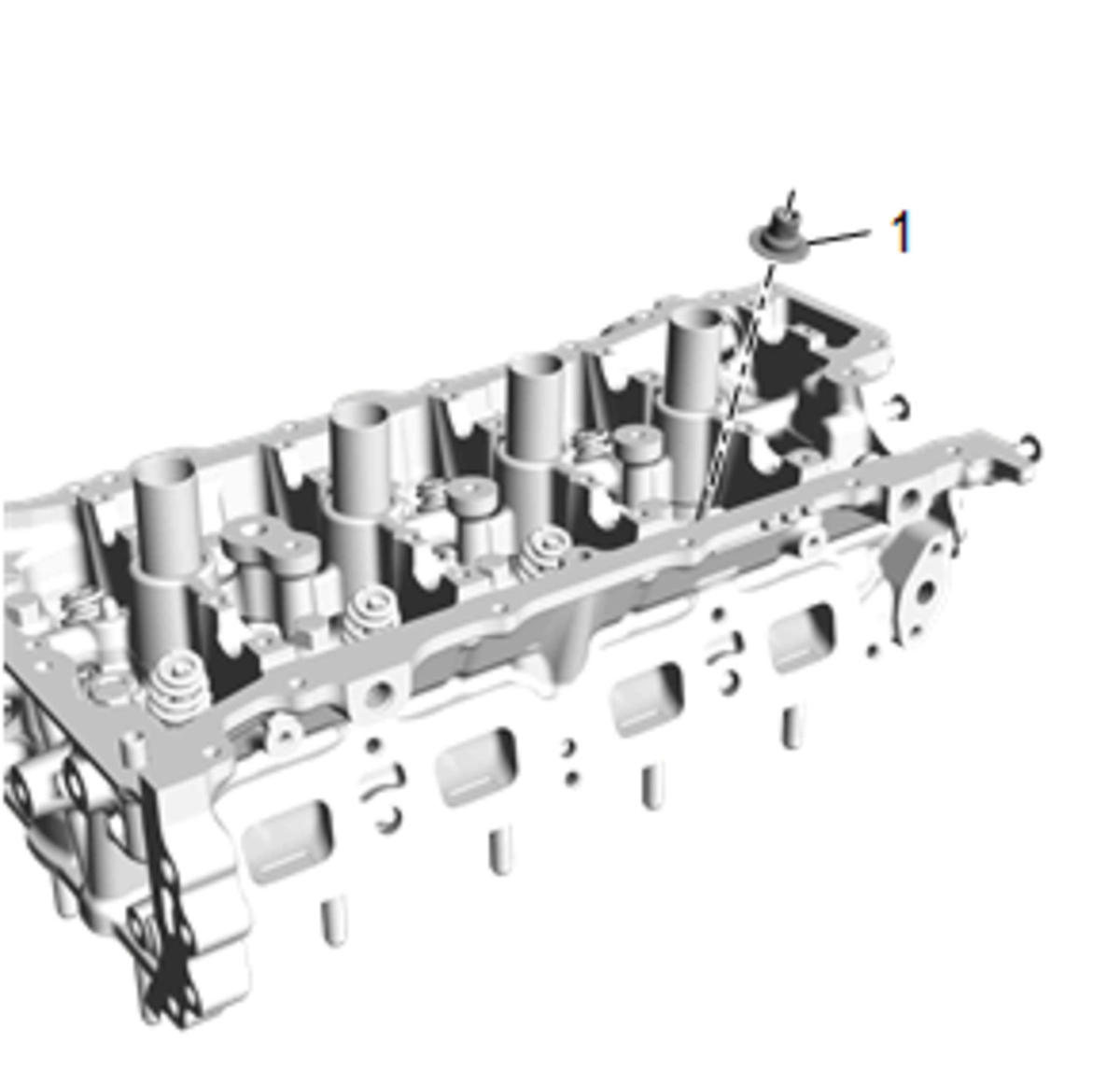

Using EN-46116 remover, remove the valve seals (1). Discard the seals, do not reuse.

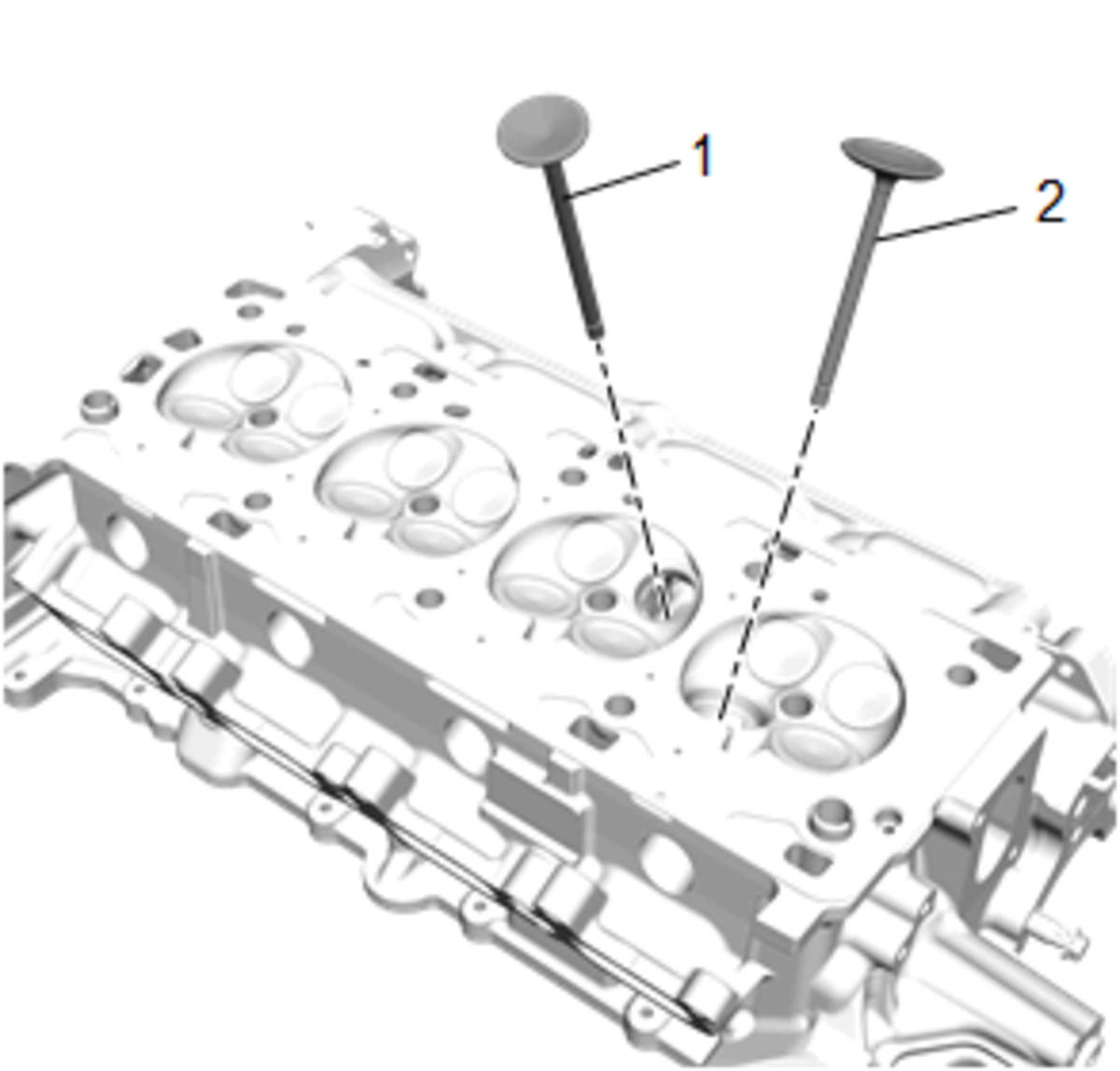

Remove the valves (1, 2).

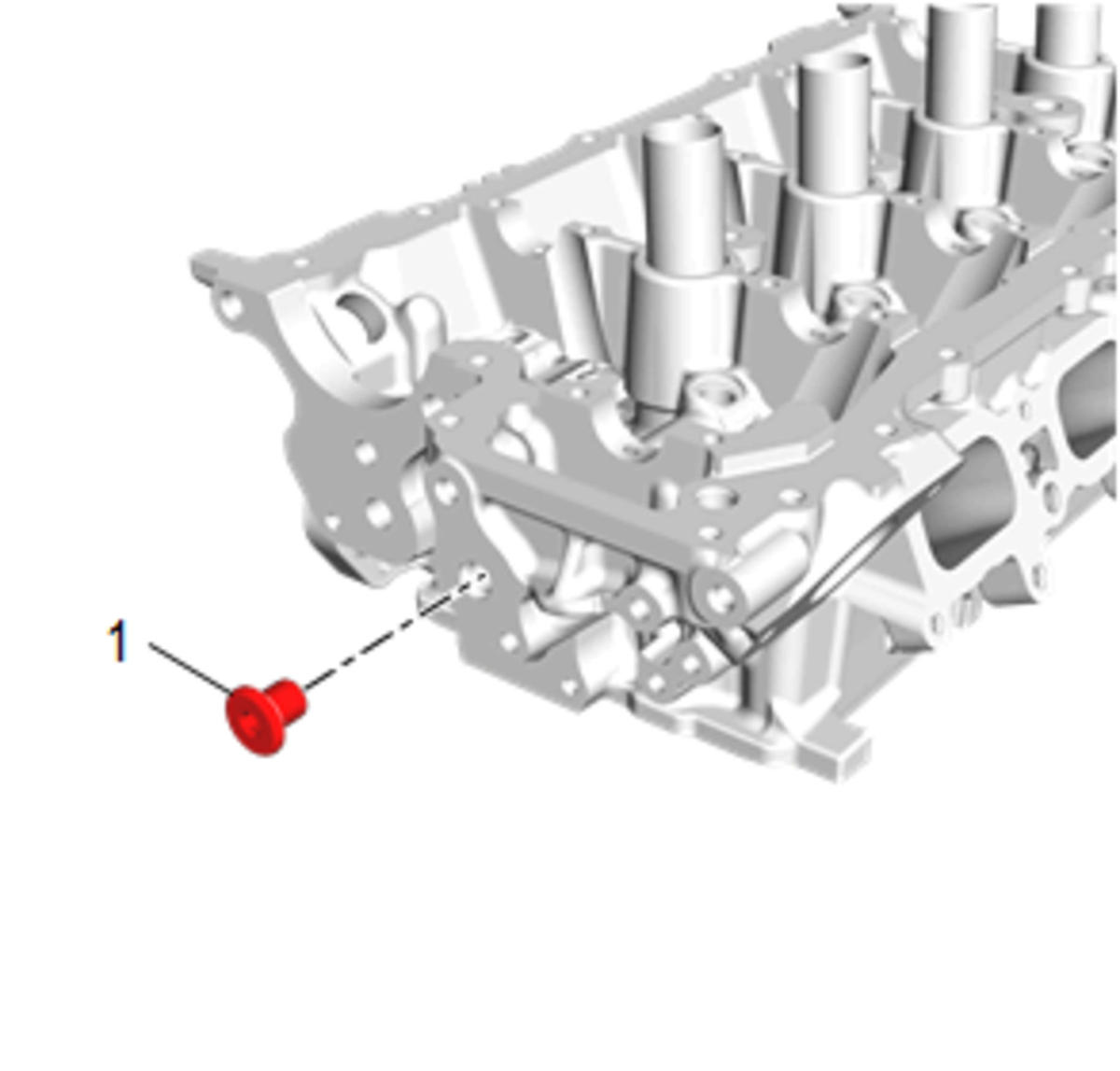

Remove the cylinder head plug (1).

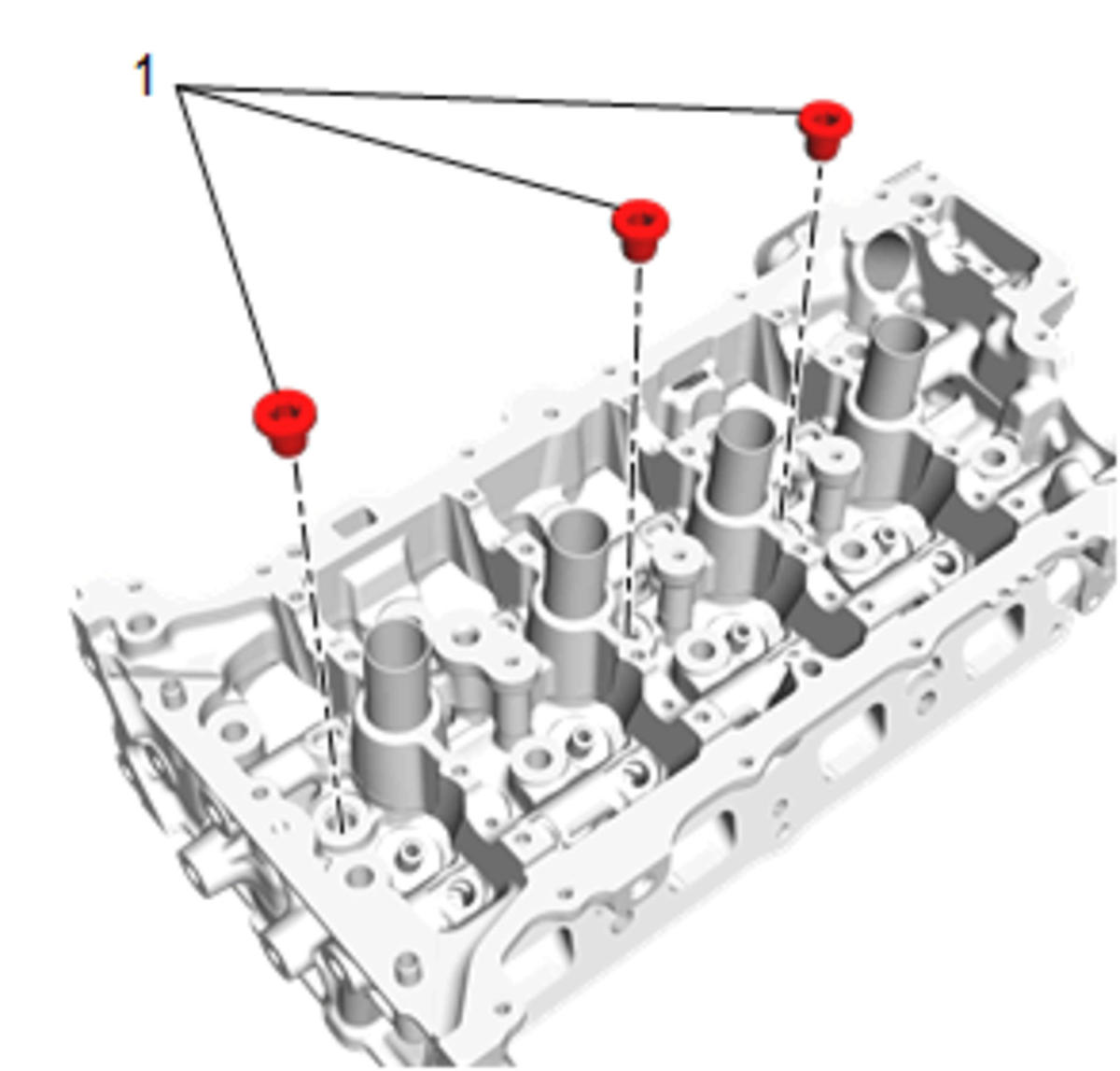

Remove the cylinder head plugs (1).
