Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Automatic Transmission Flex Plate (2) - Remove - Automatic Transmission Flex Plate Replacement
Courtesy of GENERAL MOTORS COMPANY

NOTE:

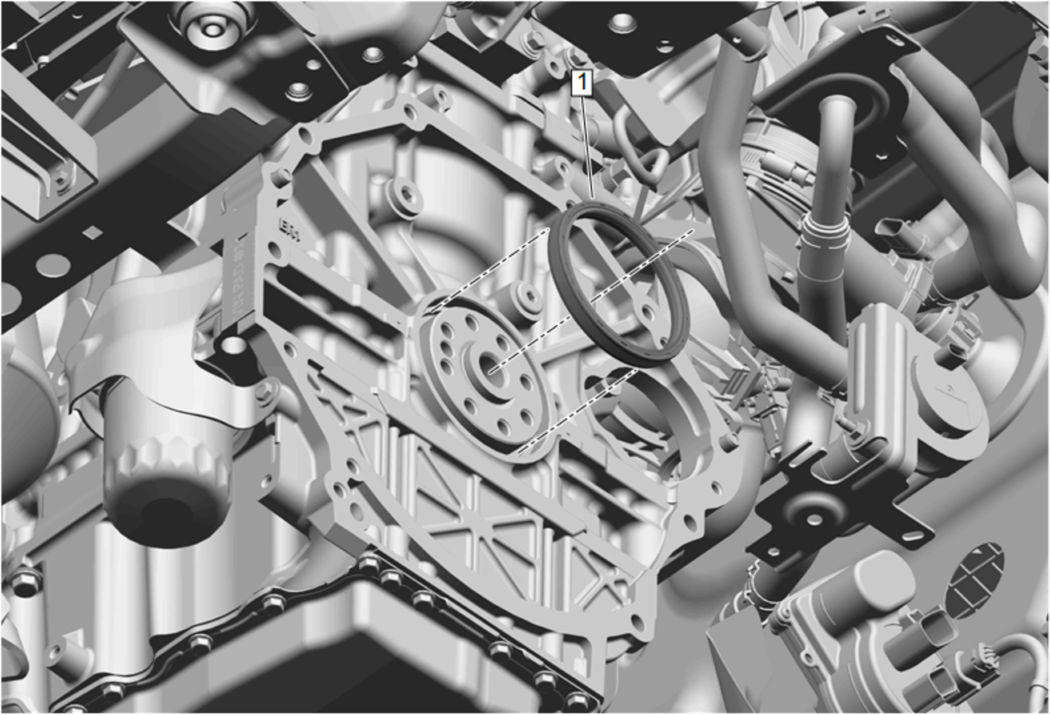

Use a suitable tool to remove the crankshaft rear oil seal (1). Do not damage the outside diameter of the crankshaft or chamber with any tool.

Crankshaft Rear Oil Seal (1) - Remove and DISCARD
