Crankshaft Front Oil Seal Replacement

WARNING: This page is about a different variant/trim than selected.

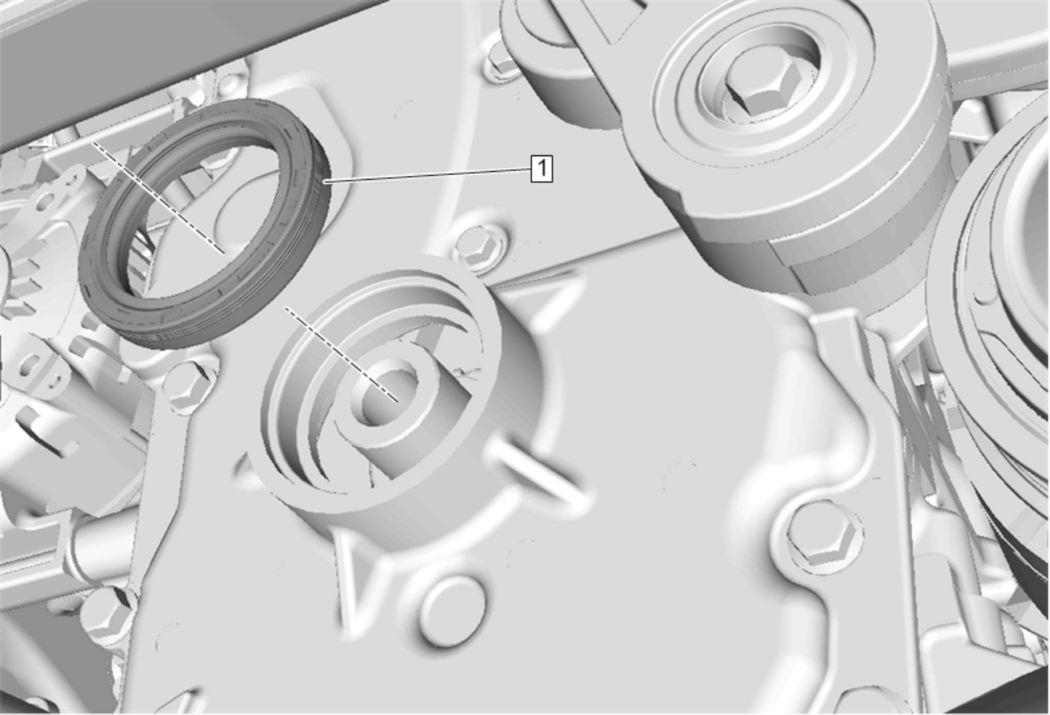

GM4364966Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Crankshaft Balancer Replacement
1 Crankshaft Front Oil Seal
  1. Use a suitable tool to remove the seal.
  2. Use the EN-50820  Front Crankshaft Seal Installer to install the seal.

Special Tools
EN 50820  Front Crankshaft Seal Installer
Equivalent regional tools: Special Tools
