Crankshaft Balancer Removal

Special Tools

• EN-38416-2  Crankshaft Button
• EN-41816  Crankshaft Balancer Remover
• EN-41816-2  Crankshaft End Protector
• EN - 51760  Flywheel Holding Tool

For equivalent regional tools, refer to Special Tools .

1. Courtesy of GENERAL MOTORS COMPANY

   To prevent crankshaft rotation, install EN-51760  holding tool (2) and starter motor bolts (1) at the starter motor location and engaging the flywheel.

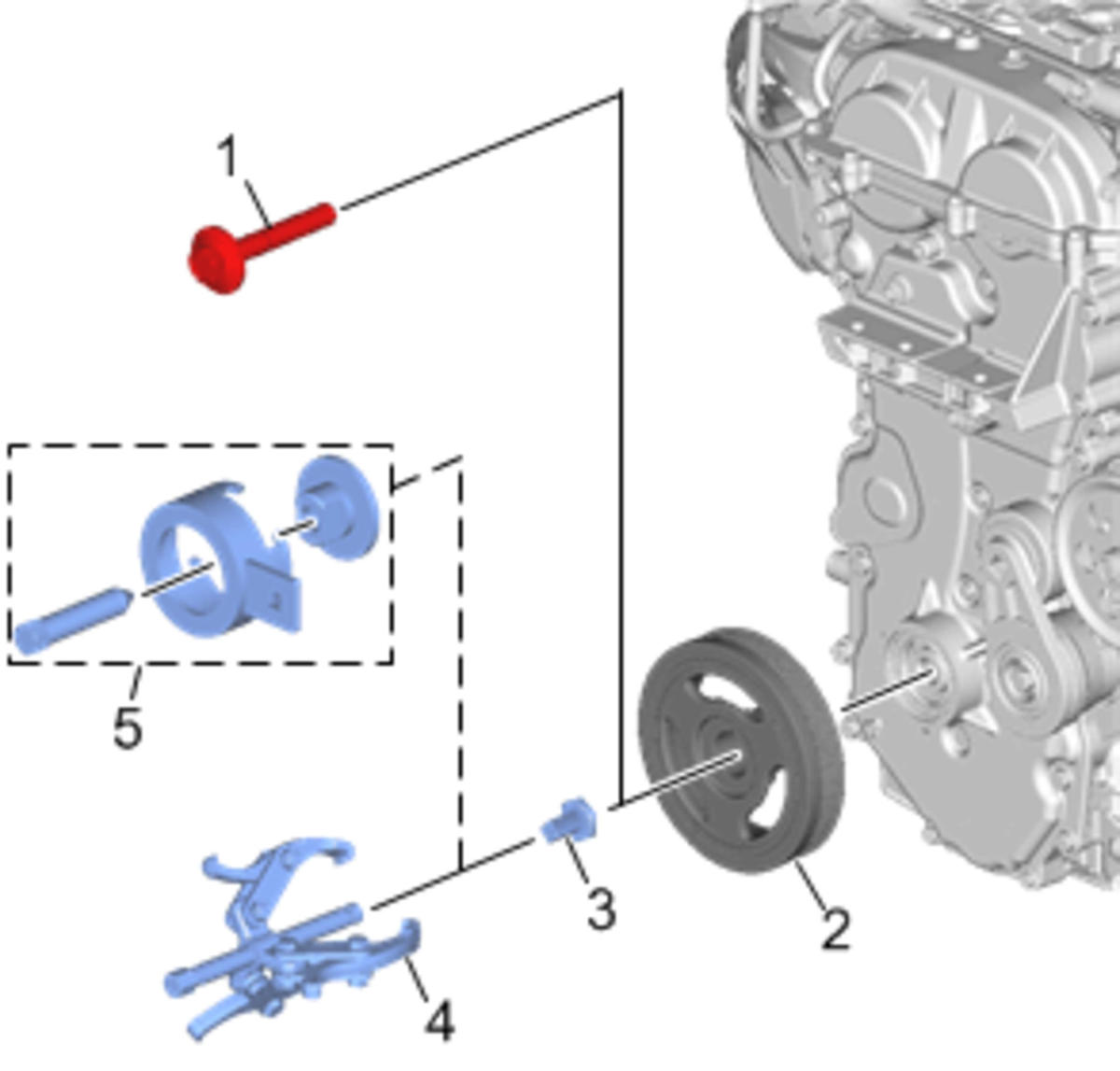

2. Courtesy of GENERAL MOTORS COMPANY

   Remove and discard the crankshaft balancer bolt (1) and washer.

NOTE:

When necessary, EN-38416-2  button can be used instead of EN-41816-2  protector.

3. Install EN-41816-2  protector (3) to protect the crankshaft end during balancer removal.
NOTE:

EN-51577-1  remover (5) can be used alternatively for EN-41816  remover (4).

4. Using EN-41816  remover (4), remove the balancer (2).
5. Remove the special tools.
